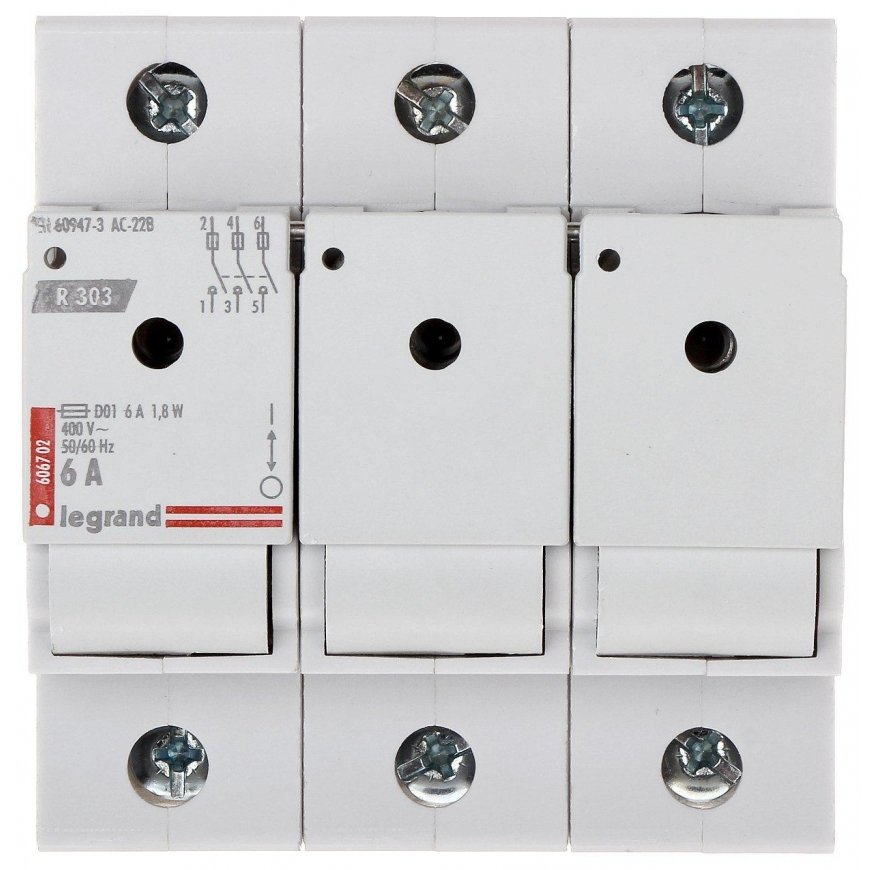

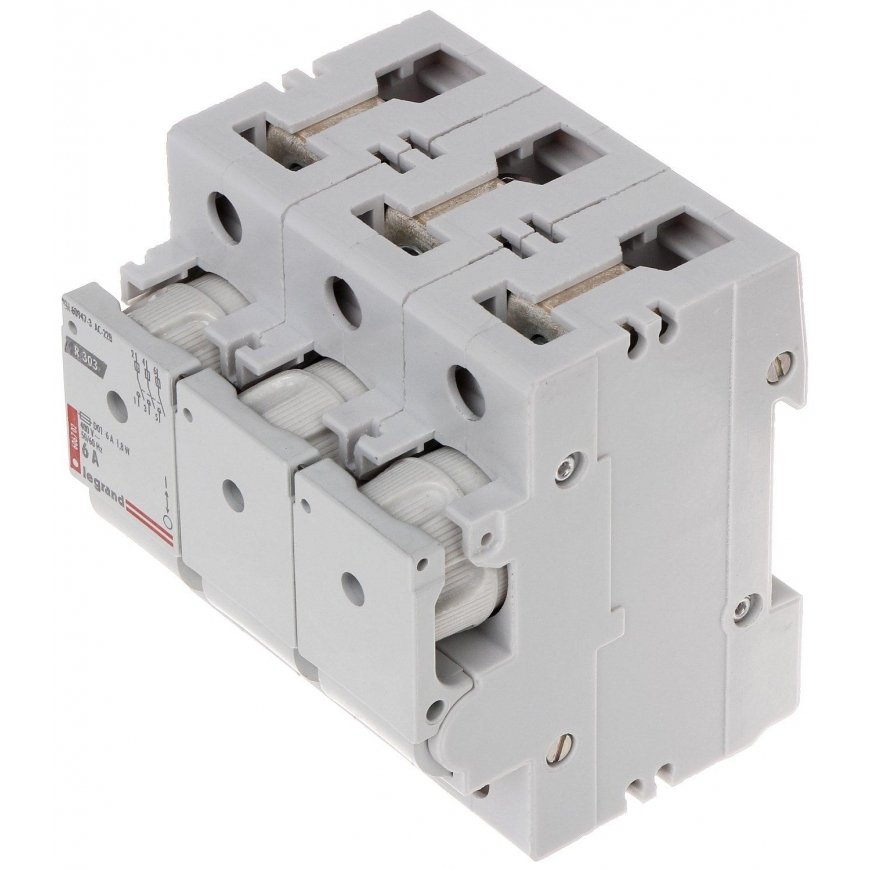

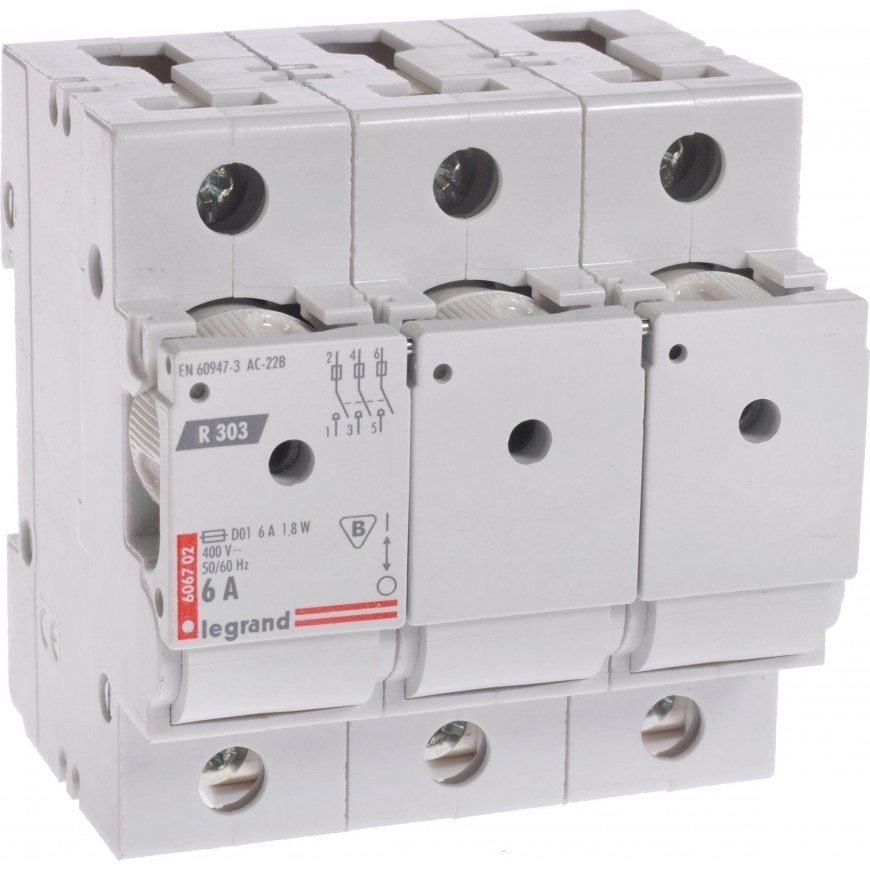

FUSE SWITCH LE-606702 THREE-PHASE 6 A D01 LEGRAND
284,84 €
Kuumakse alates 8.23 €
2292681 3245066067025
Toodet pole enam laos
Kauba vastu huvi?
Isolated circuit breakers with fused fuse inserts, this is a two-function device in one device - an isolated circuit breaker and a surge protector operating through fused fuse inserts.

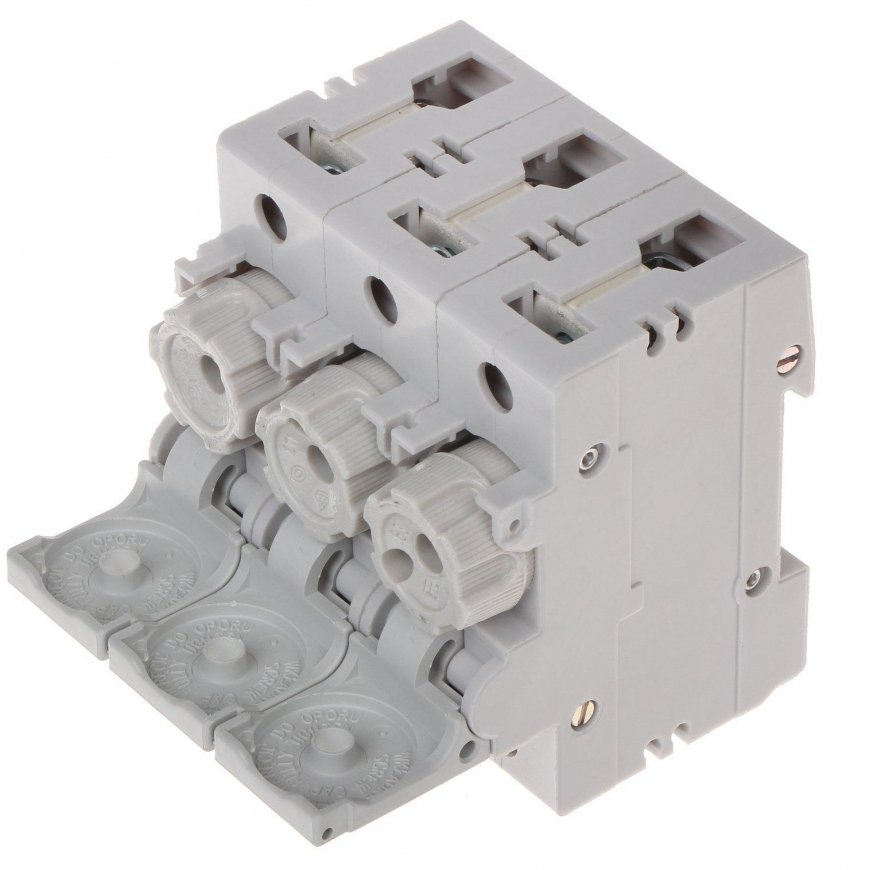

The devices protect the electrical installation from short circuits and overloads, and when the insert is removed, a visible insulation gap is ensured.
The circuit breaker LE-606702 is intended for installation on supports TH-35.
| Device Type : | Three-phase |
| Nominal current : | 6 A |
| Number of poles : | 3 |
| Nominal voltage : | 400 V AC |
| Rated insulation voltage : | 500 V |
| Rated withstand impulse voltage : | 6000 V |
| Description of fuse : | gL/gG |
| Type (size) : | D01 |
| Rated short-circuit duration : | 50000 A AC |

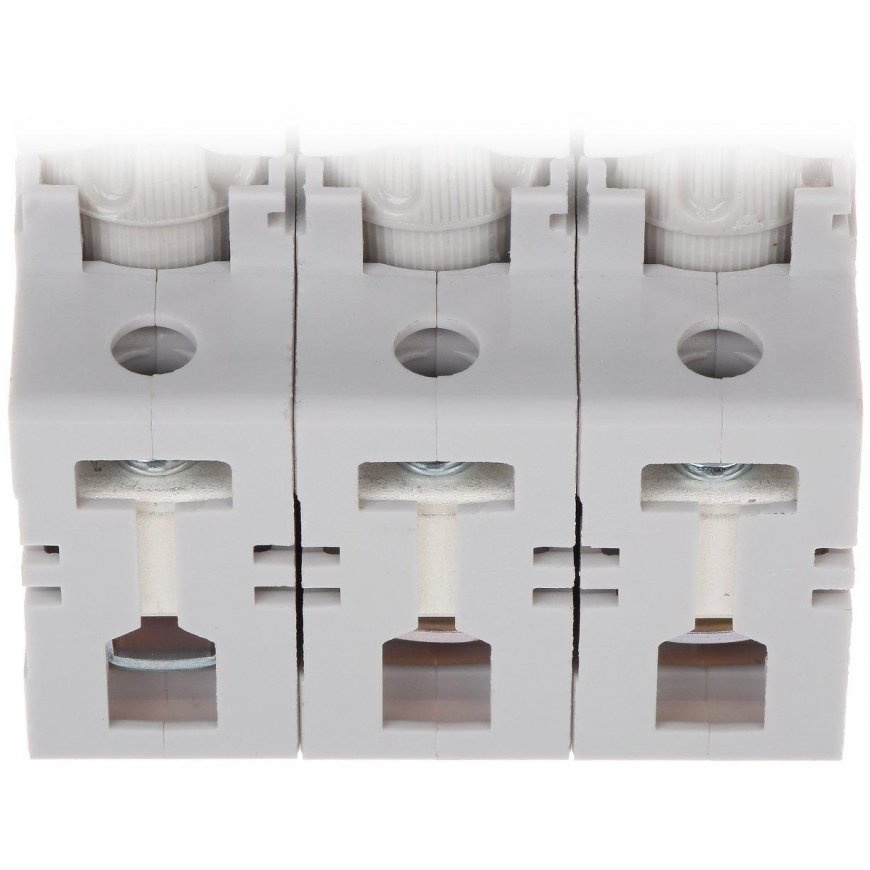

| Type of connectors : | cable clamps |
| Wire cross-section : | 2.5 ... 25 mm² |
| Environmental class : | II |
| Body : | Plastic, installation on support TH-35 |
| Width in modules 17.5 mm : | 4.5 |
| Working temperature : | -26 °C ... 60 °C |
| Weight : | 0.51 kg |
| Dimensions : | 83 x 70.3 x 79.5 mm |
| Manufacturer / Brand : | LEGRAND |
| Warranty : | 2 years |
