Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

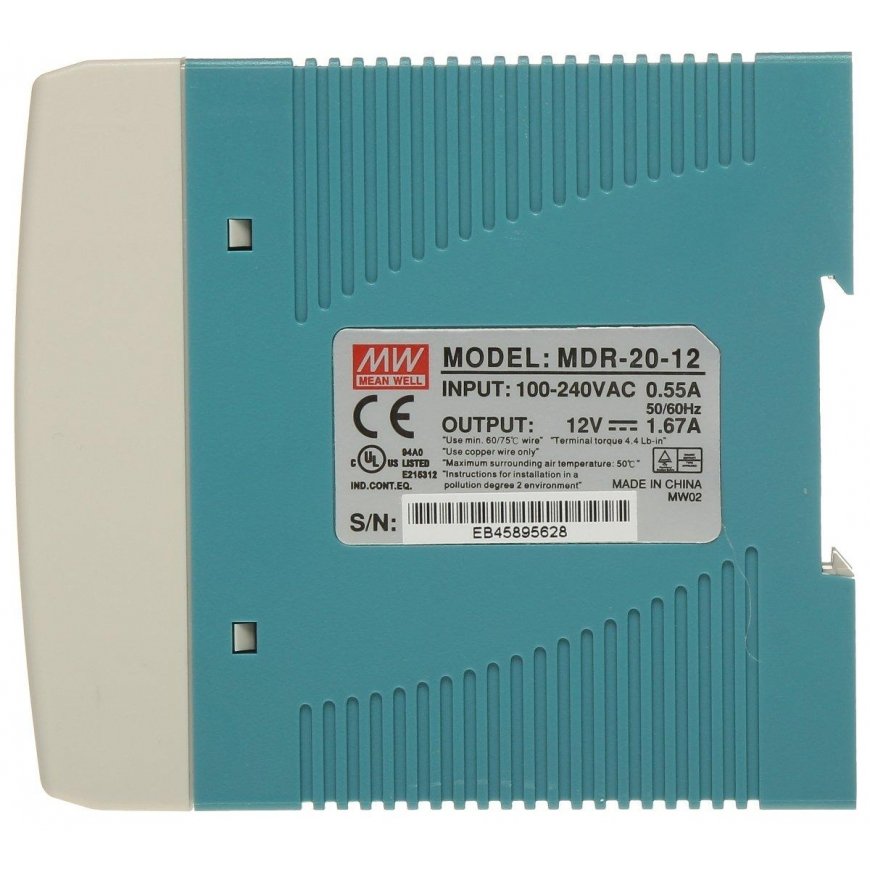

Array PULSE POWER SUPPLY MDR-20-12
28,35 €
2284943 MDR-20-12
5901643191627
Toodet pole enam laos
Kauba vastu huvi?
Impulse power supply, installed on TS35/7.5 or 15 DIN rail, resistant to high working temperatures (up to 70°C).
| Power supply type : | Impulsive |
| Supply voltage : | 100 ... 240 V AC |
| Output voltage : | 12V DC |
| Output voltage regulation : | 10.8 ... 13.2 V |
| Voltage tolerance : | ± 1% |
| Power supply current capacity : | 1.67 A |
| Power supply : | 20W |
| Number of outputs : | 1 pc. |
| Efficiency : | 80% |
| Body Type : | DIN |
| MTBF (mean time between failures) : | 236900 hours |
| Vibration resistance : | IEC60068-2-6, 10 ... 500 Hz max. 2G for 90 minutes |
| Protective measures : | |
| Operating temperature / relative humidity : | -20 °C ... 70 °C / < 90 % |
| Weight : | 0.15 kg |

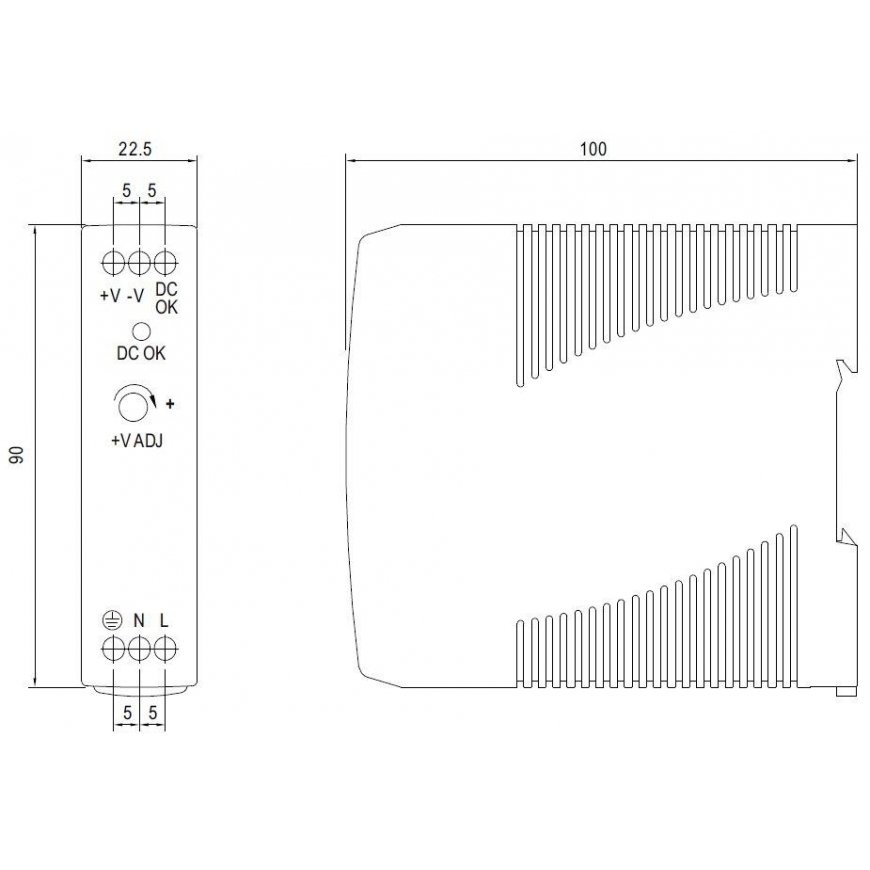

| Dimensions : | 22.5 x 100 x 90 mm |
| Warranty : | 2 years |
