Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

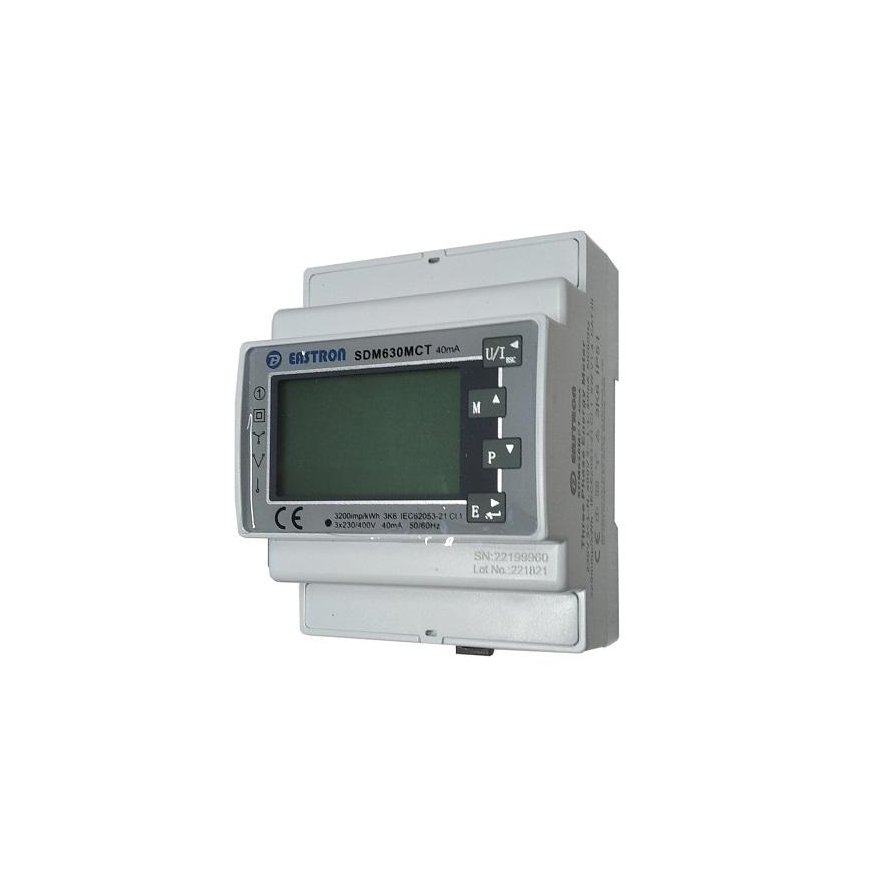

PV smart meter GROWATT TPMCTE100A, 100A
239.00 €
Kuumakse alates 7,05 €
2255693 NV820351
9990000820351
Tarneaeg 5-8 t.p.
Kauba vastu huvi?
Kõik toote kohta
PV smart electricity meter 100A, three-phase, with RS485, Modbus, 3P4WFeatures:
The smart meter is designed for monitoring the consumption of solar energy.
Dynamic limitation of the energy produced by the inverter for supply to electrical networks.
Compatible with Growatt PV inverters.
Class1 measurement accuracy.
With LCD screen.
The smart meter is easy to mount on a Din rail.
Technical data:
Input voltage: AC 230/400V.
LL voltage: AC 173~480V.
LN voltage: AC 100~289V.
Number of phases: 3.
Current: 100A.
Frequency: 50/60Hz.
Accuracy class: class 1 (voltage/current 0.5%, power 1%, frequency 0.2%).
Interface: RS485.
Communication transmission speed 9600 bit/s.
Network protocol: Modbus RTU.
Installation: on DIN rail 35mm.
Dimensions: 95.5x72x65 mm.
Safety class: IP51.
Operating temperature: -25°C to 55°C.
Operating humidity: 0-90% non-condensing.
Weight: 280g.
Color: white.
Certificates: CE.
Power consumption: 2W.
RS485 cable length: 15m.
Warranty: 24 months
Download specification TPMCTE.pdf
