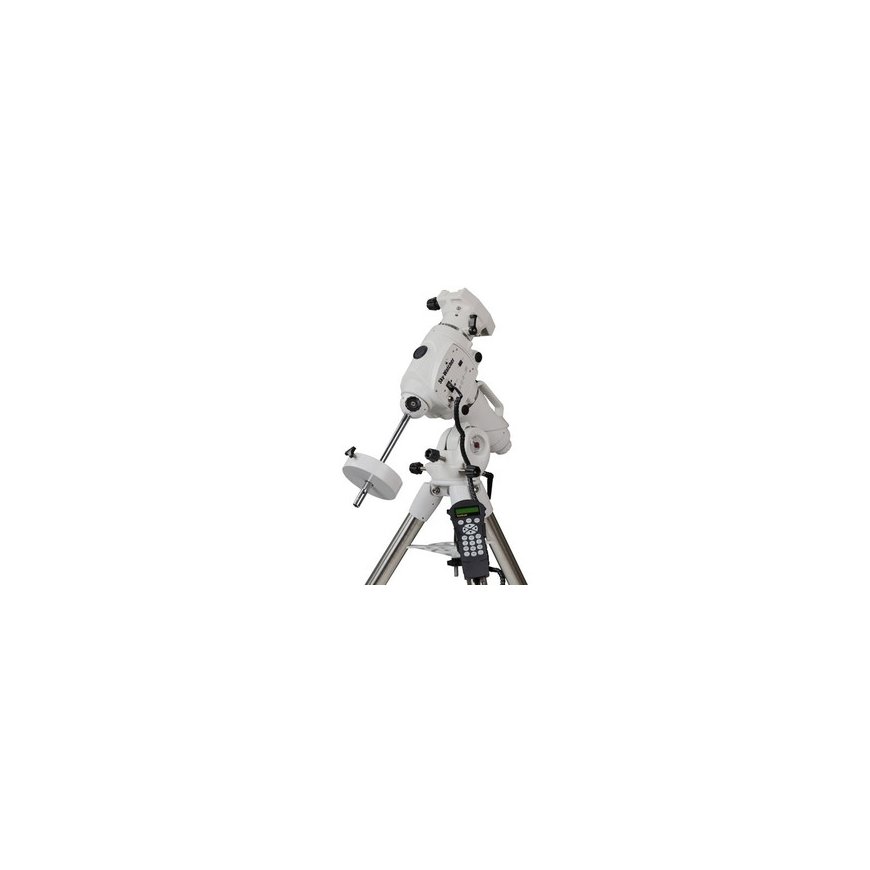

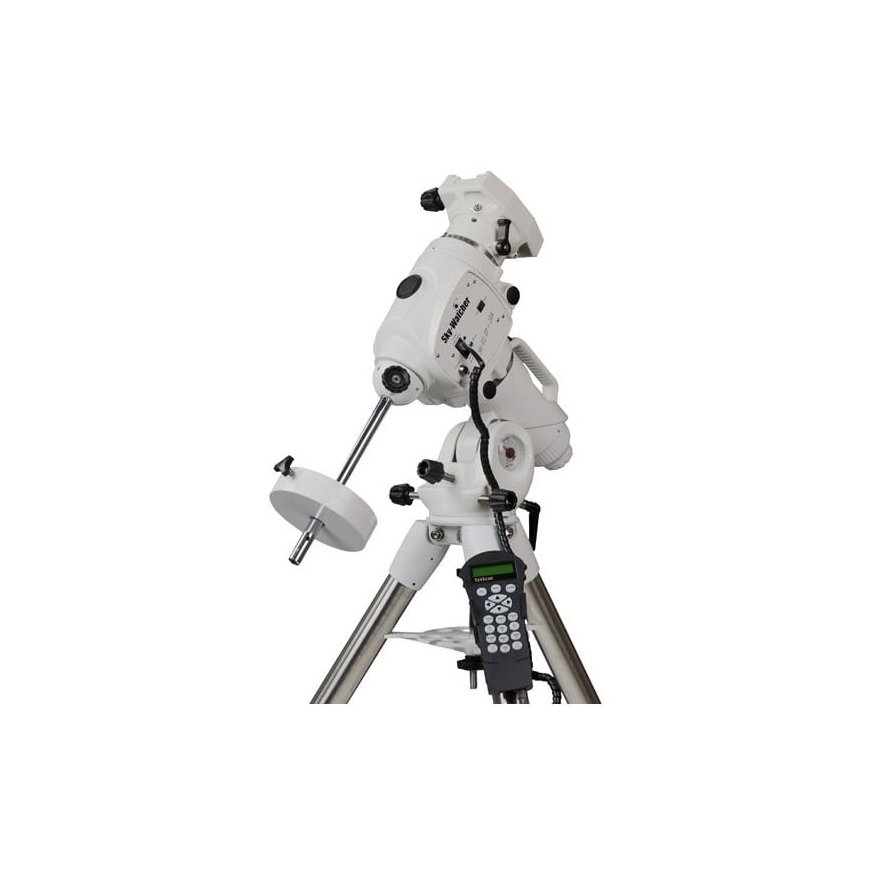

Mount SkyWatcher EQ6-R PRO Synscan GoTo
2 399.00 €
Kuumakse alates 62,67 €
1788908 6970456091010
Tarneaeg 6-10 t.p.
Kauba vastu huvi?
Kõik toote kohta
EQ6-R PRO Synscan - a new legend was born!
The new EQ6-R PRO Synscan computerized GoTo mount is an example of a modern revival of the legendary predecessor EQ6 PRO. The modern design and features of the EQ6-R PRO will pleasantly surprise serious astrophotography enthusiasts with the following features:
► Increased load capacity up to 20 kg for astrophotography

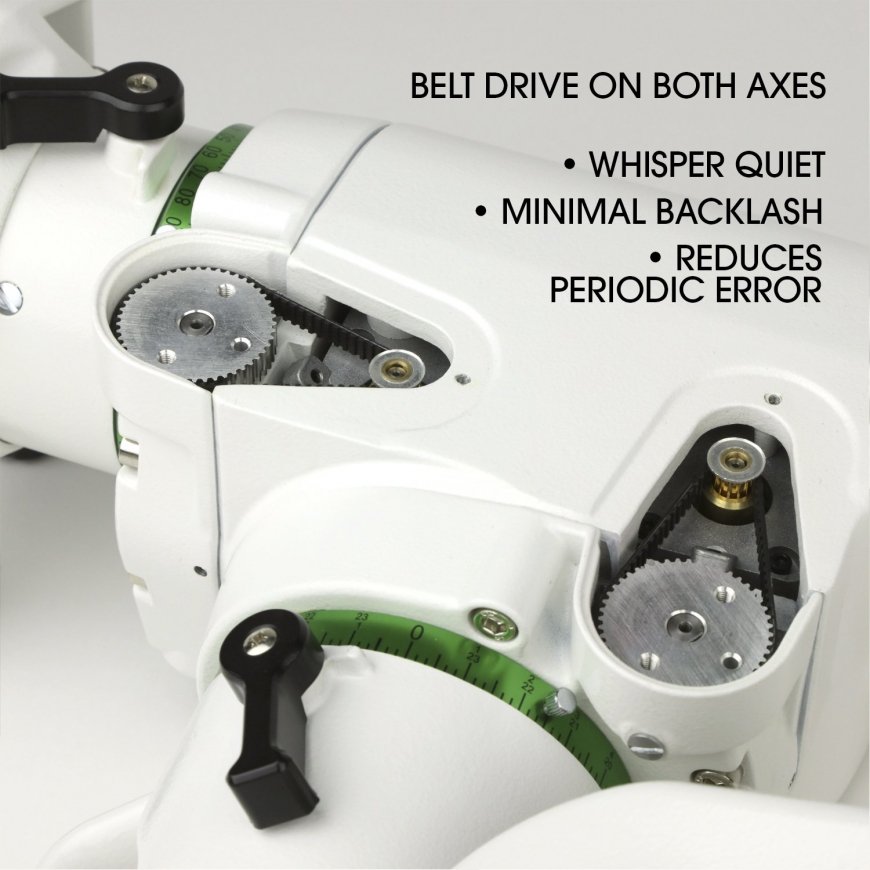

► Synchronous belt drive, which reduced the technical gap of the drive to a minimum. The installation has become quieter, smoother and more accurate. I have more torque
► Improved latitude setting adjustment, has a wider range of latitudes
► Equipped with camera shutter control port
► Integrated carrying handle for more convenient transport of the installation
Complete with a hand-held computerized Synscan control panel, allowing you to control the rig with the touch of a button. A user-friendly menu allows you to automatically select one of 42,000+ night sky objects to admire and photograph.
Technical characteristics:
Name: EQ6-R PRO Synscan GoTo
Mounting Type: German Equatorial (Equatorial)
Maximum payload (not including counterweights): 20 kg (for astrophotography)
Latitude adjustment range: 5º to 65º
Azimuth adjustment range: approximately 9º
Weight (without tripod): 17.3 kg
Counterweights: 2 x 5 kg
Tripod: 2 inch stainless steel, 7.5 kg weight
Counterweight bar: 18mm diameter, length 240mm + 180mm
Power requirement: DC11~16V, 4A
Motors: 1.8º hybrid stepper motors
Gear: 180: 1 worm gear + 48:12 belt drive + 64 step / 1.8º step motor
Gear ratio: 720
Resolution: 9216000 positions/1 revolution, Approx. 0.14 arcseconds
Maximum rotation speed: 4.2 degrees/sec
Observation modes: Star, Solar system, Moon
Tracking Mode: Equatorial
Guide speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X
PEC (periodic error compensation): 100 segments, continuous PEC (PPEC)
Remote control: SynScan
Database: 42000+ objects
Catalogs of Celestial Objects: Messier, NGC, IC, SAO, Caldwell, Binaries, Variables, Star Names and Planets
Tilt accuracy: up to 5 arcseconds (RMS)
Equipped with camera shutter control port
Double 45mm / 75mm telescope bar (Dovetail) holder
Polariscope
Compensation of the technical gap of the drive
Compensation of periodic errors
Convenient PC interface: compatible with ASCOM, Nexstar-5i protocols and command sets
Control panel contrast, LCD lighting and signal volume are adjustable.
