JUNCTION BOX GELBOX SUPER-BLOCK-IN-OUTW IP68 RayTech
3625964 SUPER-BLOCK-IN-OUTW
8050040862955
Piegāde 1-14 d.d.

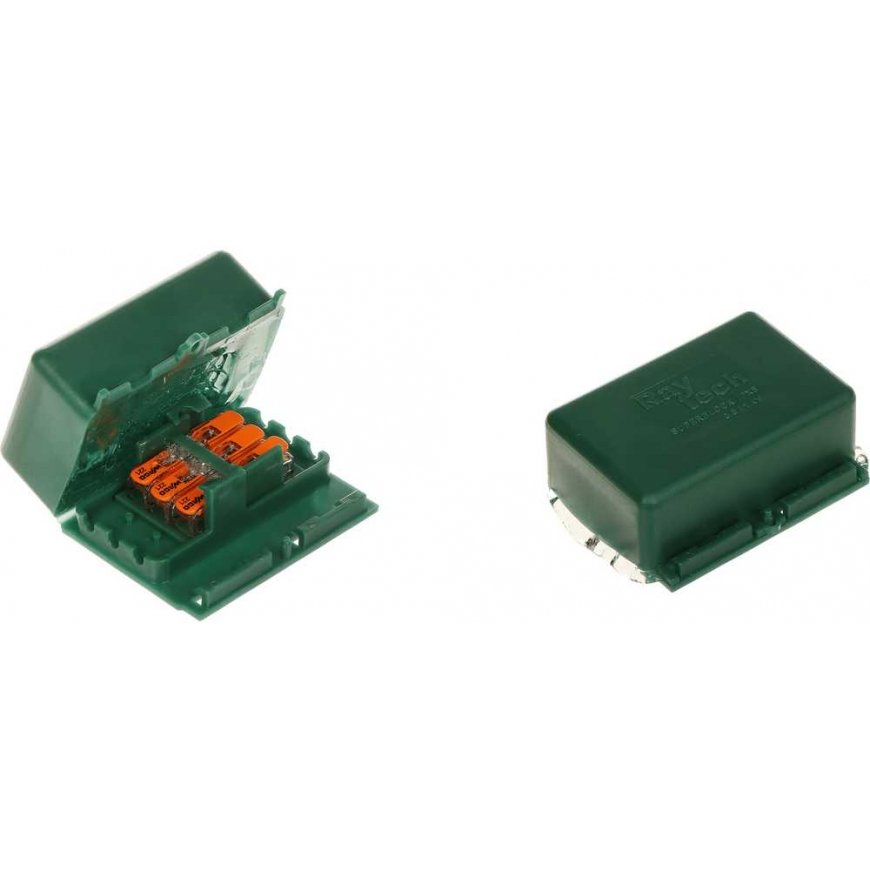

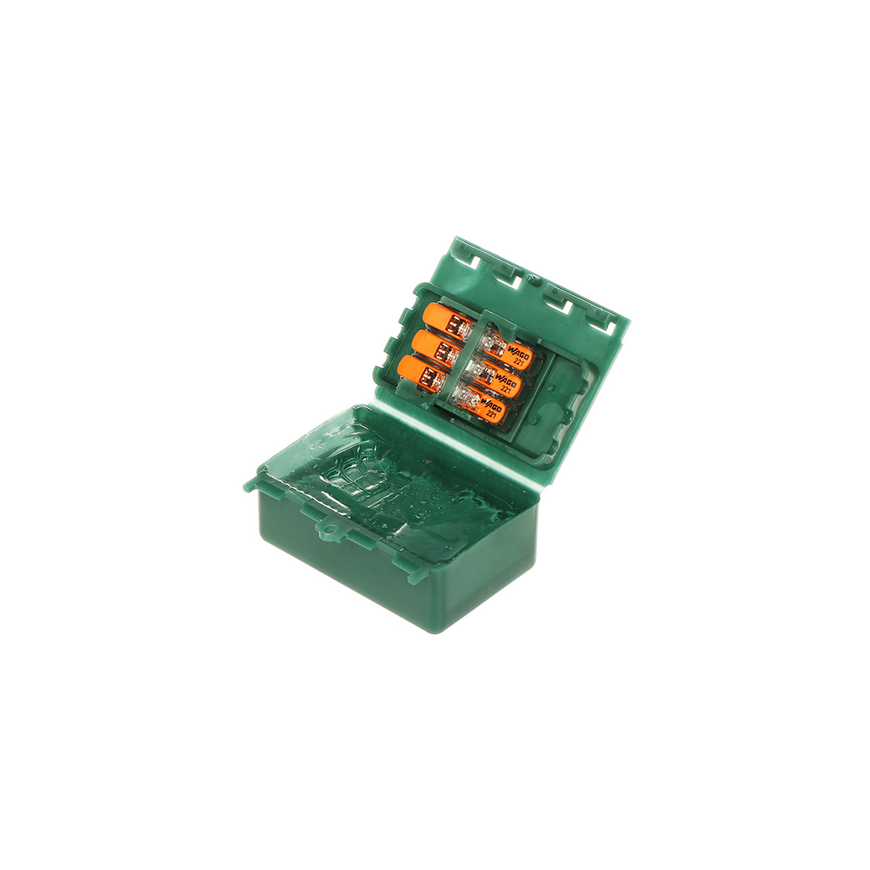

Universal installation box filled with gel, allowing the connection of electrical, telephone and signal cables, meeting the IP68 tightness class.
The box is perfect for places with high humidity, as well as underground (e.g. in electrical garden installations).
The box can be installed both horizontally and vertically - there is no risk of gel leakage.
The gel used for sealing is not harmful to humans, safe for the environment and easily removed in case of modification of the connection.
Attention!.
The box has 3 independent input and output channels.
| Number of relays : | 3 |
| Connector type : | 6 x spring clamp 3 x Input, 3 x Output |
| Wire cross-section : | 0.2 ... 4 mm² - Wire, 0.2 ... 2.5 mm² - Stranded wire |
| Rated current : | 32 A |
| Tightness class : | IP68 |
| Weight : | 0.08 |
| Internal dimensions : | 65 x 25 x 21 mm |
| Manufacturer / Brand : | RayTech |
| Warranty : | 2 years |
