UPS POWER SUPPLY AT-UPS1000RT-RACK 1000 VA EAST
3591406 AT-UPS1000RT-RACK
5904194150976
Piegāde 1-14 d.d.
The UPS AT-UPS1000RT-RACK is equipped with many advanced technologies that ensure active monitoring of the power supply network.

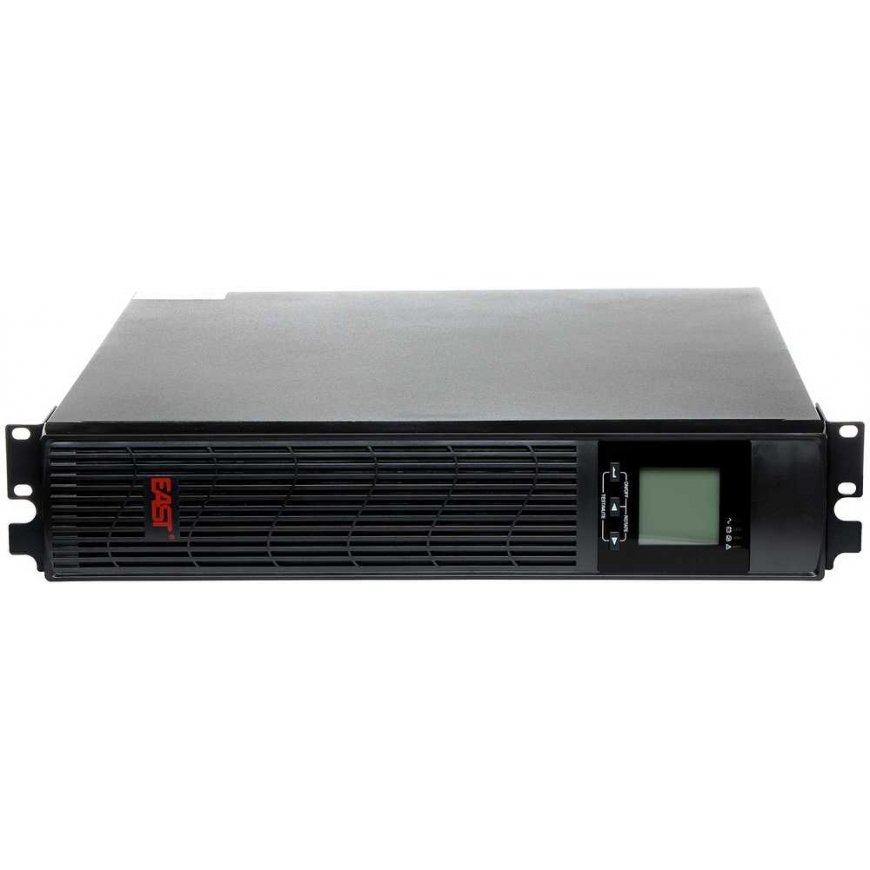

The device is mounted in a RACK 19" cabinet.
The device is an online power supply and ensures advanced operation mode completely independent of the external power supply network. Thanks to this, it completely isolates interconnected devices and performs its preventive function against phenomena contributing to dynamic changes in network parameters. These power supplies generate current transmitted from a battery, which is constantly charged.
The device works with power supplies with active power factor correction (APFC).
| Active power : | 900W |
| Apparent power : | 1000VA |
| Input voltage : | 230VAC ± 25% |
| Input frequency : | 50 / 60 Hz (automatic detection) |
| Output voltage : | 230 V AC ± 5 % (pure sine wave) |
| Output frequency : | 50/60Hz ±1% |
| Tension adjustment : | ± 1% |
| Frequency regulation : | - |
| Switching time : | 0 ms |
| Charging time (up to 90% level) : | 8 o'clock |
| Battery : | 2 x 12V/9Ah |

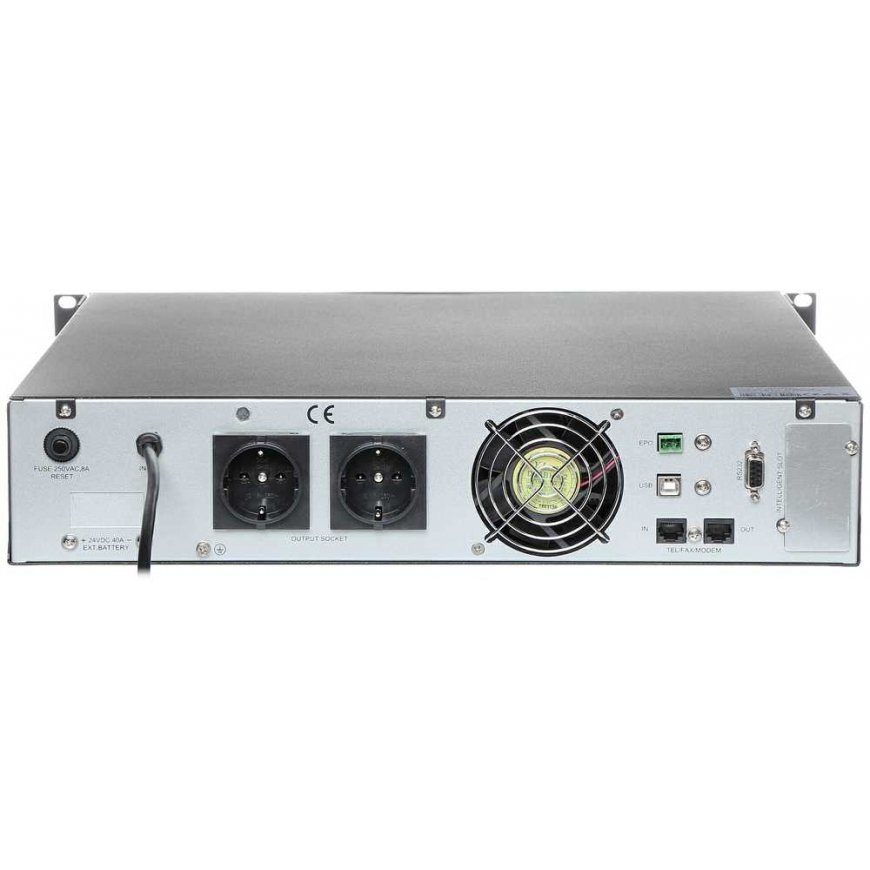

| Number of outputs : | 2 pcs. CEE 7/3 (Schuko) |
| Management software : | UPSmart (Windows 95/98/2000/XP/Vista/7/8/10, Linux) |
| Protective measures : | Fuse Surge protection Overcurrent protection EPO (Emergency power off) switch Ethernet filter |
| Working status indication : | LCD display: operating mode, battery charge level, input/output voltage, overload indicator, audible alarm |
| Main features : | Automatic AVR voltage regulator "Cold start" function Cooperation with generators Remote control - UPSmart application included Built-in EMI, RFI filter Excellent microprocessor control, ensuring high reliability Automatic UPS diagnostic system Battery power and maintenance control. USB/RS-232 communication port |
| Purpose : | monitoring systems data centers network, servers, workstations industrial equipment |
| Body type : | 2 in 1 (Rack / Tower) |
| Operating temperature/relative humidity : | 0 °C ... 40 °C / 0 ~ 90 % (non-condensing) |
| Weight : | 13.32 kg |
| Dimensions : | 440 x 88 x 478 mm; RACK 19", 2U |
| Manufacturer / Brand : | EAST |
| Warranty : | 2 years |
