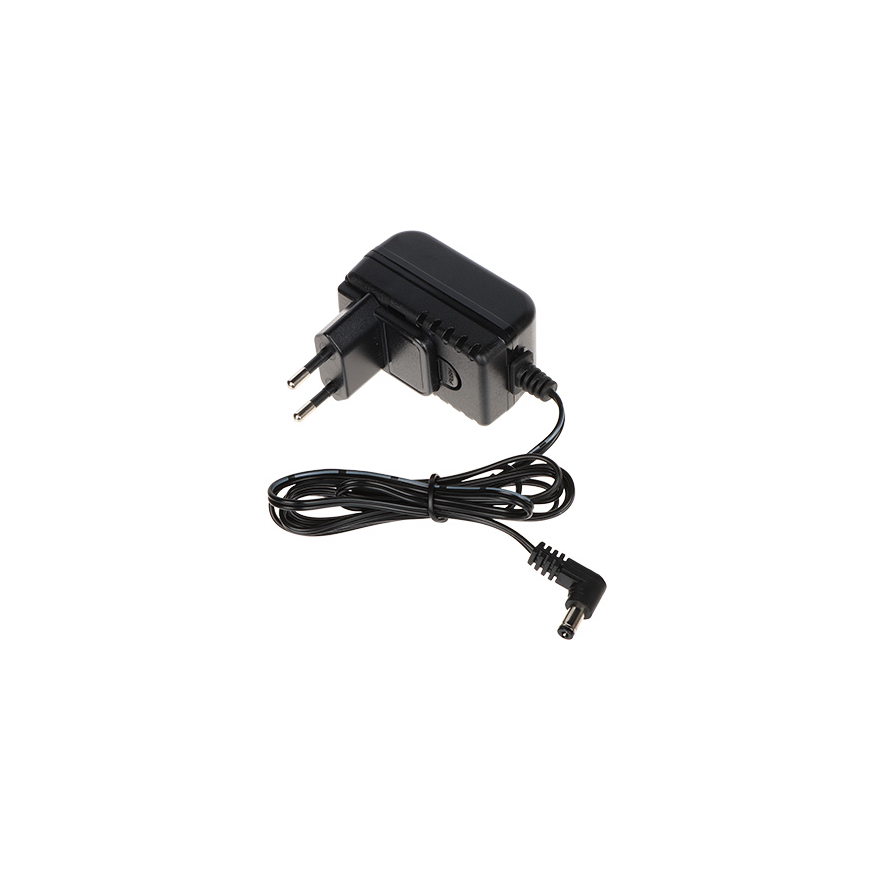

TST POWER SUPPLY UNIT PS305 FOR CCTV TESTERS
39,00 €
Ikm. maksa no 1.90 €
3548895 5902887092961
Šī prece nav vairs pieejama
Šī prece Jūs ieinteresēja
Attention! If the power supply is designed for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.
It is necessary to pay special attention to proper cooling of the power supply during operation!
| Support : | CS-H7-50H, CS-H7-70H, CS-H8-70H, CS-H9-70E, CS-H9-70HG, CS-HB-30H, CS-HB-45H, CS-HB-45W, CS-R3-50H, CS-R4-50H |
| Input voltage : | 100 - 240V AC |
| Input AC frequency : | 50 / 60 Hz |
| Output voltage : | 12.0V DC |
| Output current : | 1.0 A |
| Output power : | 12.0W |
| Power supply type : | Impulse |
| Output voltage regulation : | - |
| Protective measures : | From overloads |
| Number of outputs : | 1 pc. |

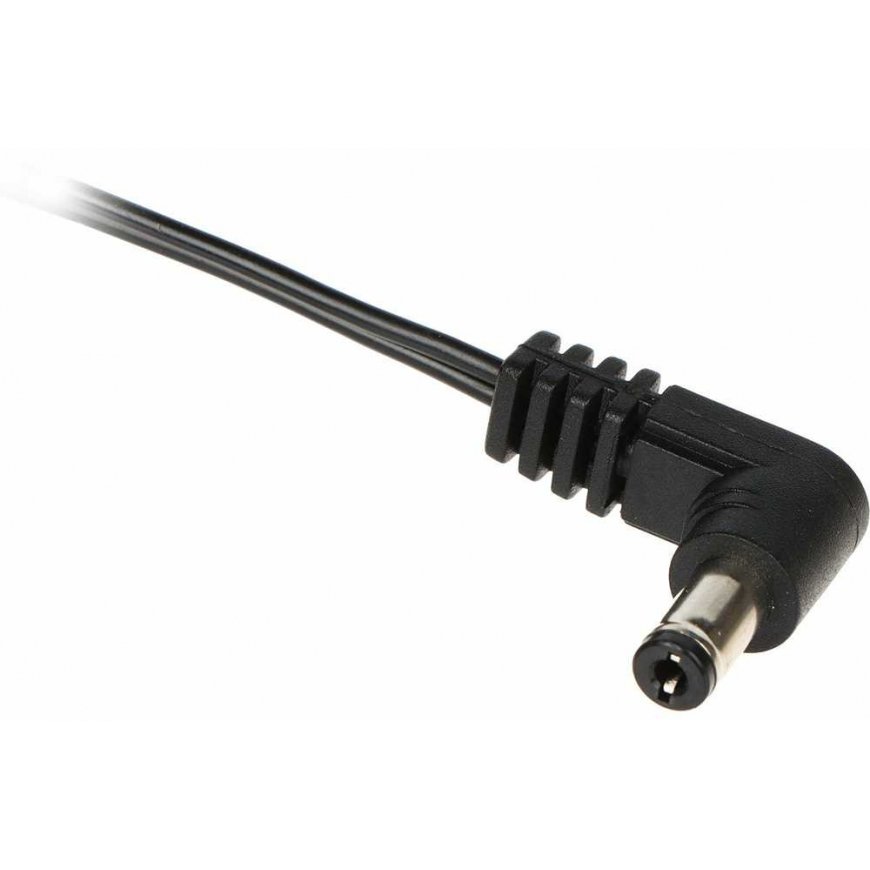

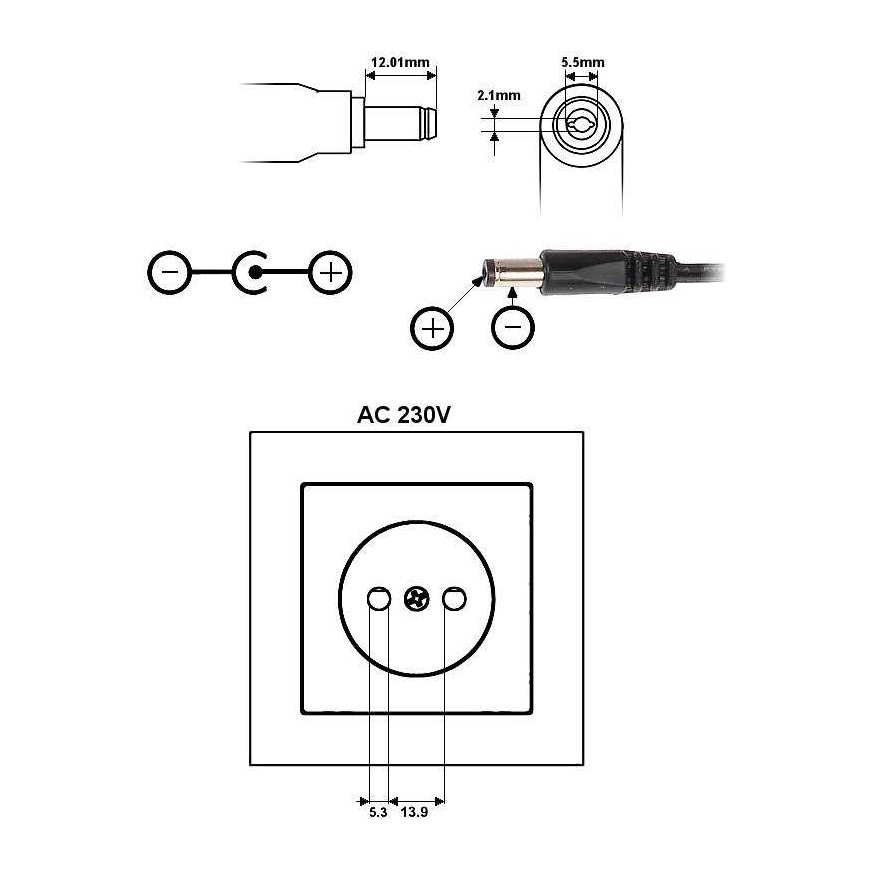

| Power connector type : | 230 V CEE 7/16 12 V - 2.1/5.5 mm - Angled plug |
| Body type : | Housing with plug |
| Weight : | 0.09 kg |
| Dimensions : | 78 x 76 x 39 mm |
| Warranty : | 2 years |
