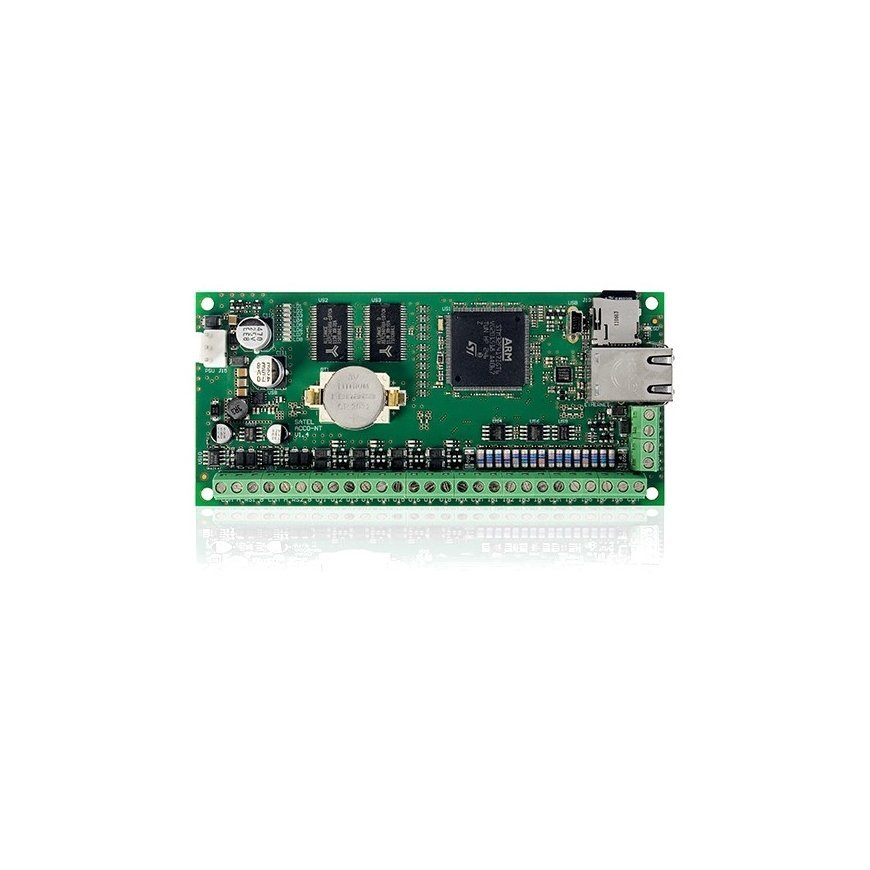

SATELA PIEKĻUVES VADĪBAS PANELIS ACCO-NT2
3167933 3133
5905033338319
Piegāde 2026-07-22 Latvijas teritorijā +1 diena
Access control center ACCO-NT2 is an element of the access control system ACCO NET.
A single ACCO-NT2 control panel may be integrated with many intruder alarms based on INTEGRA, INTEGRA Plus control panels.
Among the best advantages ACCO-NET needs to change: the centralization of the system, the possibility of connecting many objects to it, as well as the possibility of connecting a selected number of centers in a specified object, as well as the possibility of system administration from the browser level.
The ACCO-NT2 center has the option of programming complex logical operations at the output, which makes it possible to perform non-standard control functions.
Attention!
ACCO NET system requires a server with Debian operating system.
| Inputs : | 8 pcs. - Inputs on the main board max. 264 |
| Outputs : | 8 pcs. - Inputs on the main board max. 264 |
| Connection : | 2 x RS-485 Expander bus - up to 32 expansion models |
| Event memory : | Recording events on a micro SD card (included) Recording up to 1,000,000 events from the center, Max. 100,000 events deducted from each access control module |
| Users + administrators : | 8000 + 1 Max. 65,000 users across ACCO NET |
| Output load : | OC : 50 mA / 12 V DC +EX : 0.5 A / 12 V DC AUX : 0.5 A / 12 V DC |
| Main features : | Support for up to 255 access control modules Ability to create up to 255 partitions in 1 control panel (up to 255 access control modules can be defined in one partition) Ability to add up to 16 passageways (up to 16 partitions can be defined in each passageway) The possibility of blocking and unblocking the zone at a set time or according to access calendars, The possibility of assigning 4 identifiers and a panel to one user, The possibility of assigning up to 4 distance cards/lozenges DALLAS to the user, Up to 256 access calendars, weekly schedules, daily schemes, time frames Center outputs with the possibility of control by remote control. Execution of logical functions in inputs and outputs. Use of tripods (spindles) Protection of all inputs and outputs, as well as communication buses |
| Meals : | 12 V DC / 140 mA (max) |
| Working with the battery : | - |
| Working temperature : | -10 °C ... 55 °C |
| Permissible relative humidity of the environment : | 93% (non-condensing) |
| Weight : | 0.096 kg |
| Dimensions : | 151 x 69 x 17 mm |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
