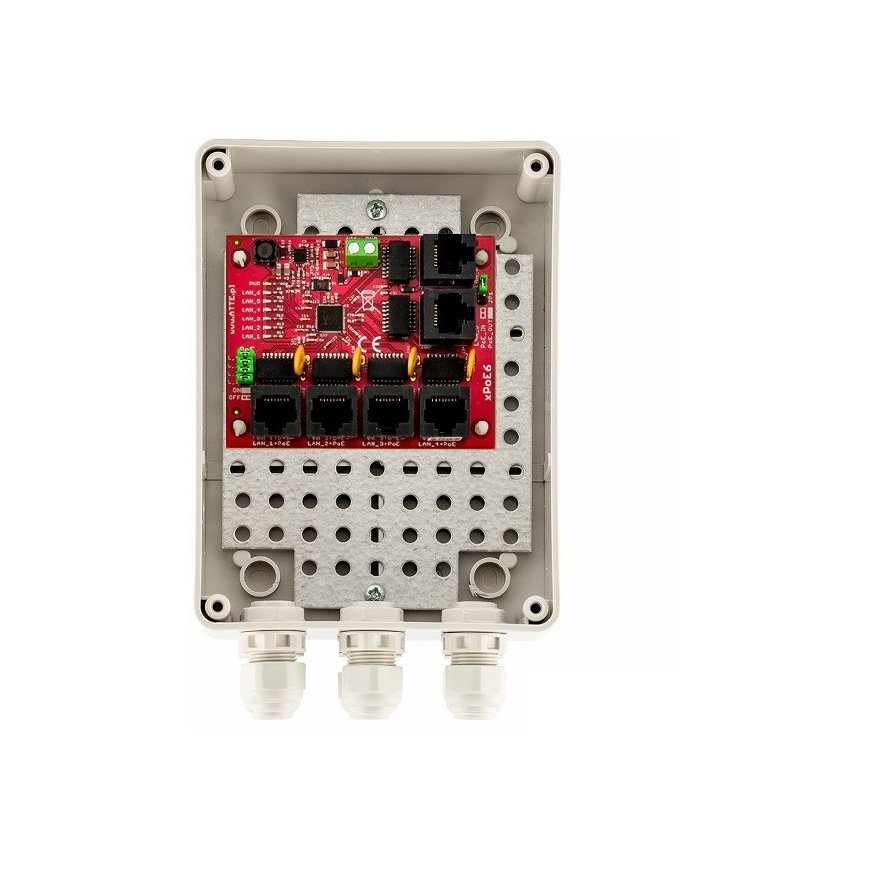

ATTE 6 PORTU POE SLĒDZIS xPoE-6-11-S2 (ārējais)

6-PORT POE ATTE SWITCH xPoE-6-11-S2 (external)

• Key features and functions:
• possibility to power 5 PoE 802.3at/af or PASSIVE receivers
• the ability to transmit data within 280 m (in long-distance mode)
• electronic fuse separately for each PoE channel (automatic return)
• ability to turn off power on selected PoE ports
• clear optical indicator of power and data transfer status
• wide input voltage range (10...56VDC)
• output voltage = input voltage
• up to 70 W of power via the LAN_5 PoE IN/OUT port
• up to 40 W on other PoE ports
• powered from a screw connection (Vin) or from another PoE PASSIVE switch (PoE IN/OUT port)
• cascading power supply - one xPoE powers another (PoE IN/OUT port)
• easy and fast startup, no need to configure parameters
• very low power consumption (<1.5 W)
• installation of modules in any perforated part of the mounting plate (raster system)
• Ability to store spare cables inside the case
• cable entry through glands installed in the housing: 6xM16
• The kit includes 2 brackets that allow you to mount the housing without compromising the IP56 protection level
• Technical data:
• LAN ports
• 6 RJ45 10/100Mbps ports
• (5xLAN+PoE, 1xUpLink)
• Supported PoE receivers (standard/maximum power)
• 802.3af - up to 15.4W LAN_1...LAN_5
• 802.3at - up to 30W LAN_1...LAN_5
• PoE PASSIVE - up to 70 W LAN_5 / up to 40 W LAN_1...LAN_4
• PoE transmitters supported (standard/maximum power)
• PoE PASSIVE - up to 70 W LAN_5 / up to 40 W LAN_1...LAN_4
• PoE outputs (standard/power mode)
• LAN_1...LAN5
• PoE PASSIVE, Mode B (4.5+) (7.8-)
• PoE input (standard/power mode)
• LAN_5
• PoE PASSIVE, Mode B (4.5+) (7.8-)
• PoE output protection (over current/short circuit)
• LAN_1...LAN_4
• 0.75 A / electronic (automatic return)
• LAN_5
• 1.25A / electronic (automatic return)
• SW1 microswitches
• 1 switch "MODE"
• switch working mode
• switches 2...6 "PoE ON/OFF"
• PoE power supply in ports LAN_1...LAN_5
• "Standard" operating mode
• "MODE" switch 1 is in the OFF position
• LAN_1...LAN_6 - range up to 100 m (10/100 Mbps)
• "Long Range" mode of operation
• MODE switch 1 is in the ON position
• LAN_1...LAN_4 - range up to 280 m (10 Mbps)
• LAN_5...LAN_6 - range up to 100 m (10/100 Mbps)
• Input voltage range
• Vin 10...56VDC
• Output voltage of PoE devices
• Vout = Vin
• Housing assembly
• mounted on the wall, mounting brackets
• Installation of devices inside the housing
• 4.8 mm system holes in 10.8 mm pitch
• Operating temperature range
• 25°C...+40°C
• Housing (type / material / color / cable entries)
• ABOX-S2 / material / RAL7035 gray / 6xM16 glands
• Dimensions / net weight / degree of protection
• 150x110x70mm / 0.39kg / IP56

• Model: xPoE-6-11-S2
• Housing Type: Wall/Ceiling Mounted
• Switch Type: Uncontrolled
• FastEthernet ports: 6
• Number of POE ports: 6
• Console Port: No
• Switch baud rate: 10B ASE - T: 14880ps/port; 100B ASE - TX: Page 148800
• Switch architecture: Fast Ethernet
• PoE support: Yes
• Number of ports: 6 pcs.
• Device bandwidth: 1 Gbps
