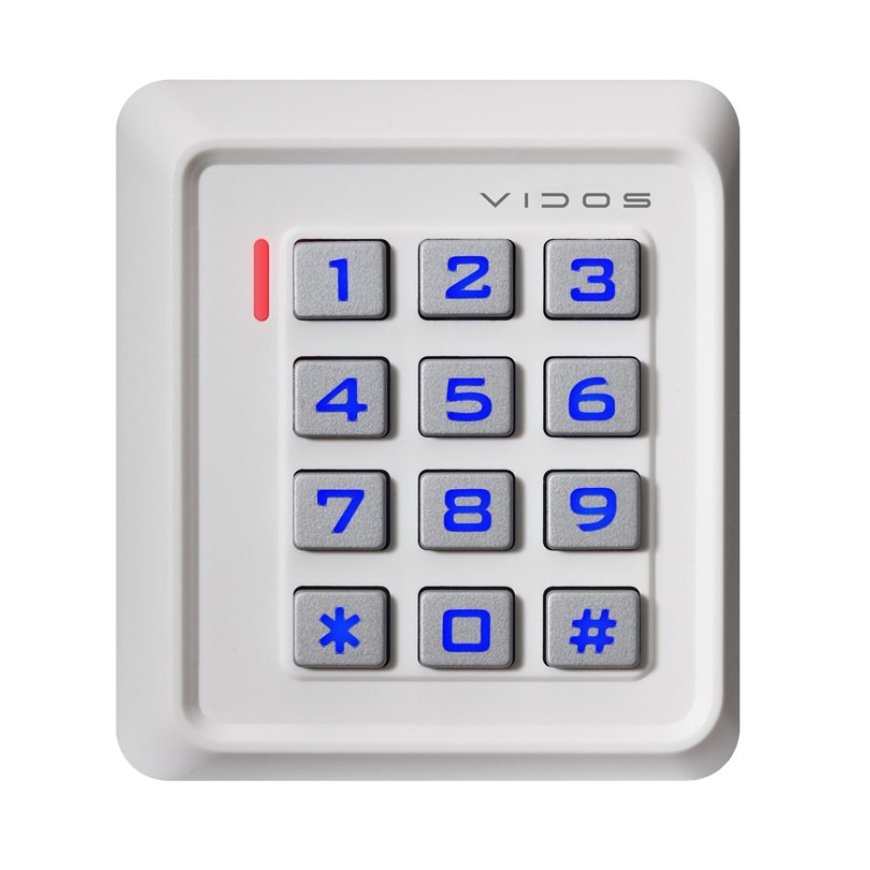

Kombinēta slēdzene ar tuvuma lasītāju VIDOS ZS40W

Code lock with VIDOS ZS40W proximity reader

• Backlit keyboard with mode LED
• Electric shock control via card, key fob, RFD sticker or four-digit code
• Adjustable lock opening time 1 - 99 sec.
• Built-in internal alarm to prevent unauthorized use
• Open door sensor function (need to install contact sensor)

• Model: ZS40W
• Supply voltage: 12V
• Enclosure protection factor: IP40
• Verification type: card and code
• Scanner frequency: 125 kHz
• Current consumption in standby mode: 25 mA
• Current consumption in working state: 60 mA
• Max. relay contact load: 1A/12V
• Shutter activation time: 99 sec.
• Purpose of doors: All doors
• System capacity: 2000 cards/codes
• Number of relay outputs: 1
• RF ID reading range: 5 cm
• Possible work modes: Work in autonomous mode
