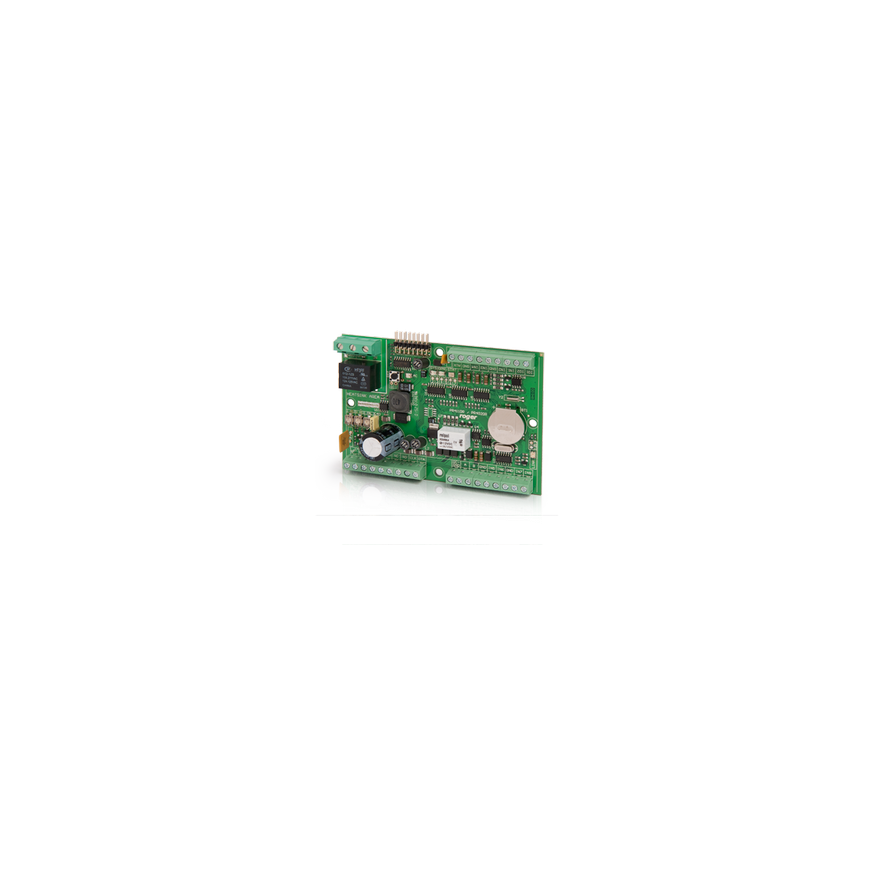

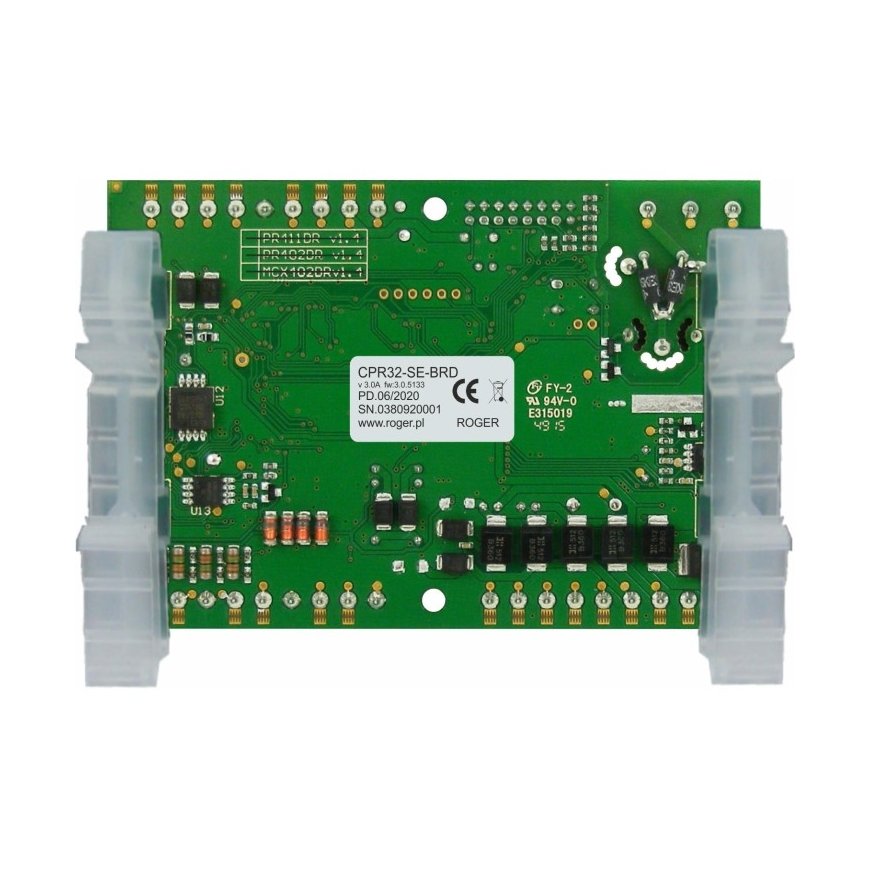

ROGER ACCESS VADĪBAS PANELIS CPR32-SE-BRD
199,00 €
Ikm. maksa no 6.02 €
2759490 9454
5907608960116
Šī prece nav vairs pieejama
Šī prece Jūs ieinteresēja
The access control center CPR32-SE-BRD is an element of the access control system RACS4.
The use of the center in the RACS 4 system provides central system management, event central buffer, clock and calendar service, alarm zones reinforced by co-extrusion of individual controllers.
| Inputs : | 8 pcs. - Inputs on the main board max. 32 |
| Outputs : | 4 pcs. - Transistor outputs 2 pcs. - Relay outputs NO/NC |
| Connection : | RS-485 , RACS (Roger) |
| Event memory : | The memory of the last 250,000 events is non-volatile |
| Output load : | Transistor outputs: 1 A / 15 V DC Relay outputs: REL1 - 1.5 A / 30 V DC REL2 - 5 A / 230 V AC |
| Main features : | The possibility of blocking and unblocking the zone at a set time or according to access calendars, Central management of the access control system, Coordination with the alarm system SATEL INTEGRA, A history of 250,000 events Protection of all inputs and outputs, as well as communication buses mounting on DIN, TS-35 rail |
| Meals : | 24 V DC 12V DC 18 V AC |
| Working with the battery : | ✔ |
| Working temperature : | 5 °C ... 40 °C |
| Permissible relative humidity of the environment : | 10% ... 95% (non-condensing) |
| Dimensions : | 105 x 85 x 50 mm |
| Weight : | 0.12 kg |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
