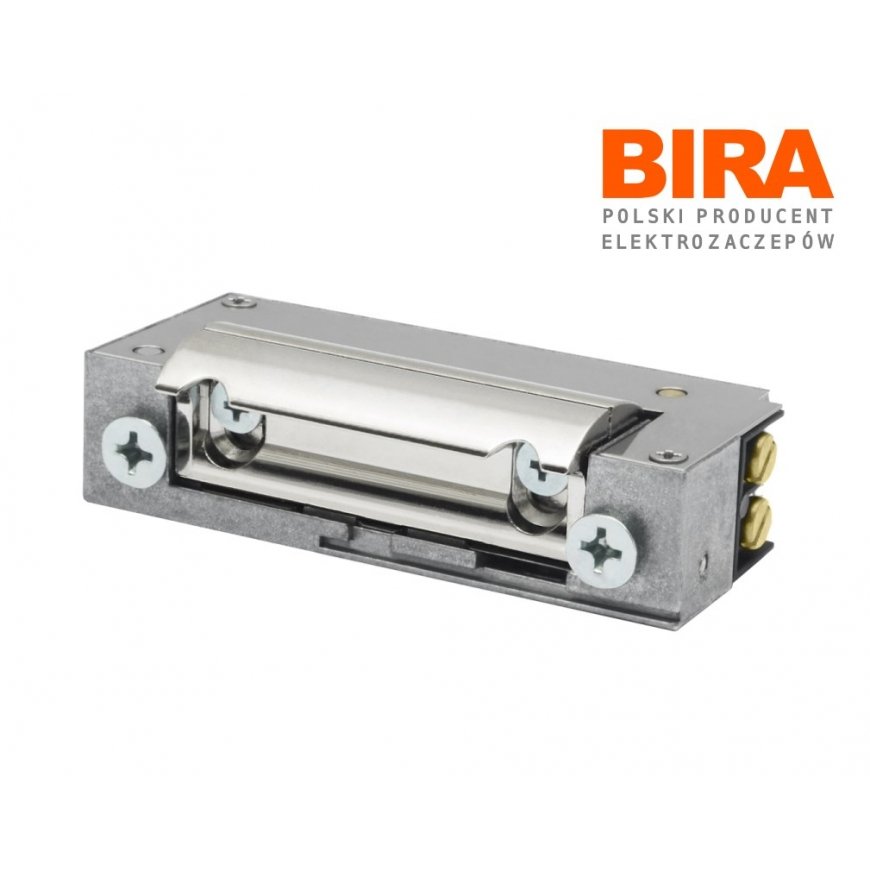

Elektriskais durvju trieciens HARTTE XS12U sērijas XS 12V AC/DC standarts
39,53 €
39,33 €
Ikm. maksa no 1.91 €
2598225 36382
5903857580051
Piegāde 1-14 d.d.
Šī prece Jūs ieinteresēja
The Hartte electric strikes XS-series are narrow (only 16.2 mm wide) and have a small dimension enabling mounting in narrow profiles and door frames.
They are built symmetrically - fit perfectly to left and right doors of various types.
Radius latch (it is not outstanding out of electric strike outline) and adjustment in the range of 3.5 mm requires less punching, and making installation easier and quicker.
| Nominal voltage : | 10 ... 14 V AC/DC |
| Current consumption : | 480mA @ 12V AC 680mA @ 12V DC |
| Usage : | right door / left door |
| Ratchet Blocker : | - |
| Memory function : | - |
| Reverse work : | - |
| Freedom regulation : | 3.5 mm |
| Permissible door load acting on the lock : | 3000 N |
| Allowable duration of continuous operation : | - |
| Main features : | Symmetrical housing Narrow profile : 16.2 mm, Operating mode : NC Resistance : 17.6 Ω Number of opening cycles : 200000 Radial shape of the latch - when opening the latch is not going beyond the outline of electric strike |
| Weight : | 0.136 kg |
| Dimensions : | 16.2 x 28 x 67 mm |
| Manufacturer / Brand : | DISAPPEARING |
| Warranty : | 2 years |
