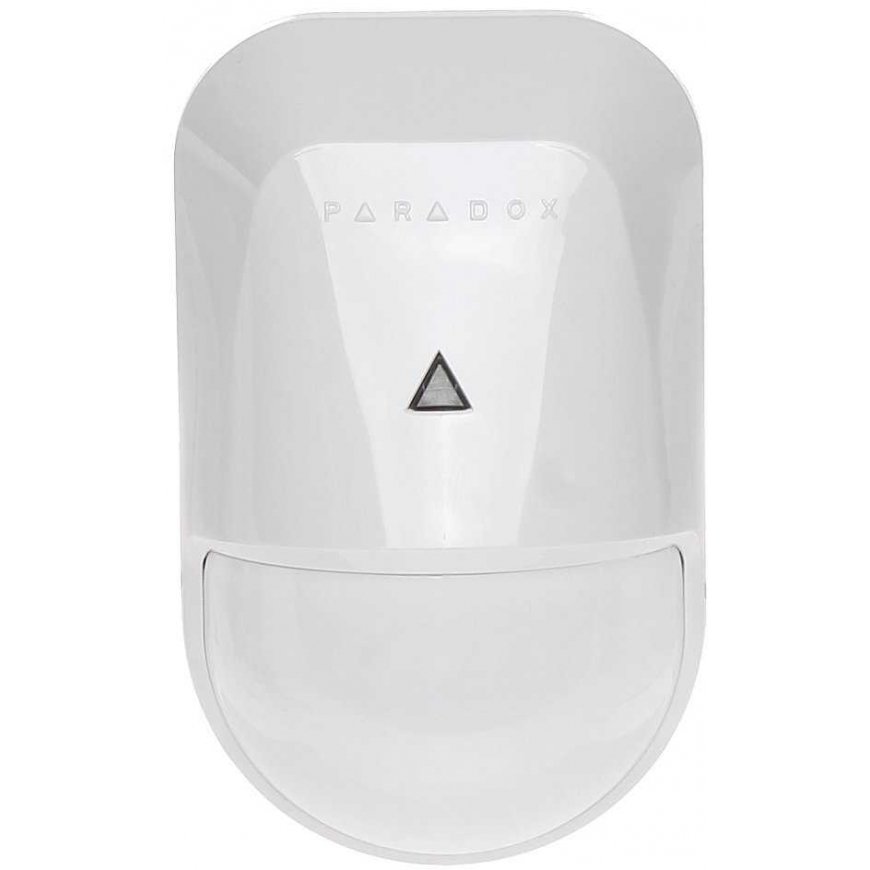

PIR SENSOR NV5 PARADOX, PET up to 16Kg
27,99 €
3665740 NV-5
5902887016202
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
Digital passive IR detector, resistant to animals up to 16 kg.
The NV-5 passive infrared sensor is designed for indoor use.
Thanks to advanced signal analysis algorithms, it is characterized by very stable operation and a low probability of false alarms.
| Usage : | For indoor use |
| Pyroelement : | Double |
| Sensor type : | Passive IR (PIR) |
| Distance : | 10x10m |
| Detection angle : | 90° |
| Recommended installation height : | 2.1 ... 3.1 m |
| Sensitivity adjustment : | ✔ |
| Self-diagnosis : | - |
| Animal resistance : | < 16 kg |
| Pre-alarm function : | - |
| Maximum output load : | 28V DC / 150mA |
| Alarm outputs : | NC |
| Violation alarm time : | 3 seconds |
| Detected movement speed : | 0.2 ... 3 m/s |
| Digital temperature compensation : | ✔ |
| Power supply : | 10 ... 15 V DC |
| Maximum current requirement : | 11.3mA |
| Main features : | Fresnel lenses 3D Anti-sabotage security measures Patented motion analysis (without analog signal processing) Digital technology for pulse signal processing Digital Shield algorithm reduces false alarms Metal shield protects against EMI, RFI interference EN 50131-2-2 Safety class II |
| Environmental class : | Class I |
| Working temperature : | -10°C ... 50°C |
| Color : | White |
| Weight : | 0.052 kg |
| Dimensions : | 56 x 92 x 42 mm |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
