TST SURGE LIMITER AXON-POE-MULTINET-12
3659397 W0030
5904743333300
2026-07-22

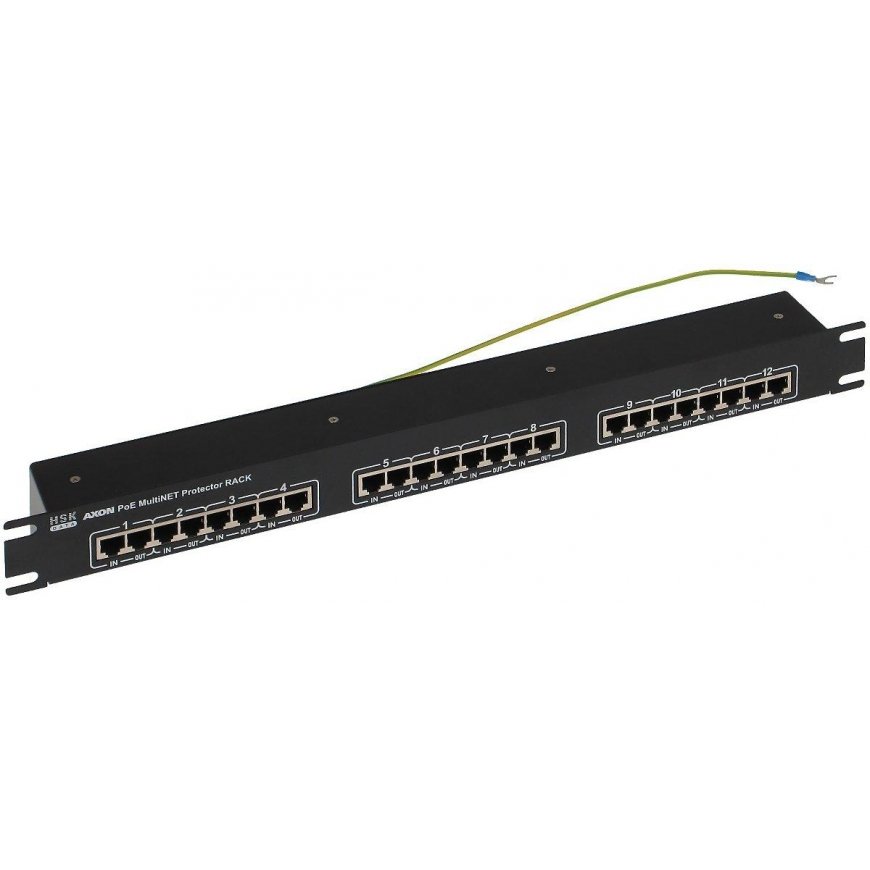

AXON-POE-MULTINET-12 is a multi-channel AXON device designed to protect devices connected to an Ethernet 10/100 Mb/s network and powered using PoE technology from surges.
Each of the 12 AXON-POE-MULTINET-12 channels has 2 lines - a data transmission line (lines 1-2, 3-6) and a power line (lines 4-5, 7-8).
In order to increase the load capacity of the power line, line 4 is shortened to 5, and line 7 to 8.
The shielded RJ-45 jack allows you to maintain the integrity of the shield when using twisted pair cable FTP.
The socket screen is connected to ground.
A prerequisite for the proper operation of the AXON-POE-MULTINET-12 is its connection to an effective grounding or protective PE conductor.
| Signal channel - lines 1-2, 3-6 : | |
| Rated voltage : | 5V |
| Maximum voltage : | 6 V |
| Line-to-line protection level : | ≤ 40 V - 1 kV/µs |
| Protective voltage line-to-ground : | ≤ 600 V - 1 kV/µs |
| Rated discharge current (line-line) : | 20 A (10/1000µs) |
| Rated discharge current (line-ground) : | 20 A (10/1000µs) |
| Power channel - lines 4, 5 and 7, 8 : | |
| Nominal supply voltage : | 50V |
| Maximum supply voltage : | 56 V |
| Rated supply current : | 400mA |
| Line-to-line voltage protection for power supply : | ≤ 95 V - 1 kV/µs |
| Protective voltage line-to-ground for power supply : | ≤ 1000V (1.2/50µs) |
| Nominal discharge current for line-to-line power supply : | 10 A (10/1000µs) |
| Rated discharge current for power supply (line-ground) : | 2kA (8/20µs) |
| Security parameters : | Complies with PN-EN61643-21 |
| General data : | |
| Number of channels : | 12 |
| Socket type : | RJ45 (8P8C) |
| Body : | Metal, black |
| Weight : | 1.07 kg |
| Dimensions : | 1 U Rack 19" 488 x 44 x 50 mm |
| Warranty : | 2 years |
