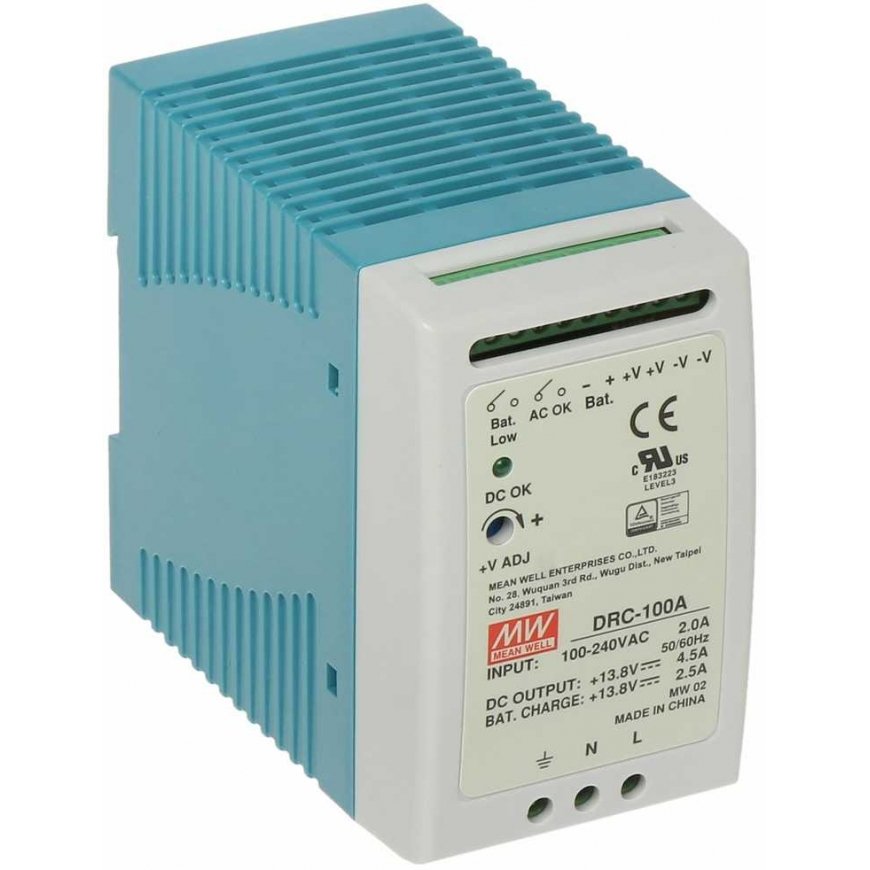

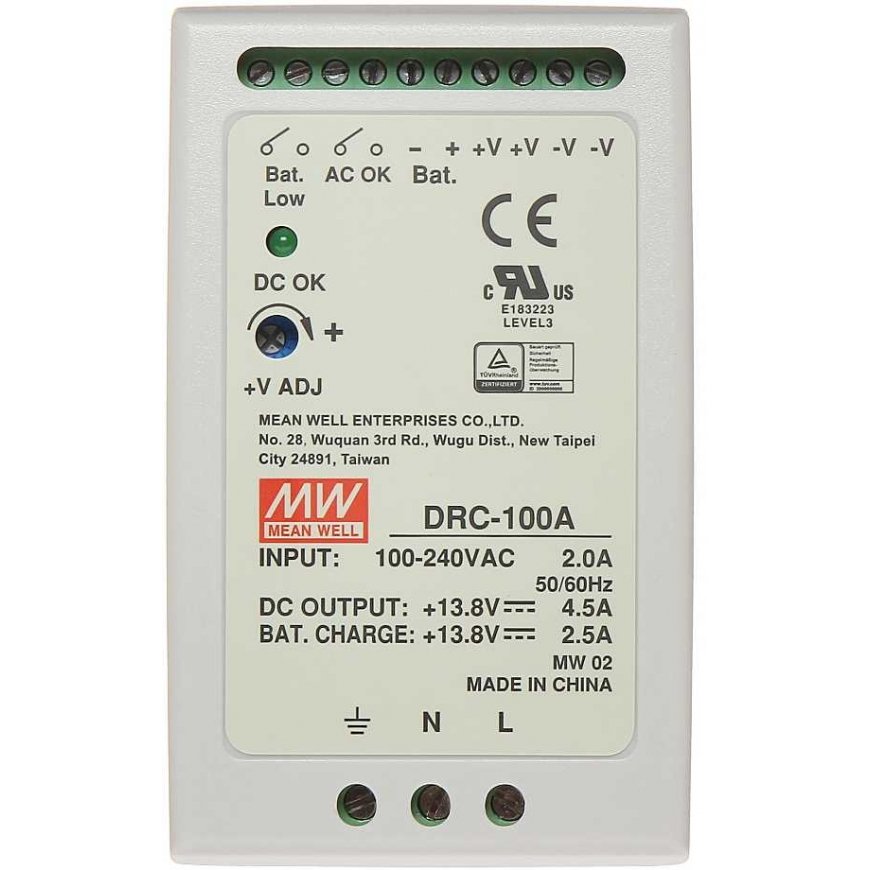

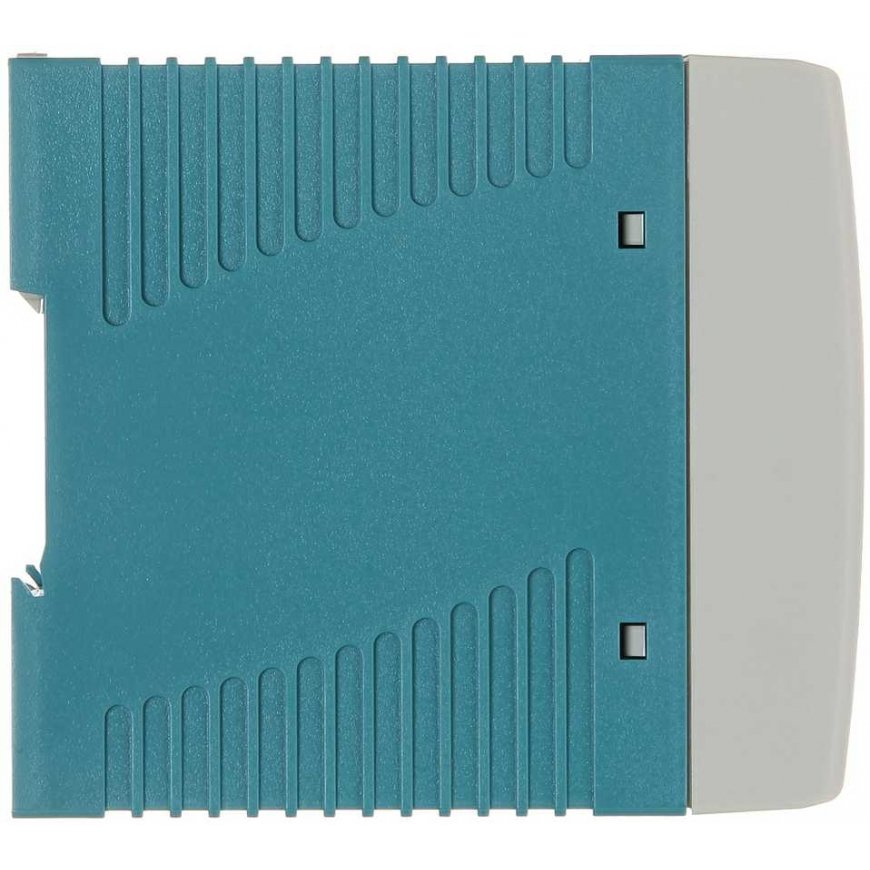

Mean Well BUFFERED SWITCHING POWER ADAPTER DRC-100A
109,00 €
69,00 €
Kuumakse alates 2.68 €
3653159 DRC-100A
5902135301456
2026-07-29
Kauba vastu huvi?
The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, manipulators, intercoms and other devices that are part of the alarm system.

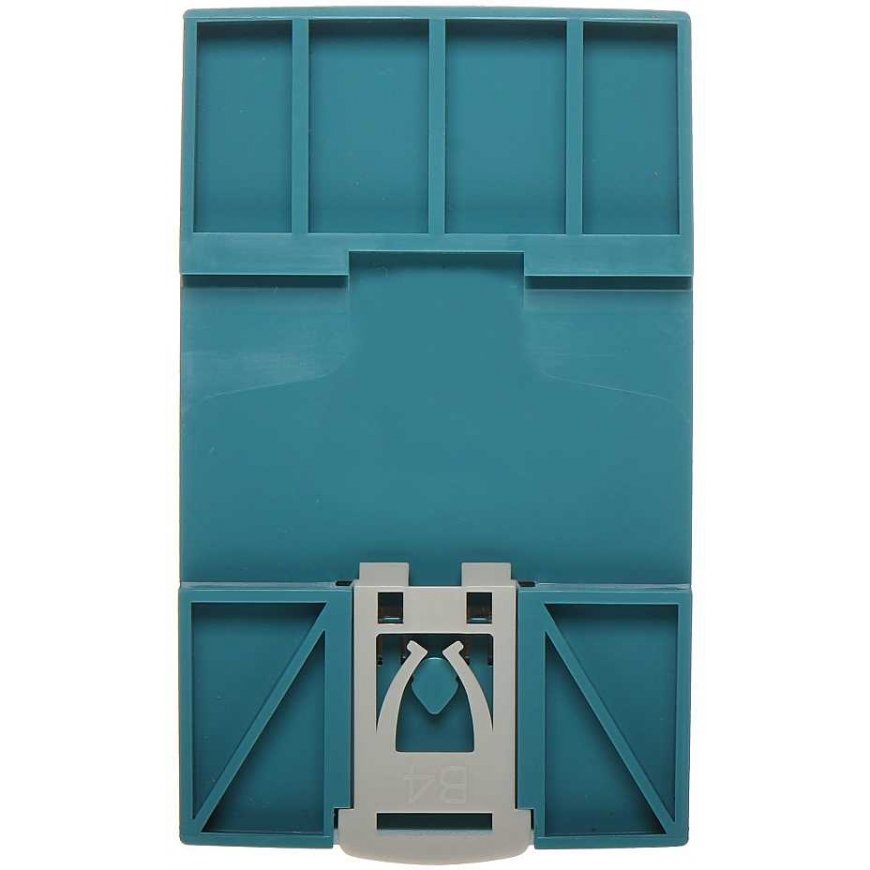

The DRC-100A is designed to be mounted on a 35 mm DIN rail.
| Power supply type : | Impulse |
| Input voltage : | 100 ... 240 V AC |
| Output voltage : | 12 ... 15 V DC (buffer operation) 13.8 V DC (battery operation) |
| Maximum output current (total) : | 7 A |
| Battery charging current : | 2.5 A |
| Power : | 96.6W (max) |
| Protective measures : | From short circuit From overvoltage From overloads Reverse connection From excessive discharge |
| Adapter operation control : | Output voltage presence signaling Broadcast type technical outputs Bat. Low, AC OK |
| Fitting type : | Plastic, DIN, TS-35 rail mounting |
| Weight : | 0.350 kg |

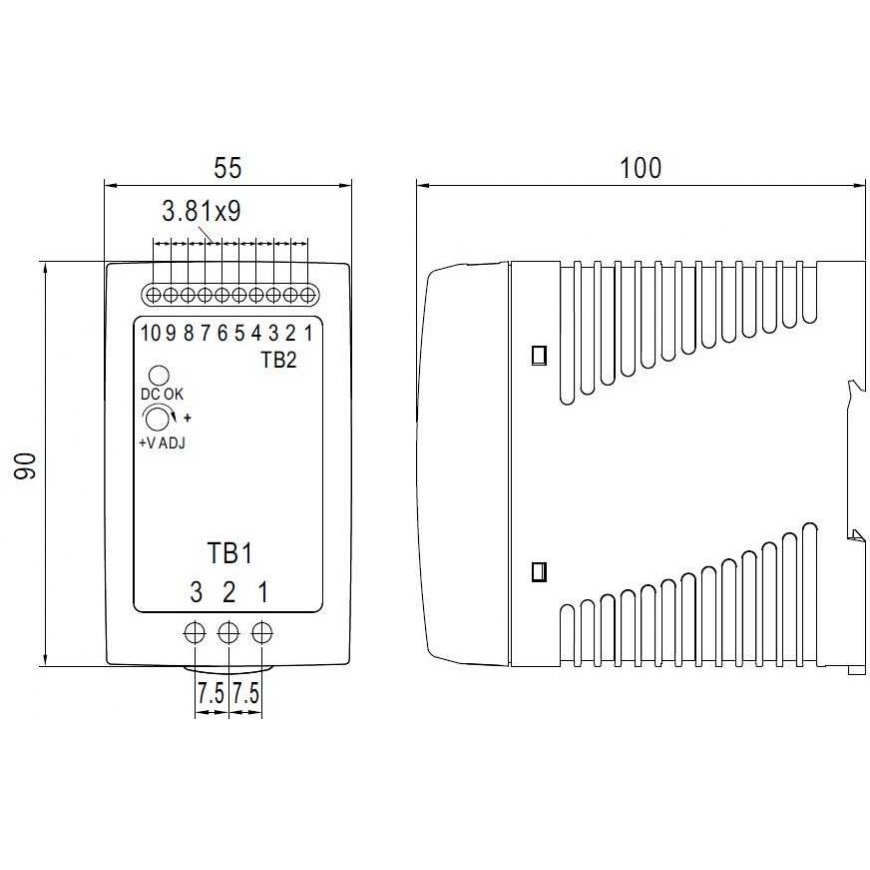

| Dimensions : | 55 x 90 x 100 mm |
| Warranty : | 2 years |
