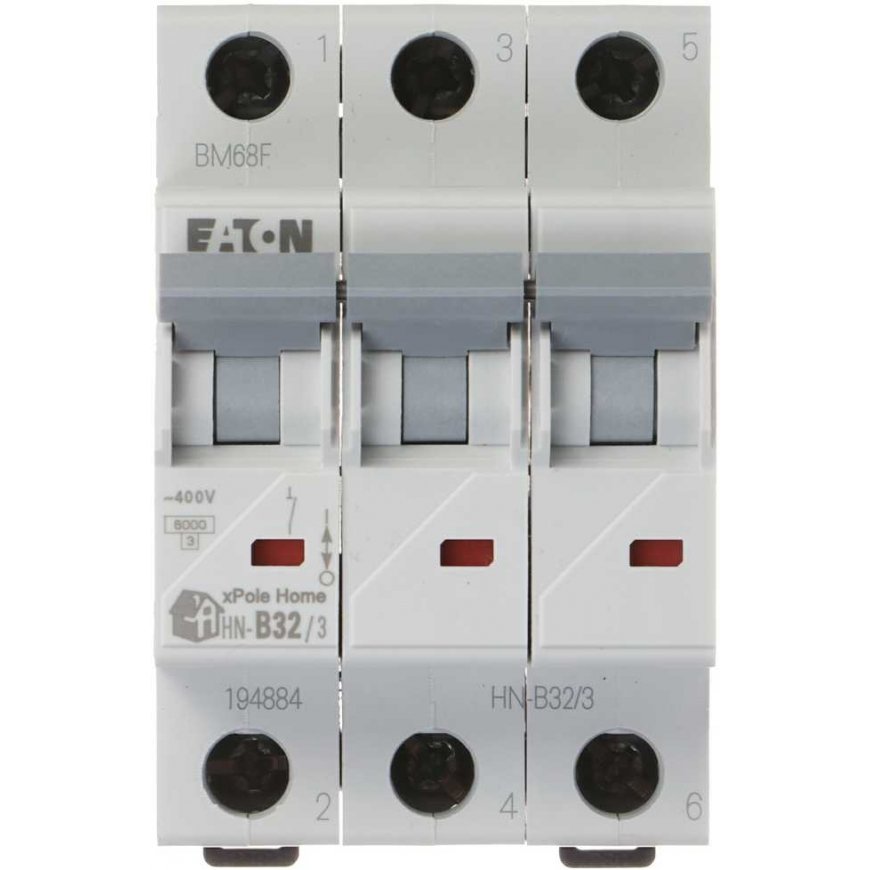

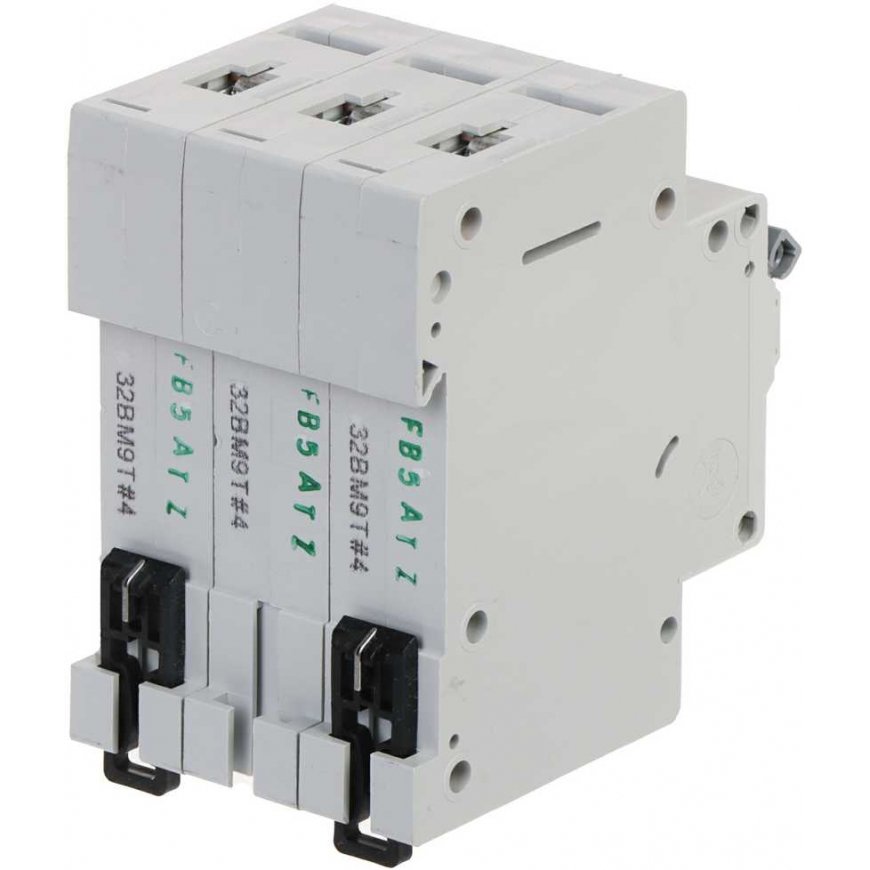

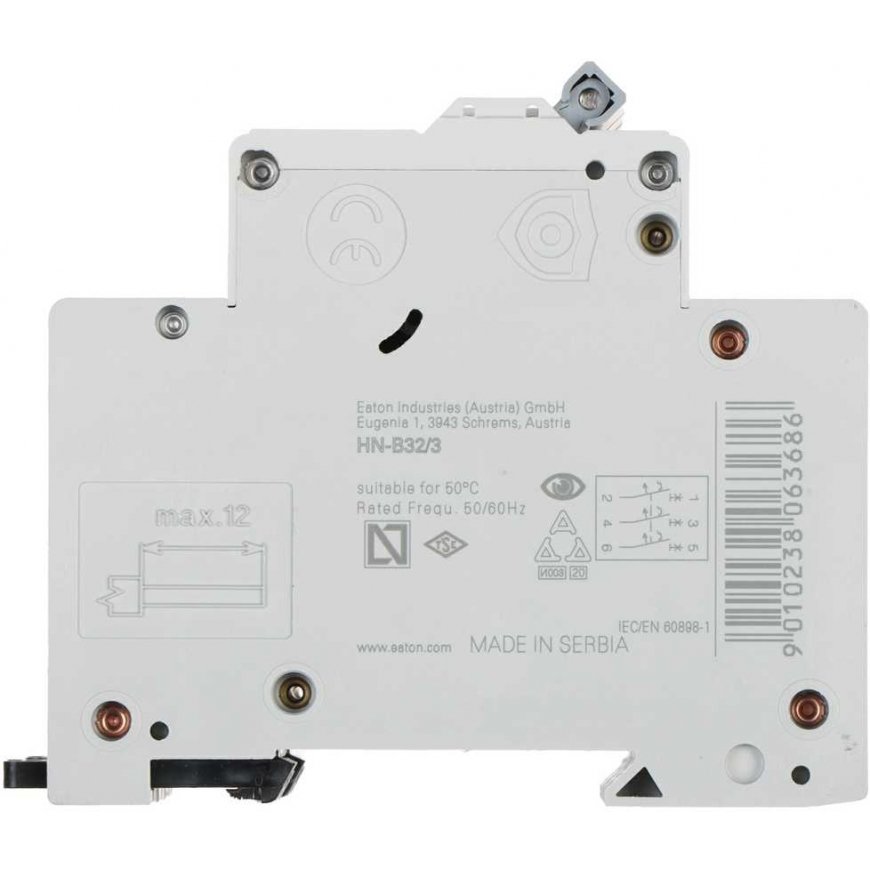

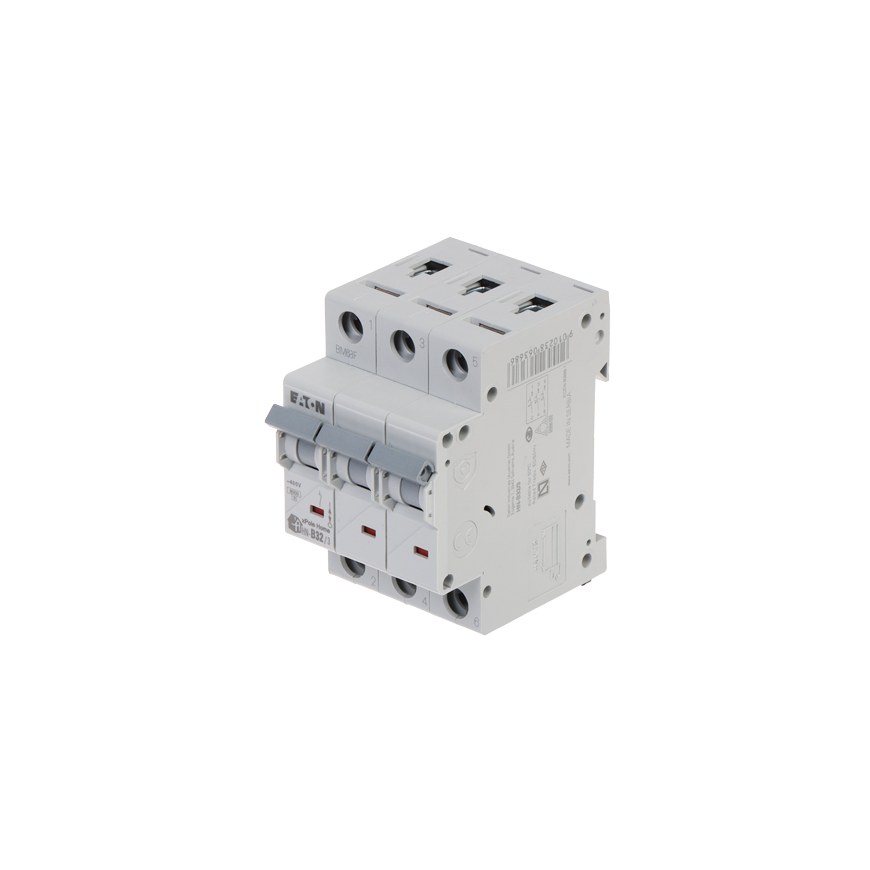

POWER SWITCH HN-B32/3 THREE-PHASE 32 AB TYPE EATON
POWER SWITCH HN-B32/3 THREE-PHASE 32 AB TYPE EATON
POWER SWITCH HN-B32/3 THREE-PHASE 32 AB TYPE EATON
POWER SWITCH HN-B32/3 THREE-PHASE 32 AB TYPE EATON
POWER SWITCH HN-B32/3 THREE-PHASE 32 AB TYPE EATON

Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

POWER SWITCH HN-B32/3 THREE-PHASE 32 AB TYPE EATON

39,00 €
Kuumakse alates 1.90
3645153

9010238067851

Tarneaeg 1-14 t.p.

Kogus
Kauba vastu huvi?
(Lugege teenusetingimusi)

Motorized switch with type B designation and rated current 32A.

The HN-B32/3 switch is designed for mounting on a DIN TS-35 rail.

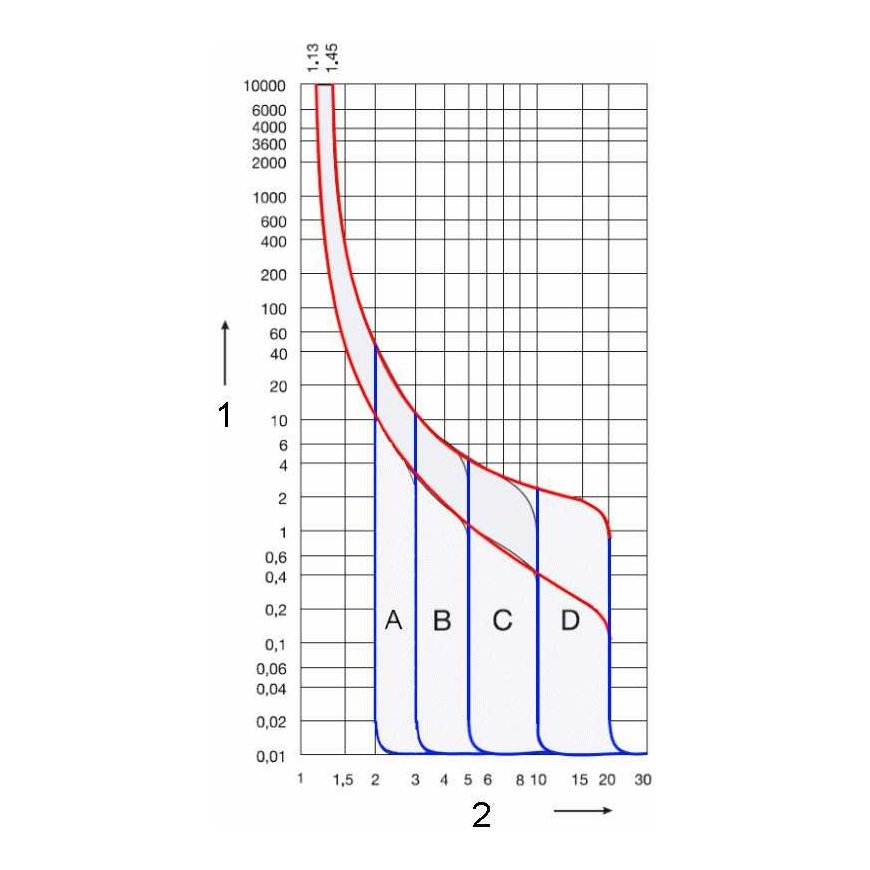

Circuit breakers with characteristic B are designed to protect lighting circuits, controls and sockets from short circuits and overloads.

Device type : Motorized switch, Three-phase
Rated current : 32 A
Number of piles : 3
Description of the launch : Type B
Rated short-circuit duration : 6000 A
Rated voltage : 230 V AC / 50 Hz 400 V AC / 50 Hz
Connector type : threaded terminals
Wire cross-section : 1mm² - 25mm²
Main features : Contact position indicator Possibility of sealing
Body : Plastic, DIN, TS-35 rail mounting
Width in modules 17.5 mm : 3
Weight : 0.322 kg
Dimensions : 52.5 x 84.5 x 73 mm
Manufacturer / Brand : EATON
Warranty : 2 years

CE Declaration of Conformity
