TST ELECTROMAGNETIC LOCK ZE-320
3625663 ZE-320
5902887072871
Tarneaeg 1-14 t.p.
Electromagnetic lock, surface, single.
Due to its simple design and modern production technologies, it is a reliable device for blocking doors and gates.
Forcing a barrier locked with a blocker requires > 320 kg of force.
Operation is reversible - open in the absence of supply voltage.

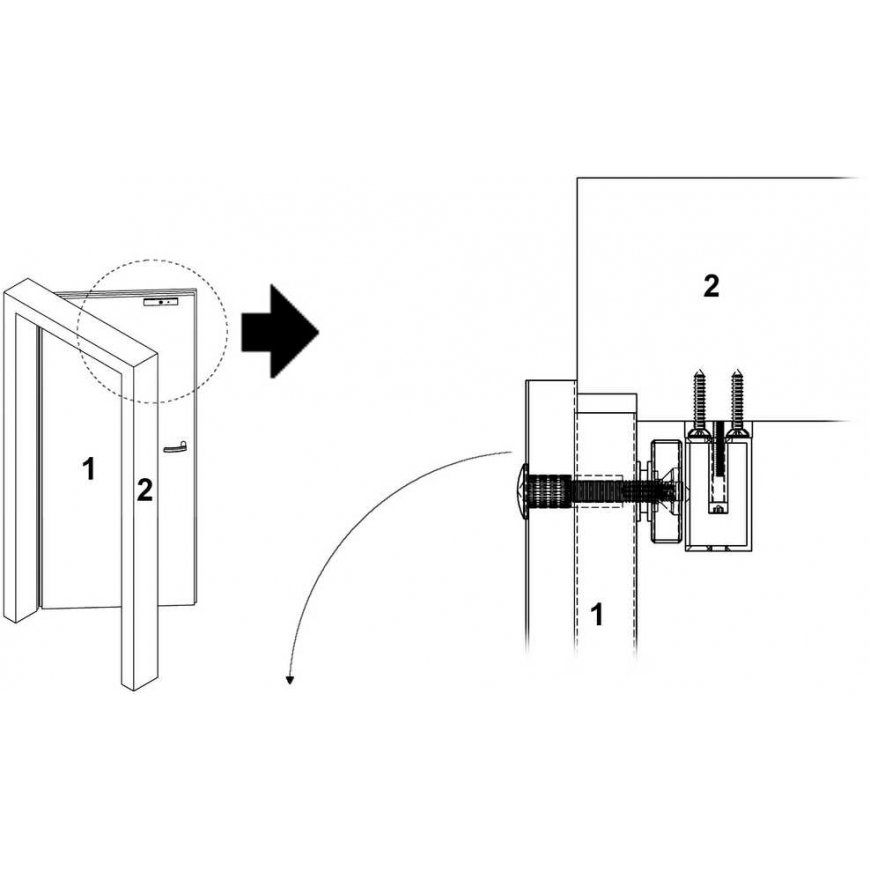

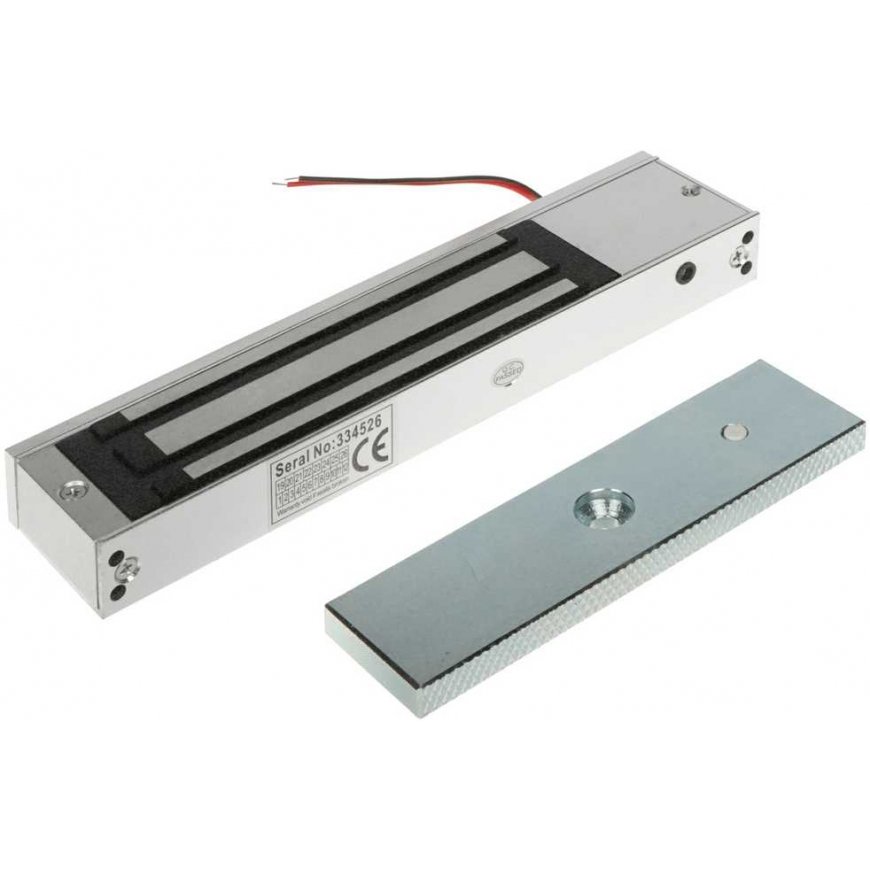

The lock consists of two elements: an electromagnet (usually attached to the frame) and a lock plate (usually attached to the door).
The trouble-free operation of the blocker is ensured by the absence of mechanical parts that wear out after a certain period of time.
The device is intended for outdoor use.
| Holding power : | 320 kg |
| Rated voltage : | 12V DC / 24V DC |
| Current consumption : | 500mA / 250mA |

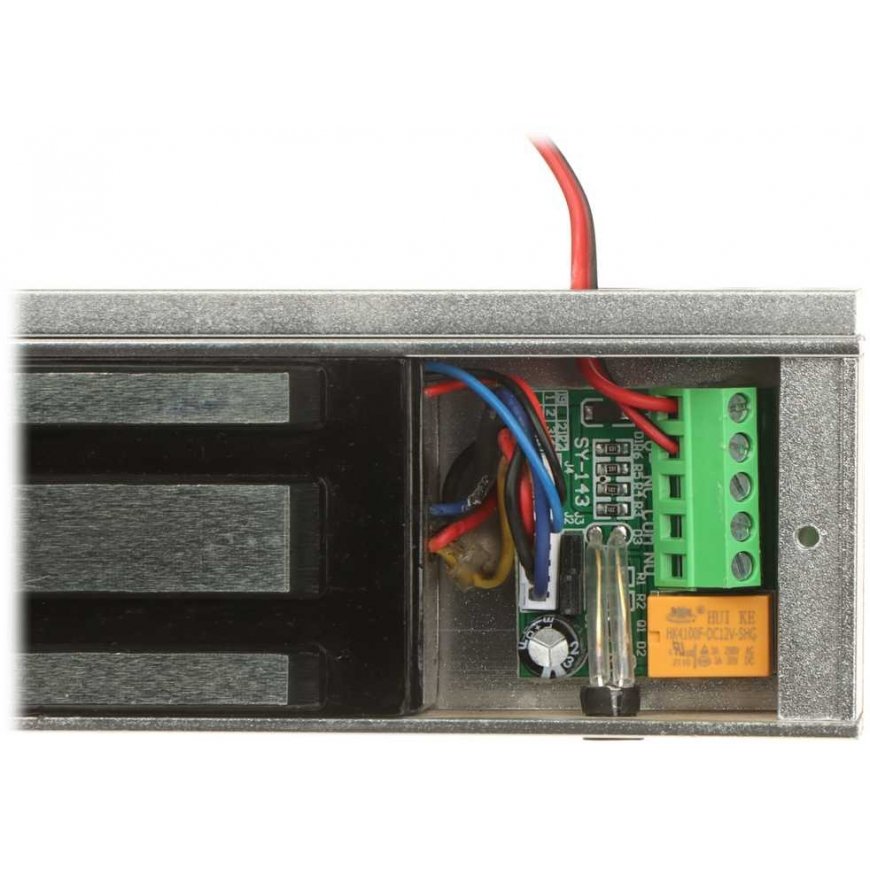

| Main features : | LED indication, NO/NC output, signaling door opening |
| Weight : | 1.91 kg (total) |

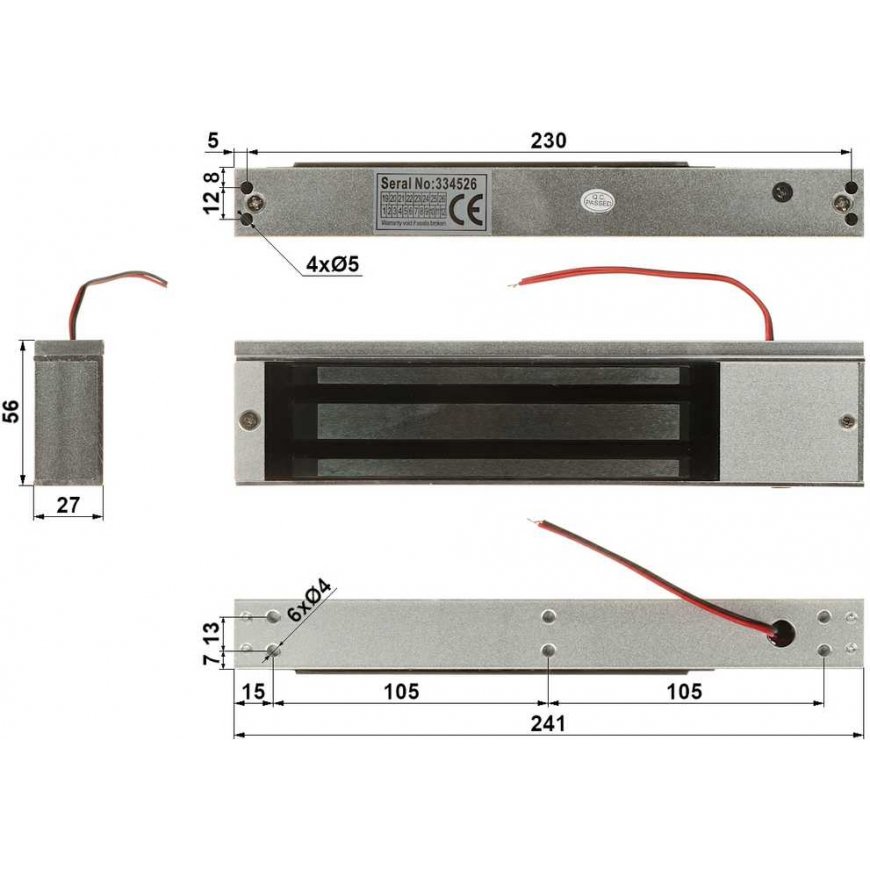

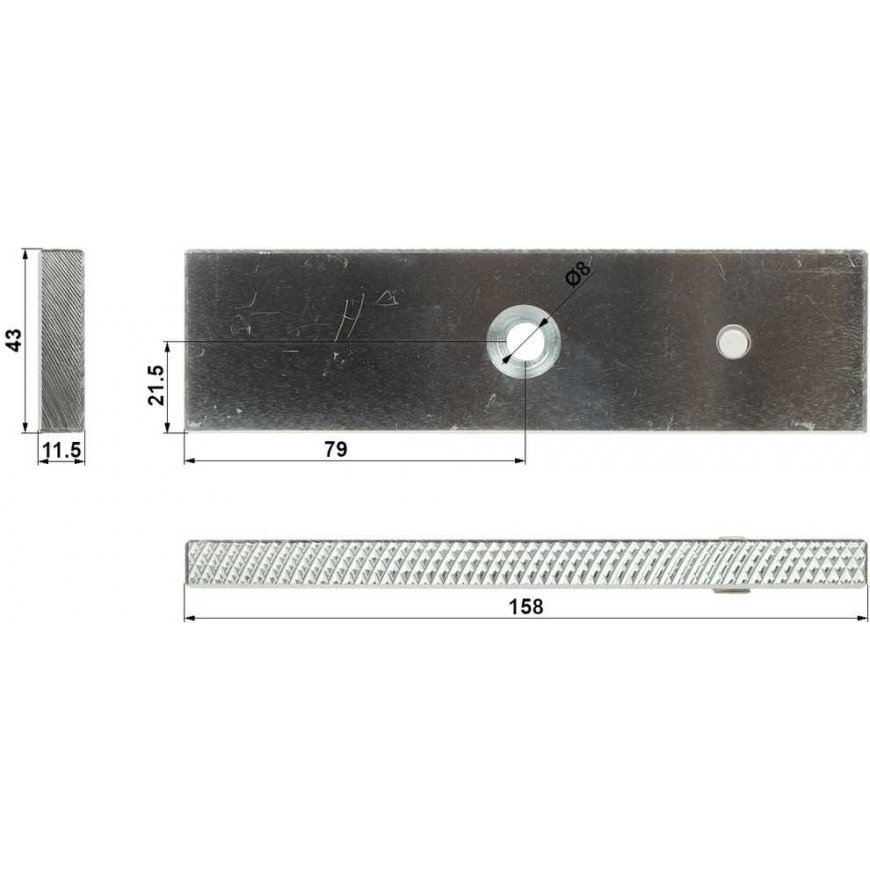

| Dimensions : | 241 x 56 x 27 mm (ELECTROMAGNETIC LOCK) 158 x 43 x 11 mm (Metal plate) |
| Warranty : | 2 years |
