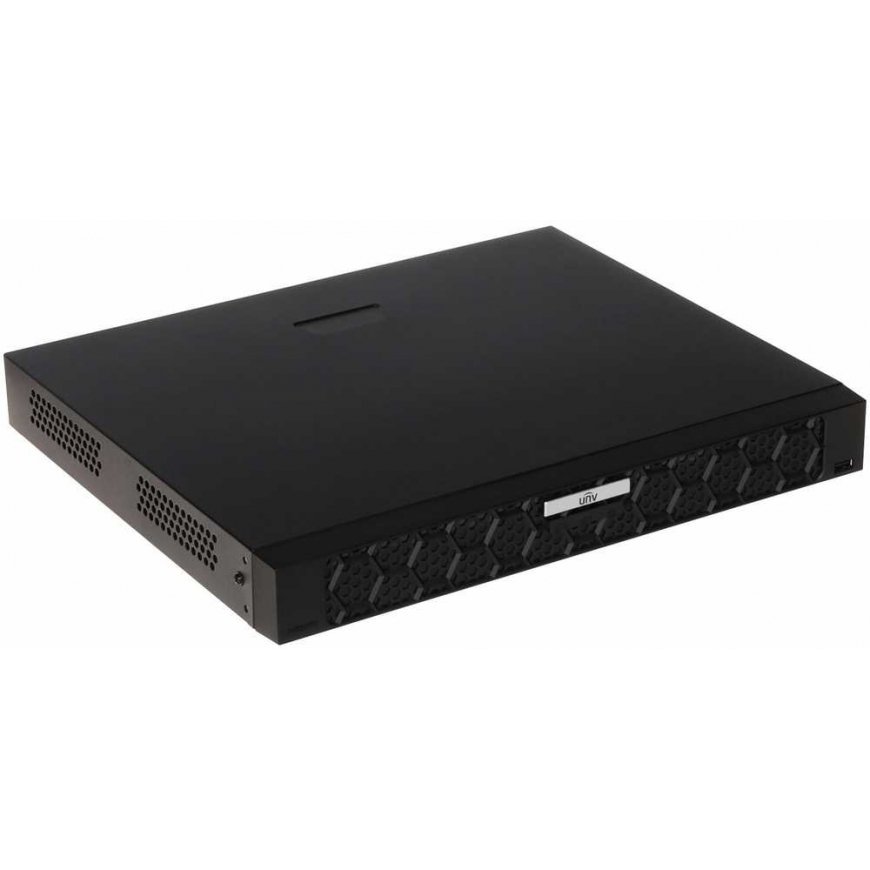

IP RECORDER NVR502-09B 9 CHANNELS UNIVIEW
629,00 €
609,00 €
Kuumakse alates 16.58 €
3584533 NVR502-09B
6937096316217
2026-07-29
Kauba vastu huvi?
The NVR502-09B digital recorder is a professional device used in IP surveillance installations.
| Standard : | TCP/IP |
| Supported resolutions : | max. 16 Mpx - 4608 x 3472 px |
| Video outputs : | 1 pc HDMI 4K 1 pc VGA There is an option to configure the SPOT function on one of the outputs |
| Audio service : | 9 Channels - Audio from cameras Bidirectional audio streaming support Sound detection |
| Audio inputs : | 1 pc. CINCH |
| Audio outputs : | 1 pc. CINCH |
| Image compression method : | Ultra 265 / H.265 / H.264 |
| Bandwidth (bitrate) : | max. 320 Mbps |
| Hard drives serviced : | 2 x 8TB SATA |
| Recording modes : | Manual, alarm, motion detection, schedule |
| Archiving on external media : | Archiving to USB storage device (pendrive, external disk) |
| Searching and playing back recordings : | Search for recordings by time and event type. Playback: forward, backward, speed up, slow down Advanced search (within seconds) Playback of recordings from up to 9 cameras simultaneously |
| Network interface : | 2 x RJ-45 10/100/1000 Base-TX |
| Network functions : | Full network support, Remote backup, Integrated web server max. 128 online users |
| Network protocols : | TCP/IP , P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| ONVIF : | ✔ |
| Default IP address : | DHCP or 192.168.1.30 |
| Default user image/admin password : | admin / 123456 |
| Access from mobile phone : | Port: 80 or cloud access Android: Free app EZView iOS (iPhone): Free app |
| Access ports via www : | 80, 554 |
| Access port via program to PC : | Port: 80 or cloud access - PC: Free program |
| Access ports via mobile app : | 80 |
| RTSP URL : | rtsp://192.168.1.30:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.30:554/unicast/c1/s1/live - Auxiliary stream |
| USB : | 2 x USB 2.0 1 x USB 3.0 |
| Serial ports : | RS-485 |
| Alarm inputs/outputs : | 8 / 2 |
| PTZ control : | PTZ Uniview cameras RS-485 - PELCO-D/P and others |
| Motion detection : | ✔ |
| Advanced video analysis : | ✔ |
| Selected features : | The functions are performed in cooperation between the registrar and the video cameras supporting these functions. Advanced video analytics: crossing lines , intrusion , entering a marked area, leaving a marked area, rejected/missing object , scene change , people counting , crowd size estimation, object tracking Smoke and temperature detection, fire detection Motion detection with human silhouette/vehicle recognition Intelligent human silhouette recognition and person movement tracking SMD PLUS - search for classified objects: human, motor vehicles, non-motor vehicles Corridor mode - useful for monitoring corridors, entrance gates and narrow spaces VIDEO signal loss alarm ANR - saving video to the card when there is no connection to the player (network crash) and later synchronization |
| Mouse service : | ✔ |
| IR remote control included : | - |
| Switch PoE : | - |
| Power supply : | 12 V DC / 3.33 A (power supply included) |
| Power consumption : | ≤ 20W (without HDD) |
| Working temperature : | -10°C ... 55°C |
| Weight : | 1.7 kg |
| Dimensions : | 380 x 321 x 53 mm |
| Languages supported : | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Slovak, Italian |
| Manufacturer / Brand : | UNIVIEW |
| Warranty : | 3 years |
