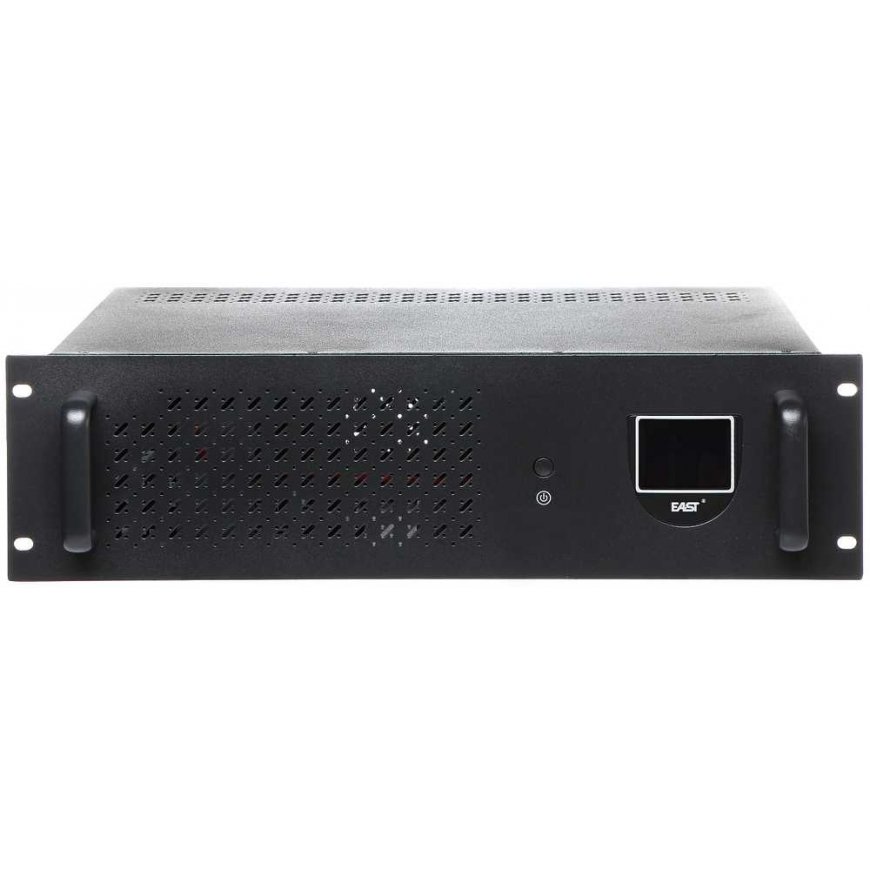

UPS POWER SUPPLY AT-UPS1500R-RACK 1500 VA EAST
UPS POWER SUPPLY AT-UPS1500R-RACK 1500 VA EAST
UPS POWER SUPPLY AT-UPS1500R-RACK 1500 VA EAST

Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

UPS POWER SUPPLY AT-UPS1500R-RACK 1500 VA EAST

219,00 €
Kuumakse alates 6.54
3564020

AT-UPS1500R-RACK

5904501670395

Tarneaeg 1-14 t.p.

Kogus
Kauba vastu huvi?
(Lugege teenusetingimusi)

The UPS AT-UPS1500R-RACK is equipped with many advanced technologies that ensure active monitoring of the power supply network.

The device is mounted in a RACK 19" cabinet.

Power supplies constantly analyze voltage, frequency, and phase shift angle, and also filter the voltage transmitted to connected devices. When a network failure is detected, the power supply immediately switches to autonomous operation mode and continues to power the equipment using energy stored in internal batteries.

The device works with power supplies with active power factor correction (APFC).

Active power : 900W
Apparent power : 1500 VA
Input voltage : 230VAC ± 25%
Input frequency : 50 / 60 Hz (automatic detection)
Output voltage : 230 V AC ± 10 % (approximate sine wave)
Output frequency : 50/60Hz ±1%
Tension adjustment : -
Frequency regulation : -
Switching time : 2 ... 7 ms (typical), max. 10 ms
Charging time (up to 90% level) : ≤ 8 hours
Battery : 2 pcs. - 12V/8Ah

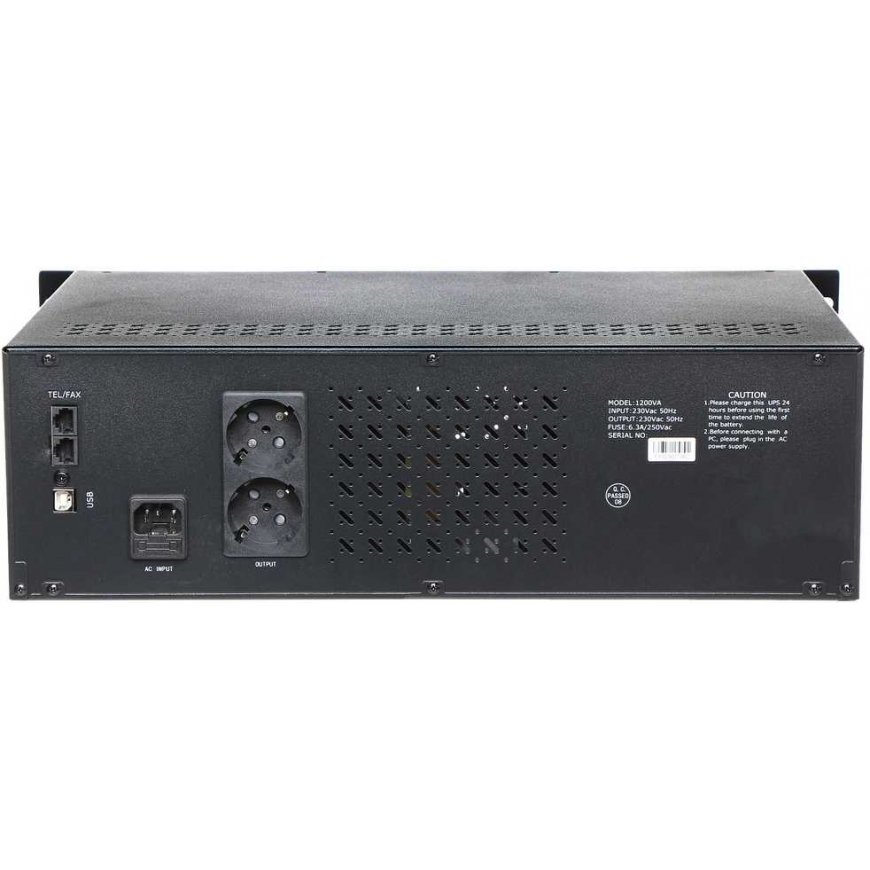

Number of outputs : 2 pcs. CEE 7/3 (Schuko)
Management software : UPSmart (Windows 95/98/2000/XP/Vista/7/8/10, Linux)
Protective measures : Fuse Surge protection Overcurrent protection Filter Ethernet
Working status indication : LCD display: input/output voltage level, input frequency, battery capacity, protection, alarm, audible alarm
Main features : Automatic AVR voltage regulator "Cold start" function Cooperation with generators Remote control - UPSmart application included Built-in EMI, RFI filter Excellent microprocessor control, ensuring high reliability self-diagnostic function USB interface
Purpose : monitoring systems data centers network, servers, workstations industrial equipment
Body type : Rack 19"
Operating temperature/relative humidity : 0 °C ... 40 °C / 0 ... 90 %
Weight : 13.3 kg
Dimensions : 440 x 310 x 132 mm, RACK 19", 3U
Manufacturer / Brand : EAST
Warranty : 2 years

Instruction EN
Software manual, EN
CE Declaration of Conformity
