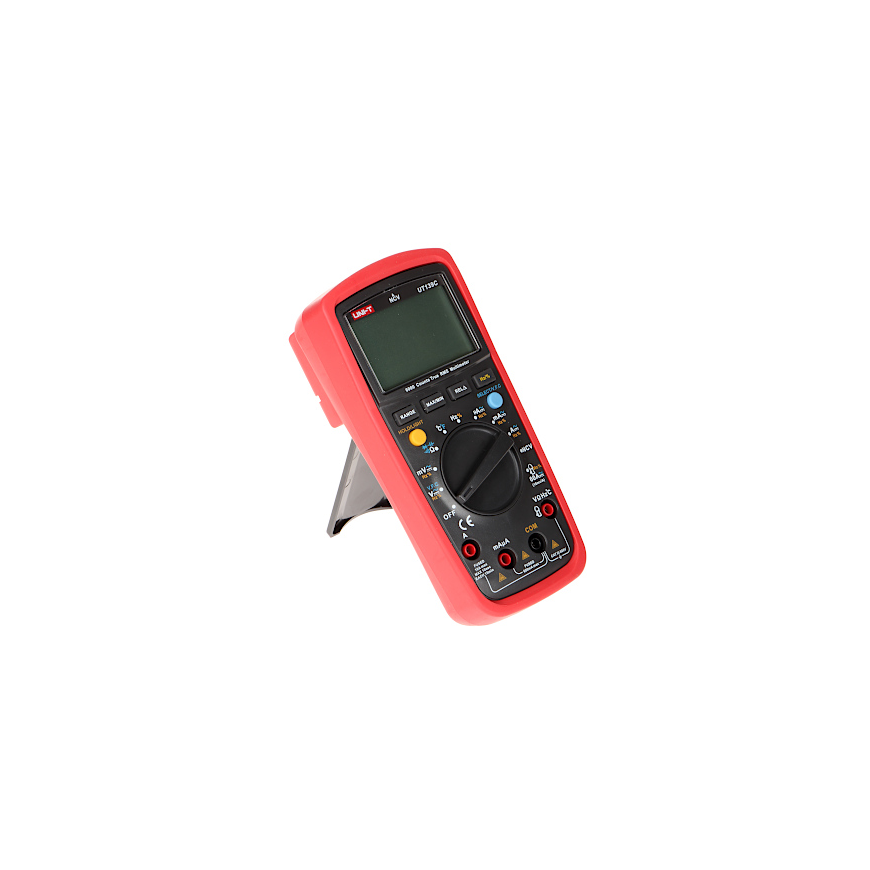

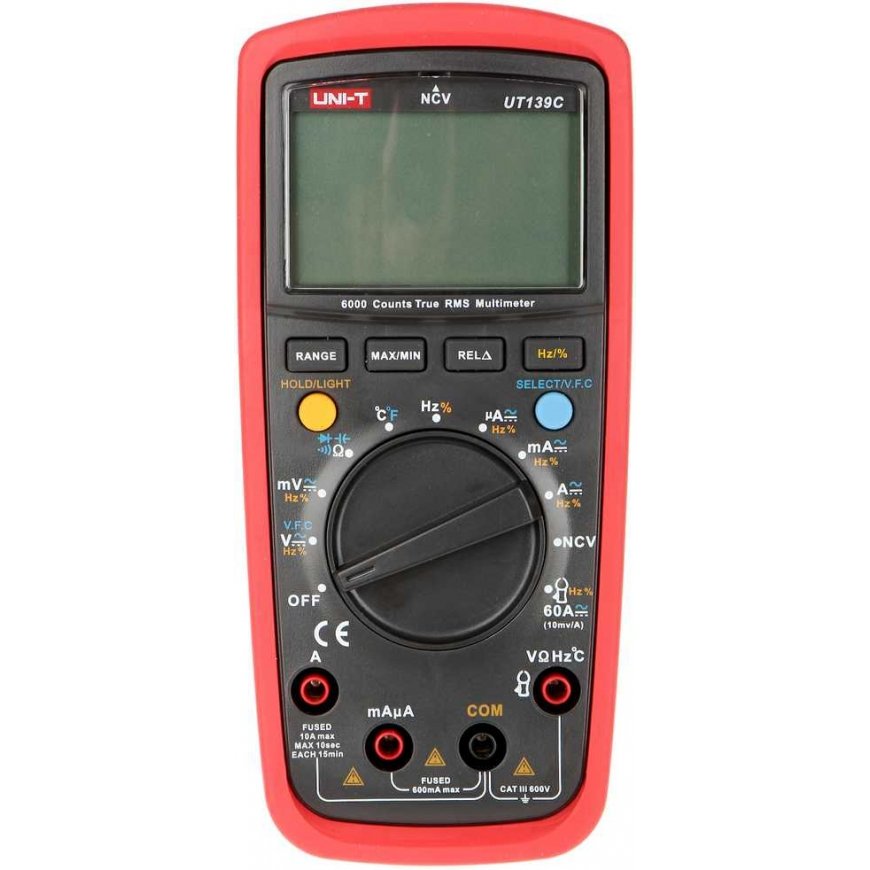

Multimeter UT139C CATIII with frequency, capacitance, temperature measurement, DC circuit, diode test UNI-T
3562152 MIE0156
6935750531396
2026-07-29
UT139 Series True RMS Digital Multimeters
UT139 series UT139 is a CAT III 600V digital multimeter for electricians. Its NCV function can effectively check the electrical condition by measuring the EM field intensity. The new UT139E/S models have special functions such as LoZ (ACV) for measuring "ghost" voltage. The built-in 31-segment analog scale also allows electricians to better visualize the measurement results. The UT139S is designed with a black EBTN display, making it a great meter for working in dark environments.
UT139 series models: UT139A, UT139B, UT139C, UT139S
Features of UT139 Series True RMS Digital Multimeters
Certificates: CE, UKCA, cETLus
● MAX/MIN/REL modes
● Data hold, LED backlight, automatic power off
● Full range protection (600V)
● True RMS value
● NCV
● Automatic/manual range selection
UT139 Series True RMS Digital Multimeter Specifications
Specifications | Range | UT139A | UT139B | UT139C | UT139S |
DC voltage (V) | 600V | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) |
AC voltage (V) | 600V | ±(1%+3) | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
Direct current (A) | 10A | ± (0.7%+2) | ±(0.7%+2) | ±(0.7%+2) | ±(0.7%+2) |
Alternating current (A) | 10A | ±(1%+3) | ±(1%+3) | ±(1%+3) | ±(1%+3) |
Resistance (Ω) | 20MΩ | ±(1%+2) | |||
40MΩ | ±(0.8%+2) | ||||
60MΩ | ±(0.8%+2) | ±(0.8%+2) | |||
Capacity (F) | 99.99 mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | |
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | |
Temperature (°C) | -40°C ~ 1000°C | ±(1%+3) | ±(1%+4) | ||
Temperature (°F) | -40°F~1832°F | ±(1.5%+5) | ±(1.5%+5) | ||
Features | |||||
Show number | 2000 | 4000 | 6000 | 6000 | |
Auto range/manual range | √ | √ | √ | √ | |
Bandwidth (Hz) | 45Hz~400Hz | 45Hz~1kHz | 45Hz~1kHz | 45Hz~400Hz | |
NCV/Continuity signal | √ | √ | √ | √ | |
Duty cycle | 0.1%~99.9% | √ | √ | √ | |
Diode | About 2V | About 3V | About 3V | About 3V | |
LPF/LoZ (ACV) | √ | ||||
Analog tape | √ | ||||
General characteristics | |||||
Power supply | 1.5V battery (R6) x 2 | ||||
Screen | 58mm x 36mm | ||||
Product color | Red and gray | ||||
Product net weight | UT139A/B/C: 354g; UT139S: 345 g | ||||
Product size | 170mm x 80mm x 48mm | ||||

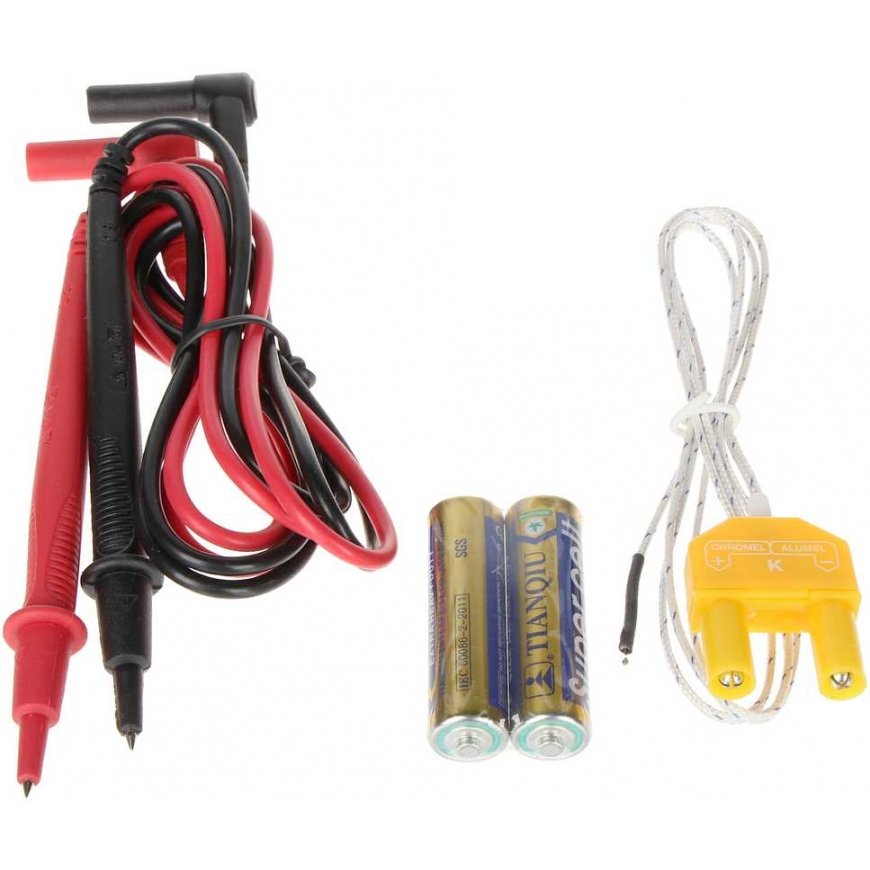

Standard accessories | UT139A/B: Batteries, test leads; | ||||

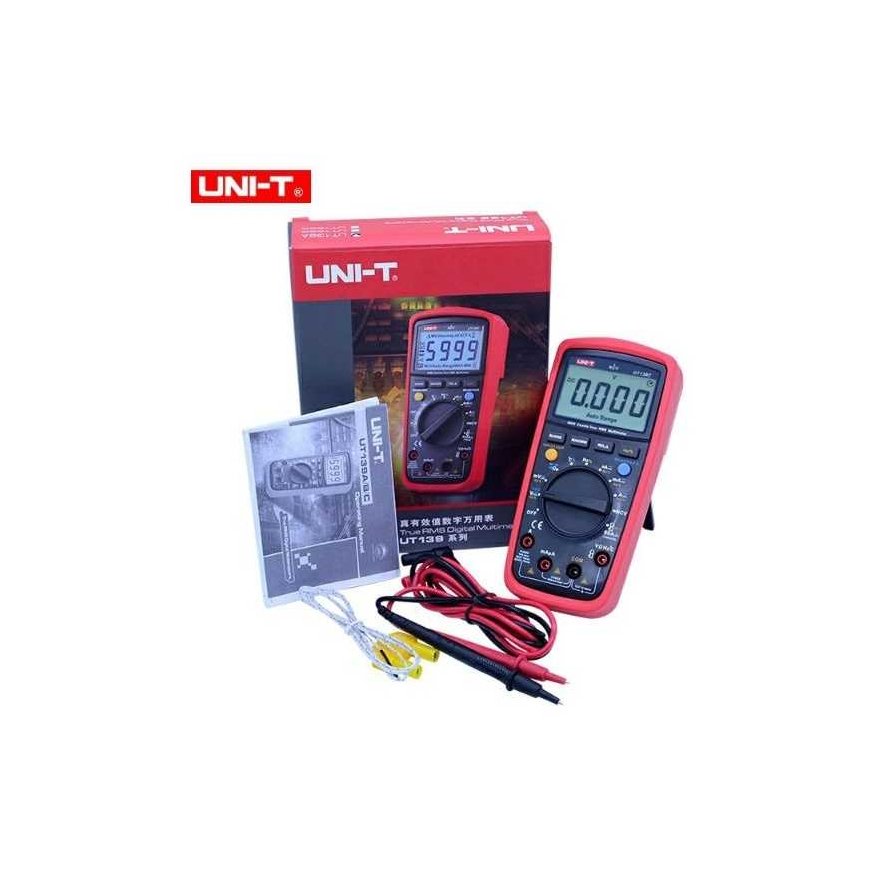

Standard individual packaging | Gift box, English manual | ||||
Standard quantity per box | 20 pcs. | ||||
Standard cardboard box measurement | 450mm x 330mm x 340mm | ||||
Standard gross weight of a carton box | 12.2 kg | ||||
Additional accessory | UT139C: current sensor AC/DC 40A | ||||
