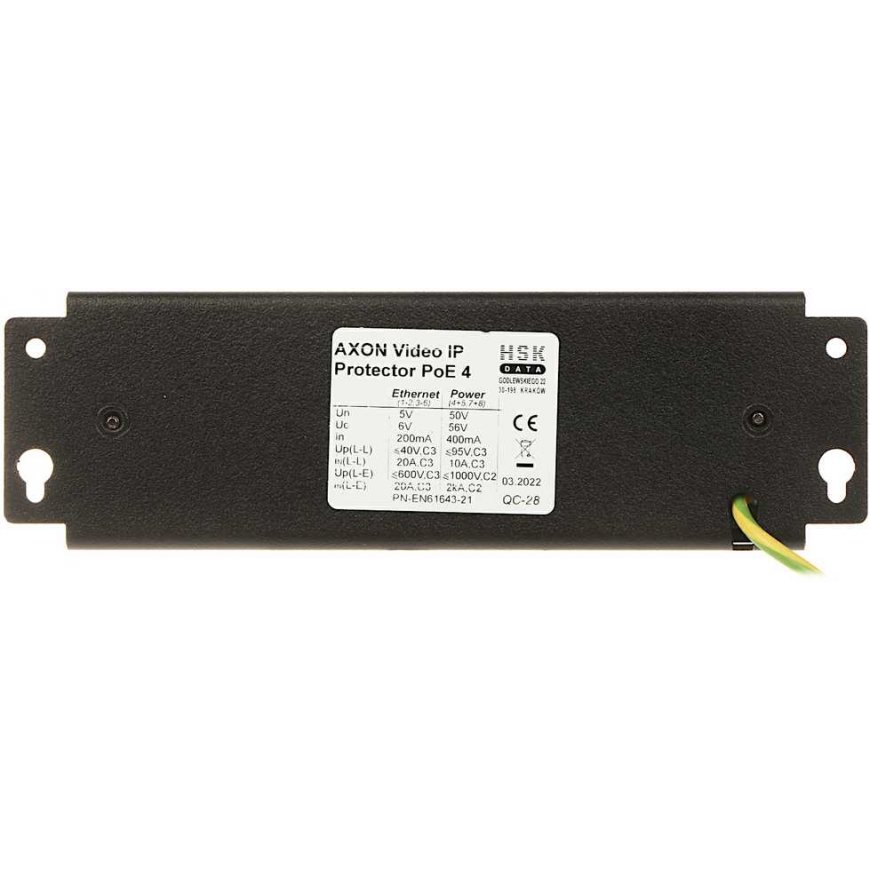

Acar SURGE LIMITER AXON-VIDEO-IP-4POE
3557620 VideoIPProtectorPoE4
5904743335502
2026-07-29
The AXON-VIDEO-IP-4POE device is used to protect devices from overvoltages used in industrial digital television systems that communicate via Ethernet 10/100 Mb/s.
The limiter is specifically designed to protect IP cameras powered remotely using PoE technology, i.e. via unused wire pairs in the transmission cable.
It has 4 independent channels which allows you to protect the signal and video camera path.
Both lines are protected by surge arresters that conduct the charge to ground, and also protect the lines between themselves within the same pair of wires.

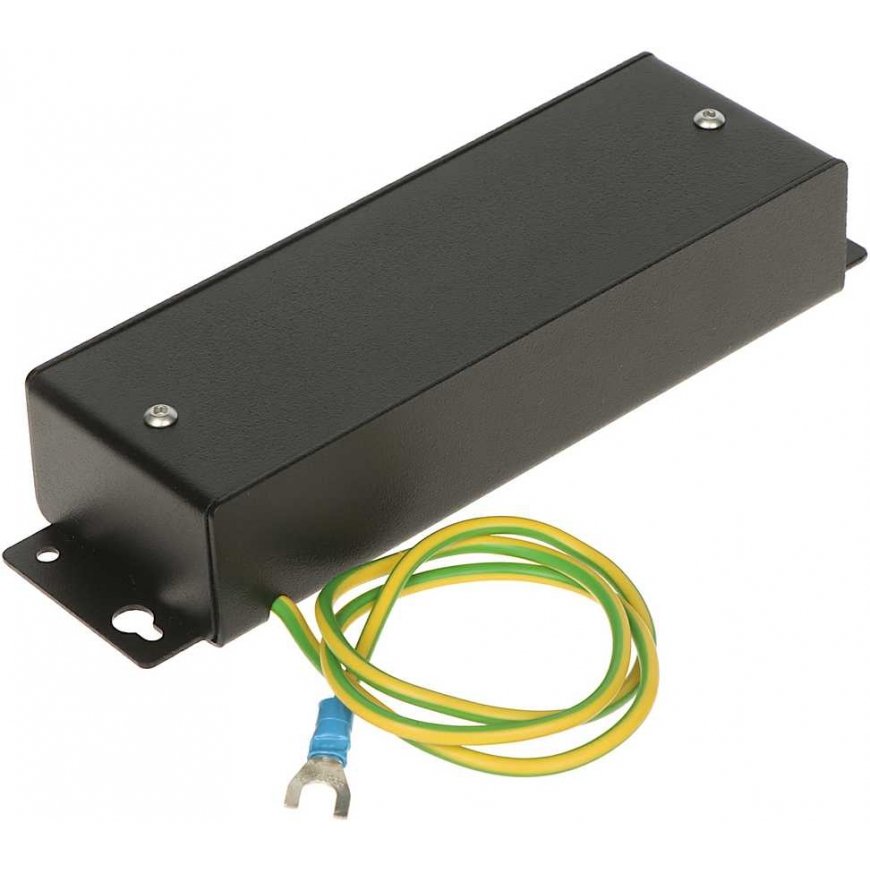

The metal housing guarantees greater resistance to various types of mechanical damage and ensures shielding of the entire security system.
| Number of channels : | 4 |
| Signal channel - lines 1, 2, 3, 6 : | |
| Transmission speed : | 10 / 100 Mbps |
| Rated voltage : | 5V |
| Maximum voltage : | 6 V |
| Line-to-line protection level : | ≤ 40 V - 1 kV/µs [C3] |
| Protective voltage line-to-ground : | ≤ 600 V - 1 kV/µs [C3] |
| Rated discharge current (line-line) : | 20 A - 10/1000 µs [C3] |
| Rated discharge current (line-ground) : | 20 A - 10/1000 µs [C3] |
| Power channel - lines 4, 5 and 7, 8 : | |
| Nominal supply voltage : | 50V |
| Maximum supply voltage : | 56 V |
| Rated supply current : | 400mA |
| Line-to-line voltage protection for power supply : | ≤ 95 V - 1 kV/µs [C3] |
| Protective voltage line-to-ground for power supply : | ≤ 1000 V - 1.2/50 µs [C2] |
| Nominal discharge current for line-to-line power supply : | 10 A - 10/1000 µs [C3] |
| Nominal discharge current for power supply (line-ground) : | 2 kA - 8/20 µs [C2] |
| General data : | |
| Security parameters : | Complies with PN-EN61643-21 |

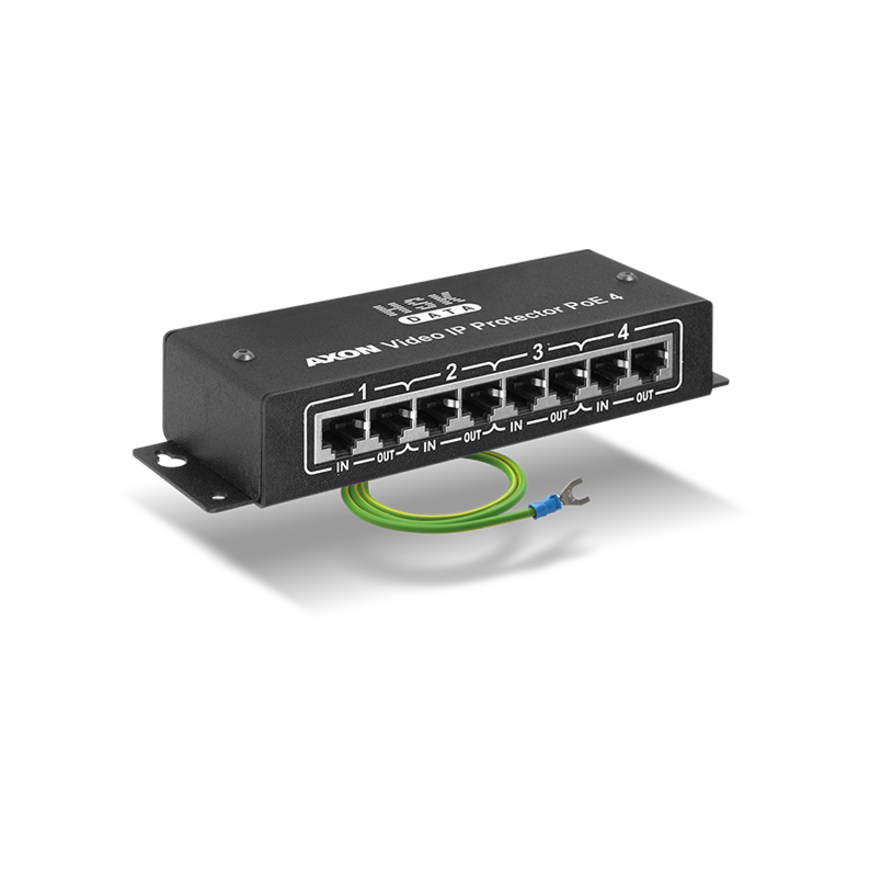

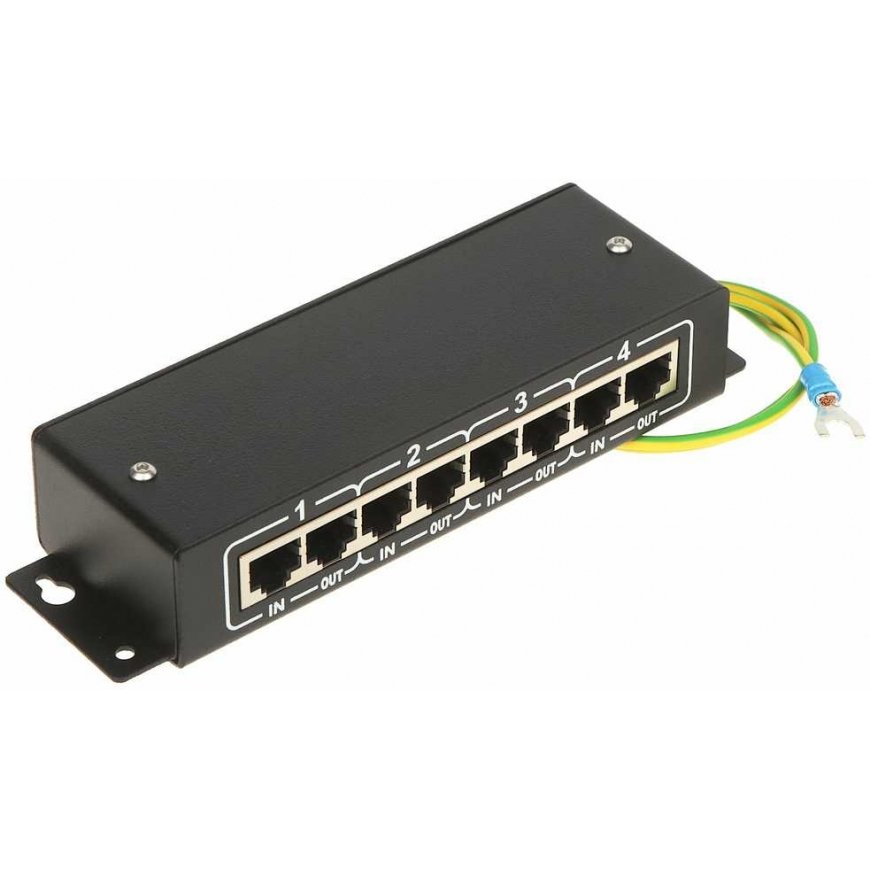

| Socket type : | 8 x RJ-45 (8P8C) Shielded Jack (4 Inputs, 4 Outputs) |
| Body : | Metal, black |
| Weight : | 0.32 kg |
| Dimensions : | 167 x 50 x 32 mm |
| Grounding wire length : | 55 cm |
| Warranty : | 2 years |
