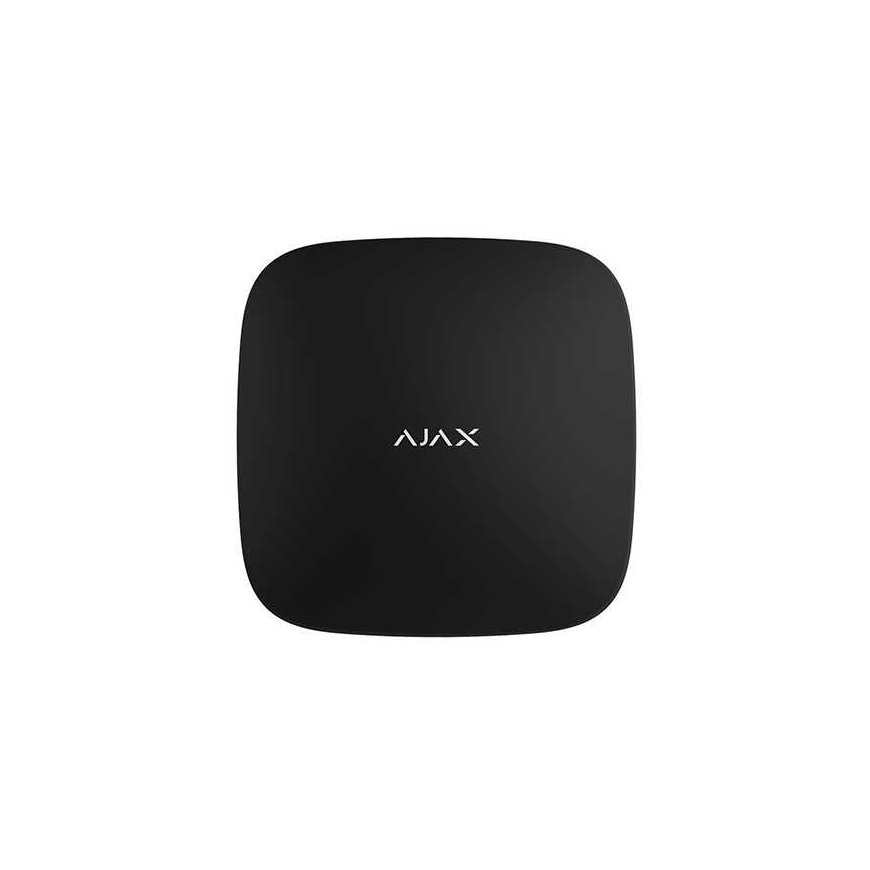

Ajax Hub Plus smart central unit (black)

Ajax Hub Plus smart control panel (black)

The smart control panel "Ajax Hub" ensures smooth and uninterrupted operation of the entire system, as it maintains communication with all sensors that make up the system, controls their operation, receives and processes the data they record and, if necessary, immediately informs about a possible break-in, fire or flood risk. Notifications are sent to both you and the security service, if your home security system is connected to the system of such a company. You can manage and change the settings of the smart control panel "Ajax Hub", as well as all other "Ajax" devices, using the "Ajax Security System" application directly on the screen of your smartphone or computer.

Latest technologies
Ajax System specialists have developed a new wireless technology called Jeweler. This unique radio wave technology ensures a secure, efficient and reliable connection between Ajax devices. In addition, the system no longer requires wires, so installing Ajax devices is quick and easy.

Safe and reliable
The smart control panel "Ajax Hub" ensures continuous smooth operation of the security system at all times, as the device supports not only GSM, but also wired Internet. In case of temporary power outages, the smart control panel "Ajax Hub" will also operate with the help of a backup lithium-ion battery that lasts up to 15 hours. In addition, the device has an antivirus and anti-hacking program, a system that prevents the communication signal from being suppressed, and the signal itself is encrypted.

Checks, analyzes, reports
There is a two-way communication between the smart control panel "Ajax Hub" and the detectors - the control panel, by periodically sending signals to the detectors, can check whether they are working properly. Meanwhile, the "Ajax Hub" receives the data recorded by the latter from the detectors that make up the system, analyzes it and, if necessary, immediately informs you about a threat to home security by sending a message or calling your smartphone. The smart control panel "Ajax Hub" will also remind you to turn on the alarm when leaving the house and turn it off when returning.

Easy to manage and expand the system
By downloading the free Ajax Security System app to your smart device, you will be able to control not only the Ajax Hub smart control panel, but also all other security system devices. Connecting a new detector to the system is extremely simple - by scanning the QR code on the sensor. Up to 100 devices can be assigned to one Ajax Hub smart control panel. In addition, the software system is updated automatically and free of charge.

Verified quality
The Ajax MotionProtect device meets the strict quality and reliability requirements of the European standard EN 50131 for security system manufacturers.
* The Ajax Hub is not a standalone device. To use it, you need a smart device with Android 4.1, iOS 9 or a newer version of these operating systems and a GSM connection.

Technical data:

• Size: 162.7x162.7x35.9mm
• Weight: 320 g
• Power: 110-250V AC
• Communication signal power: 25 mW
• Operating temperature: from 0°C to + 50°C
• Communication: GSM (850/900/1800/1900 MHz), Ethernet
• Communication protocol: Jeweller (868.0-868.6 MHz)
• SIM compatibility: Mini SIM 2G
• Maximum distance between the control panel and other devices: 2000 m (in open space)
• Backup battery: Li-Ion 2 Ah (lasts up to 15 hours)
• Smart app: iOS 9 or later, Android 4.1 or later
• Video surveillance: video cameras with RTSP
• Number of users: 50
• Maximum number of devices: 100
• Burglary protection: yes

Complete set

• Smart control panel
• Power cable
• Ethernet cable
• Installation kit
• Instruction
