Plug Switch Atte IPUPS-17-11-H

375,97 €
Kuumakse alates 10.58 €
3112437

IPUPS-17-11-H

5902143690399

2026-07-31

Kogus

Kauba vastu huvi?
(Lugege teenusetingimusi)
LAN ports :
  • 1 x RJ45 10/100 Base-T - Uplink,
  • 17 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
    • Management :
    LEDs : AC , DC , CHARGING (battery charging), PoE
    Transmission speed :
  • 10 / 100 Mbps : 1 x Uplink port,
  • 10 / 100 Mbps : 17 x LAN & PoE port
    • Maximum output power :
  • 40 W @ Passive PoE - LAN1 ... LAN4 ports,
  • 60 W @ Passive PoE - LAN5 port,
  • 30 W @ PoE (802.3af/at) - LAN1 ... LAN5 ports
    • Maximum total power : 130 W
    Working mode :
  • Standard : 100 m @ 10/100 Mb/s - LAN1 ... LAN6 ports
  • Long Range: 280 m @ 10 Mb/s - LAN1 ... LAN4 ports; 100 m @ 10/100 Mb/s - LAN5, LAN6 ports
    • Main features :
  • Independent power on and off PoE power for each port LAN 1 ... LAN 17
  • The modular design simplifies the maintenance task and helps to expand the system quickly and easily
  • The raster module assembly system facilitates the expansion of the device with other subsequent modules
  • 2 x Place for the battery: 12 V / 18 Ah

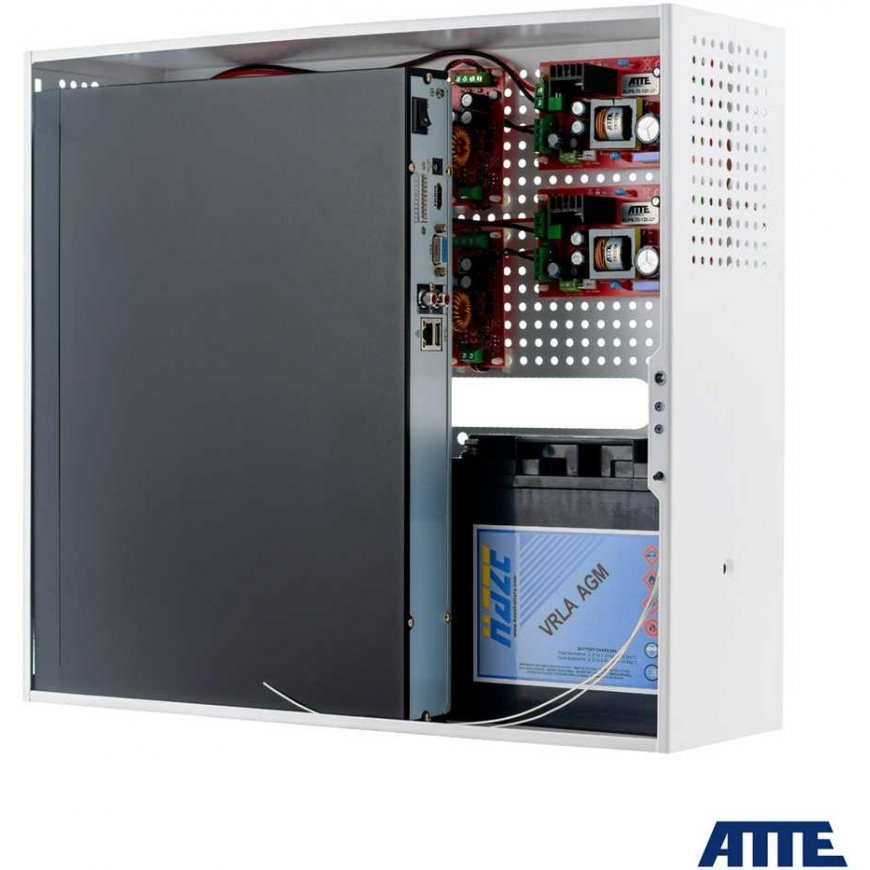

  • Recorder location (*(NVR)*)
  • Battery charging current: 1 A / 2 A - (set by switch JP1)
  • Battery - Protection against reverse polarity connection, Protection against deep battery discharge
  • OC type technical outputs signaling voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF)
  • Power supply thermal protection: 130 °C
  • Overload protection
  • LAN & PoE ports - Surge protection, Surge protection
  • TAMPER switch, signaling the opening of the casing
  • Sealing class : IP20
    • Meals : 190 ... 260 V AC
    Weight : 4.70 kg
    Dimensions : 455 x 405 x 150 mm
    Manufacturer / Brand : ATTE
    Warranty : 3 years
