TST Delta POWER SUPPLY LZ-8/E
29,00 €
3062200 LZ-8/E
5902887041976
Tarneaeg 1-14 t.p.
Kauba vastu huvi?

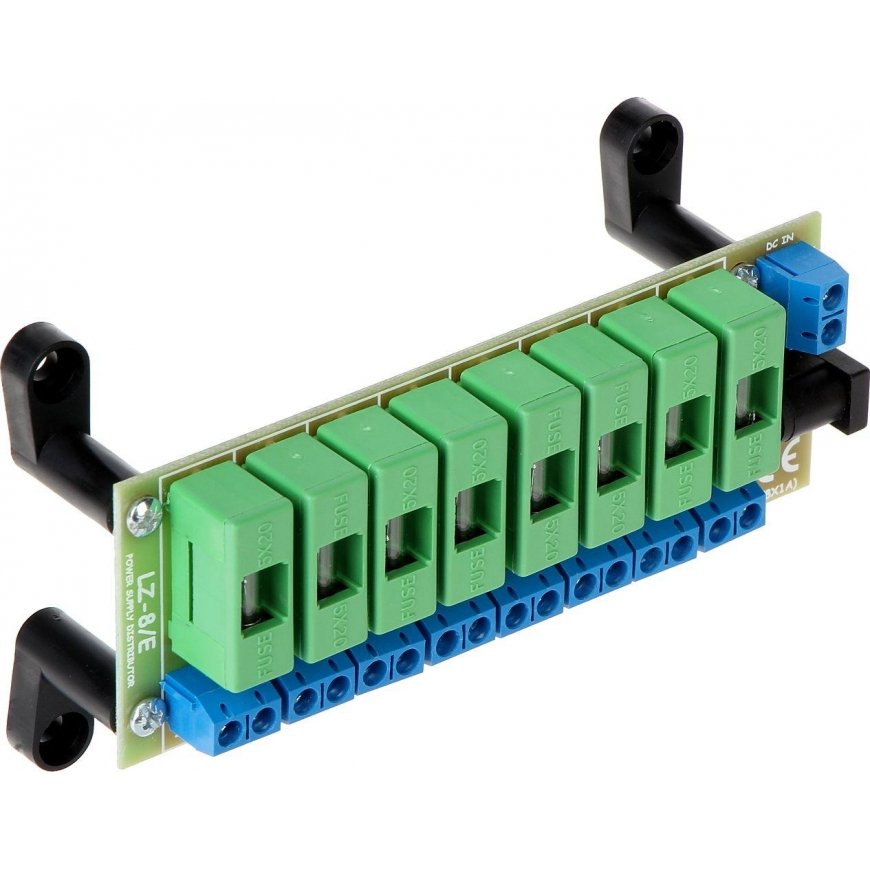

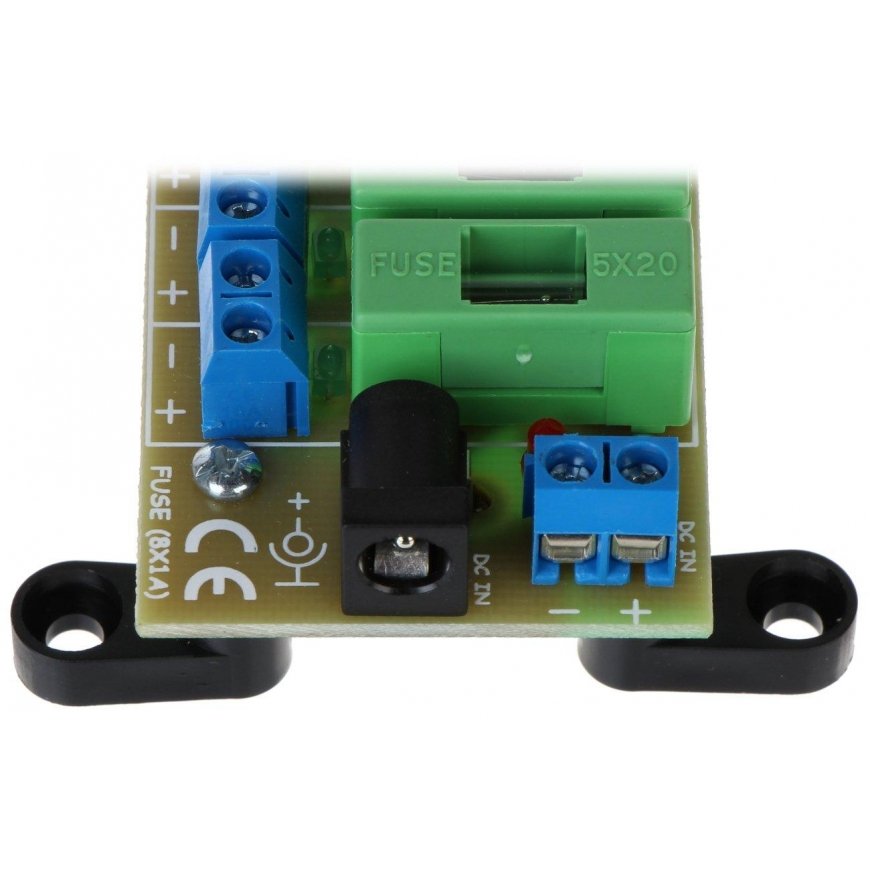

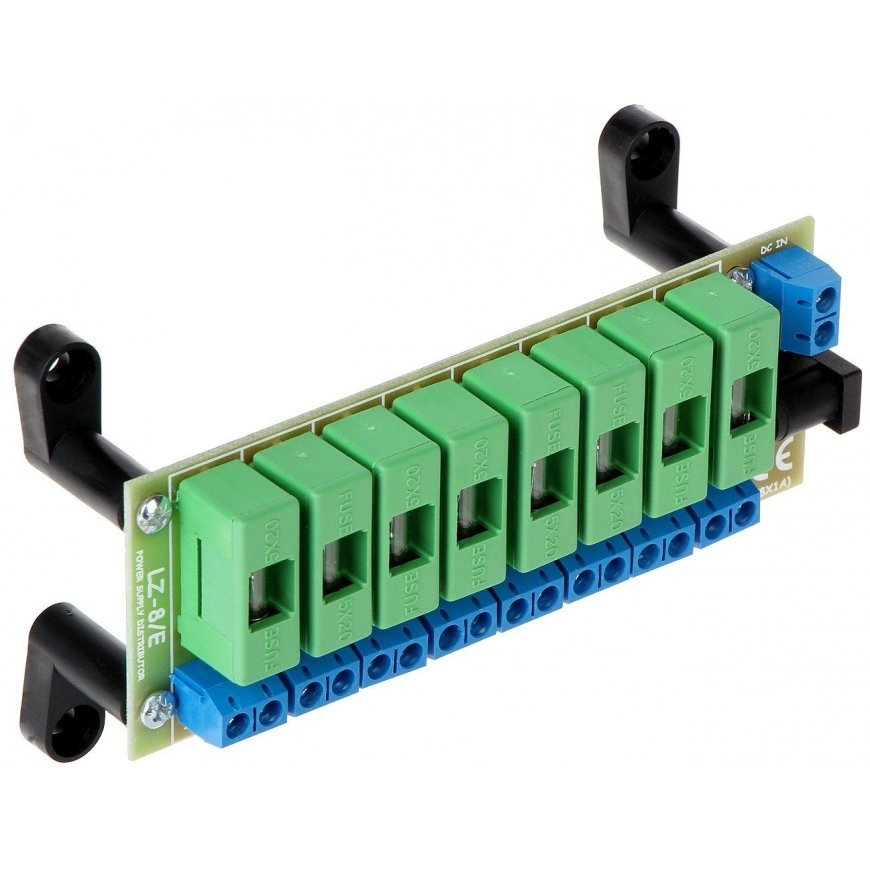

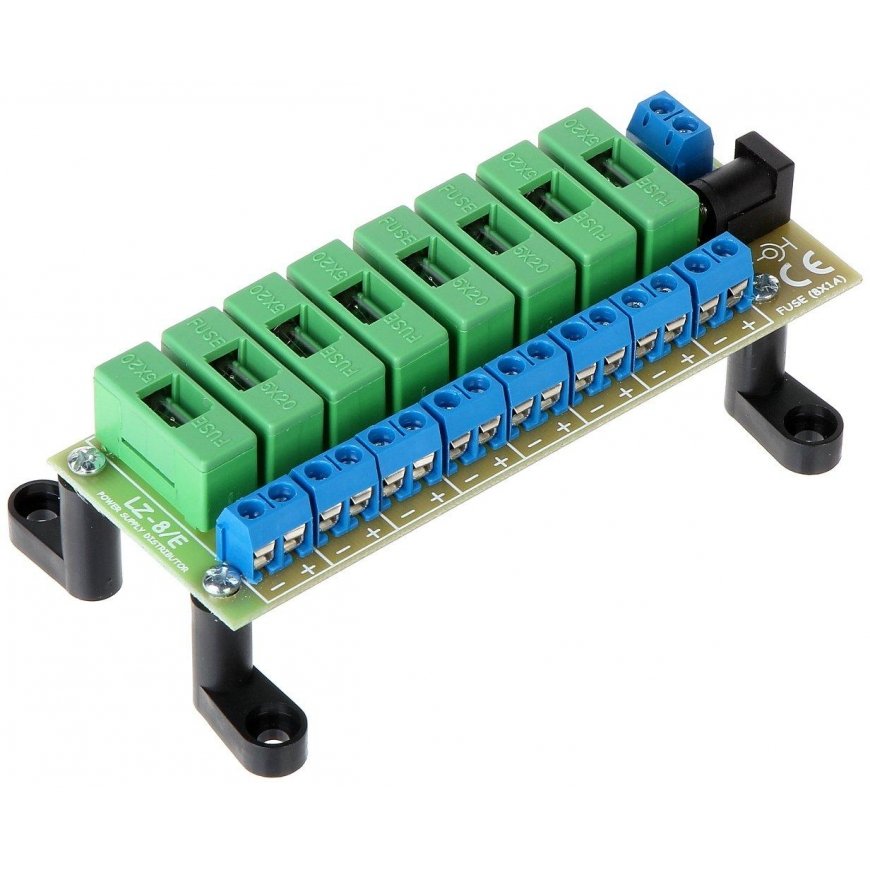

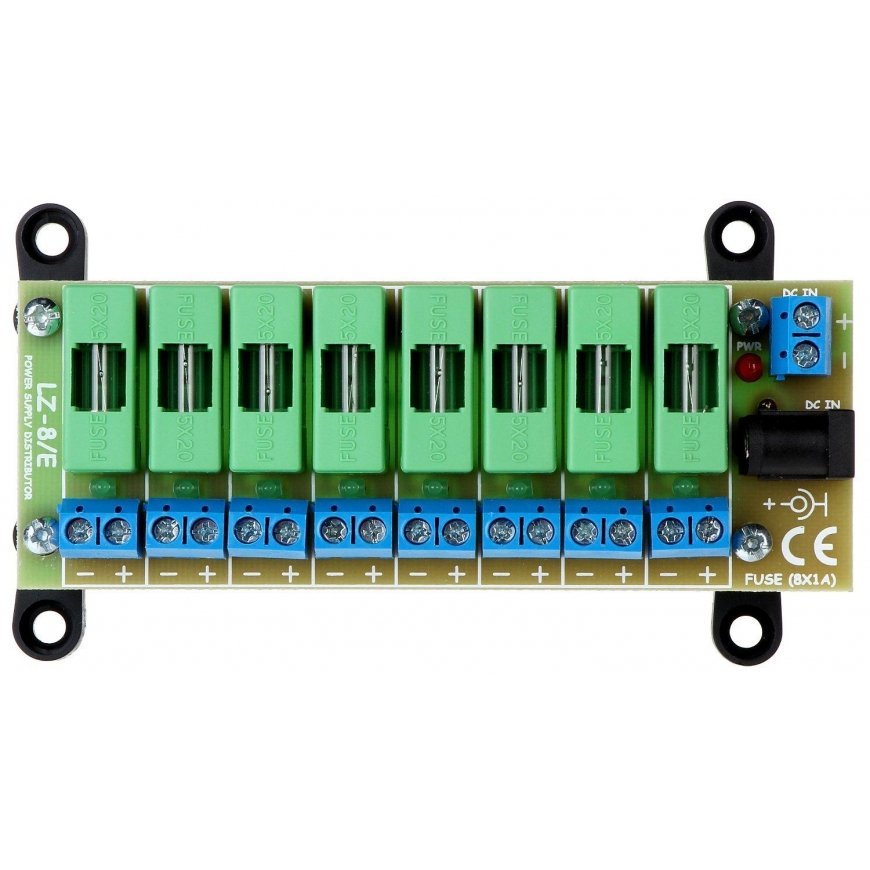

LZ-8/E is a passive element and serves for power distribution.
Adhesive spacers allow for easy mounting of the printed circuit board.
An indisputable advantage of using LZ-8/E in surveillance systems with power from a central point is additional anti-sabotage protection.
Without individual protection for each current line, it is enough for an intruder to short-circuit a single cell to de-energize the entire system.
| Number of power inputs : | 2 |
| Number of power outputs : | 8 |
| Maximum supply voltage : | 0 ... 24 V DC (typically 12V) |
| Maximum supply current : | 8 A terminal strip 4 A 5.5/2.1 socket |
| Single output max. output current : | 1 A |
| Protection type : | 8 x 1 A Fuse (5/20mm), delay |
| Type of power connections : | Input: socket 2.1/5.5 mm / cable terminal Output : Cable terminals |
| Working temperature : | -50 °C ... 55 °C |
| Permissible relative humidity of the environment : | < 95% |
| Dimensions : | 110 x 41 x 35 mm |
| Weight : | 0.060 kg |
| Manufacturer / Brand : | DELTA |
| Warranty : | 3 years |
