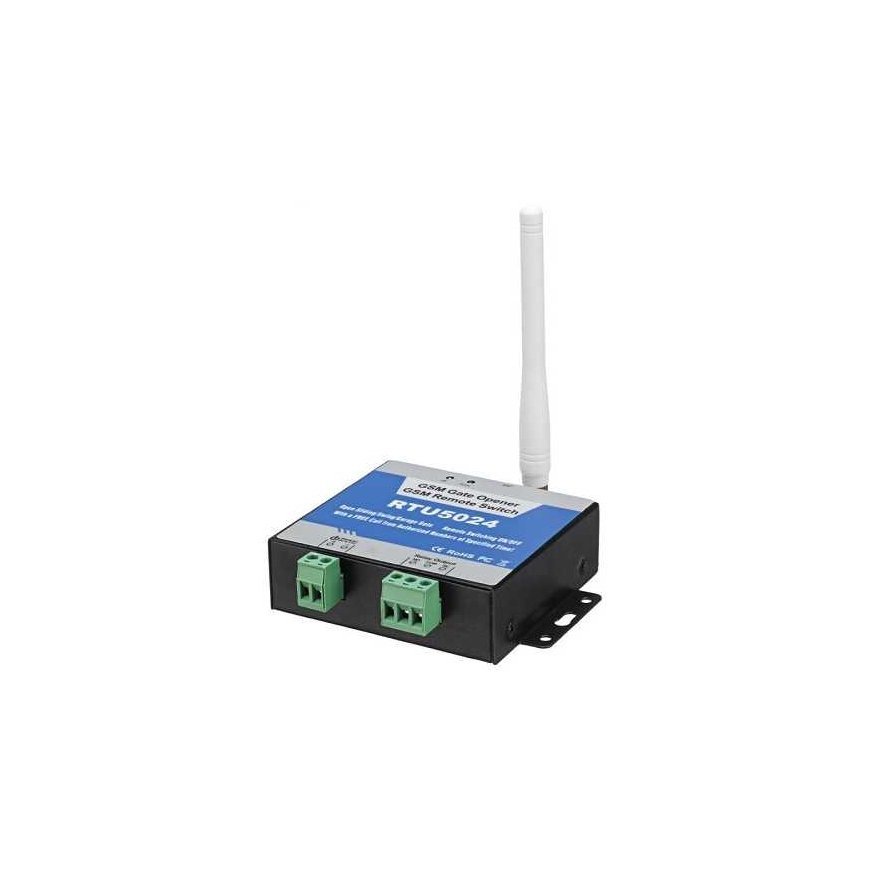

Extra Digital RTU5024 GSM control module (communicator)

RTU5024 GSM control module (communicator).


Features:

• Electronic GSM controller that controls devices in the GSM network remotely, without using the Internet and data transmission.
• The GSM controller RTU5024 can be successfully used not only for controlling the barrier, but also for other tasks when it is necessary to realize remote control or access control. The module will be useful when you need to automate the mechanical opening and closing action, remote activation and deactivation, or to install an access control system.
• Remote control of the device - by phone with free calls. No remote control, keys or internet required.
• No call charges. The device identifies the caller's number and the relay switch rejects the call from the authorized number.
• Easy programming and connection. Users are added or removed via SMS. Number of subscribers: up to 200. Safe - caller ID is identified and unauthorized callers are ignored.
• The relay closing or opening time is programmable.
• Can be controlled from anywhere via GSM network, unlimited distance. The frequency of the four bands is applicable worldwide.
• The RTU5024 smartphone app further simplifies configuration and management.
• Once configured, it requires no maintenance.
• Application in various fields. This controller can be connected to a wide variety of electrical (electronic) devices.

Application:

• Rolling or sliding gates, barriers, doors, blinds, garage doors are opened remotely. An ideal solution for a house (cottage) with an automatic gate.
• Residential: door, gate, garage entrance control, control of electronic devices like fan, microwave oven, air conditioner.
• Industrial remote switch equipment, such as: street lights, solar energy equipment, motors, inverters, PLC, pumps, fans, etc.
• In agriculture: remote control pumps, etc.
• In business: remote control electronic boxes, billboards, LED signs, etc.

Technical data:

• GSM frequency: 2G, 4 frequencies 850/900/1800/1900MHz.
• Power supply: 9-24V DC / 2A.
• Outputs: NC/NO relay dry contact, 3A/240V AC.
• Power consumption: 12V; maximum 50mA, average 25mA.
• SIM card: 3V SIM card (mini SIM).
• Antenna: 50 ohm SMA type connector.
• Operating temperature: from -20°C to +60°C, at relative air humidity up to 90%RH.
• Body material: aluminum.
• Dimensions: 102x76x27mm.
• Weight: 108g.
• Compatible battery: 3.7V / 900mAh (sold separately).

Complete set:

• GSM controller.
• GSM antenna.
• Connection adapter x2 pcs.
• Instruction.
