Hismart Power supply 24V, 3.2A, 75W
14,92 €
2907033 LRS-75-24
9990000700288
Tarneaeg 2-4 t.p.
Kauba vastu huvi?

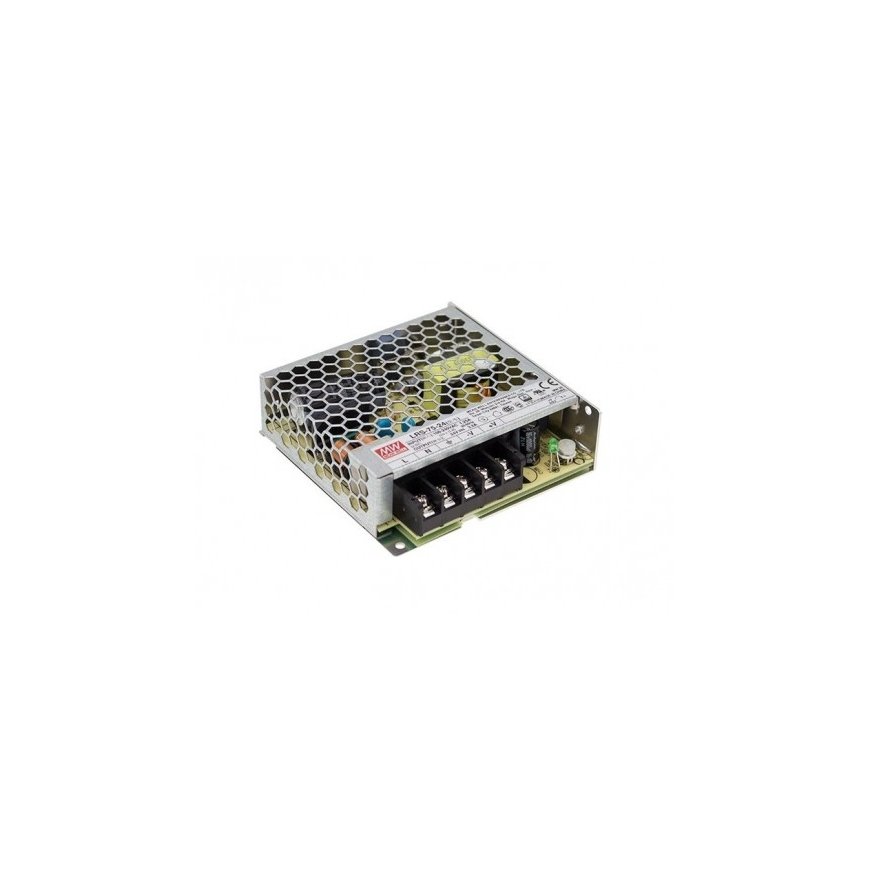

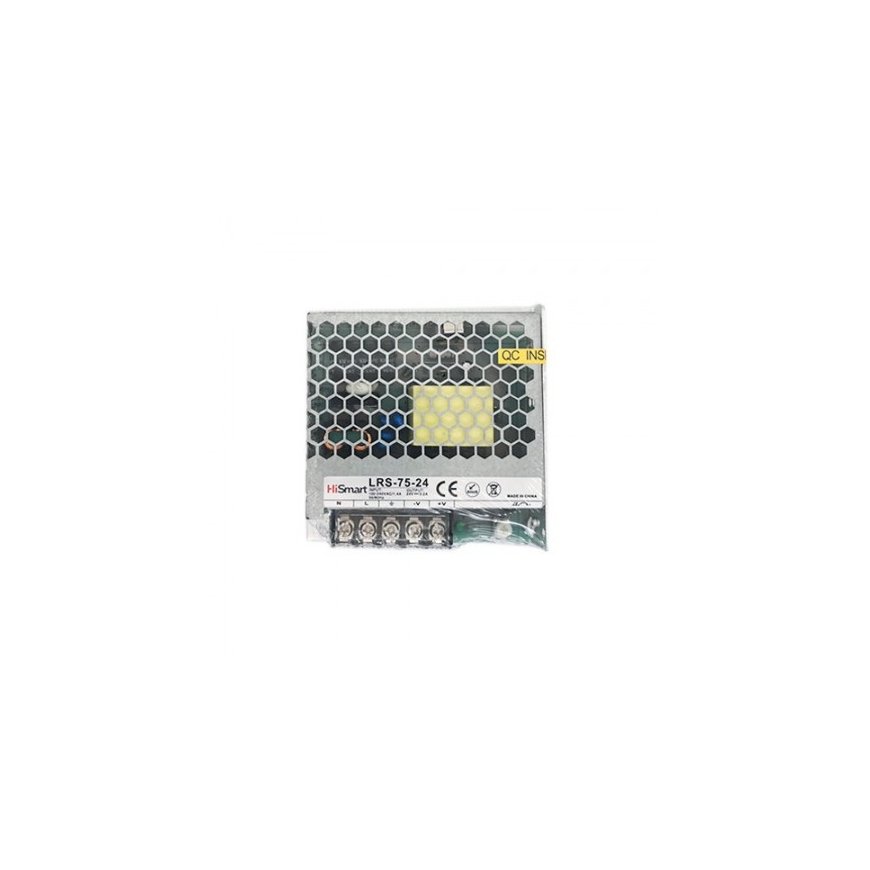

Pulse power supply 24V, 3.2A, 75W.
Features:
- Narrow profile open type power supply operating in pulse mode.
- Miniature size, 1U profile, light weight, high efficiency.
- Protection: against overload, voltage increase, short circuit.
- Cooling by free air convection.
- Power consumption without load: <0.5W.
- Working altitude up to 5000 meters.
Technical data:
- Power supply type: pulsed.
- Input voltage: AC 90-264V. Frequency: 47-63Hz.
- Output voltage: DC 24V.
- Possibility to adjust the output voltage within ±10%.
- Maximum output current: 3.2A.
- Maximum power: 76.8W.
- Irregularities and noise: 150mV pp.
- AC voltage: 1.4A/115V, 0.85A/230V.
- Efficiency: 90%.
- Drain current in the input circuit at AC 240V: up to 0.75mA.
- MBTF: min 660000 hours
- Operating temperature: from -30°C to +70°C.
- Operating humidity: 20%-90%RH.
- Dimensions: 99x97x30mm.
- Weight: 0.25kg.
