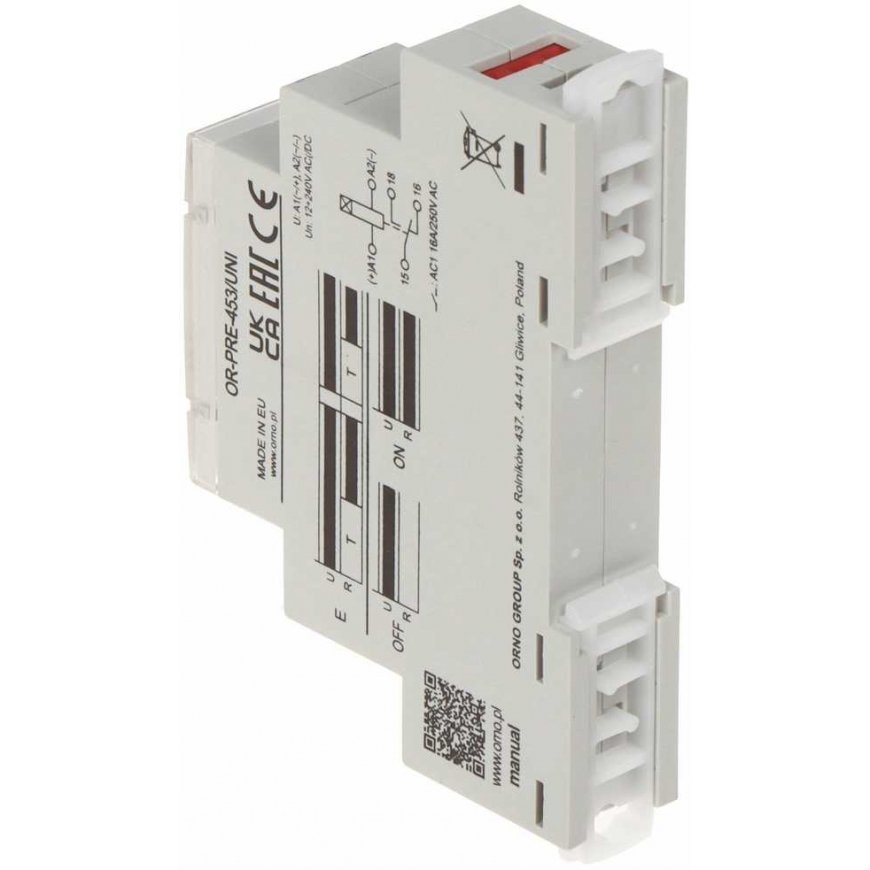

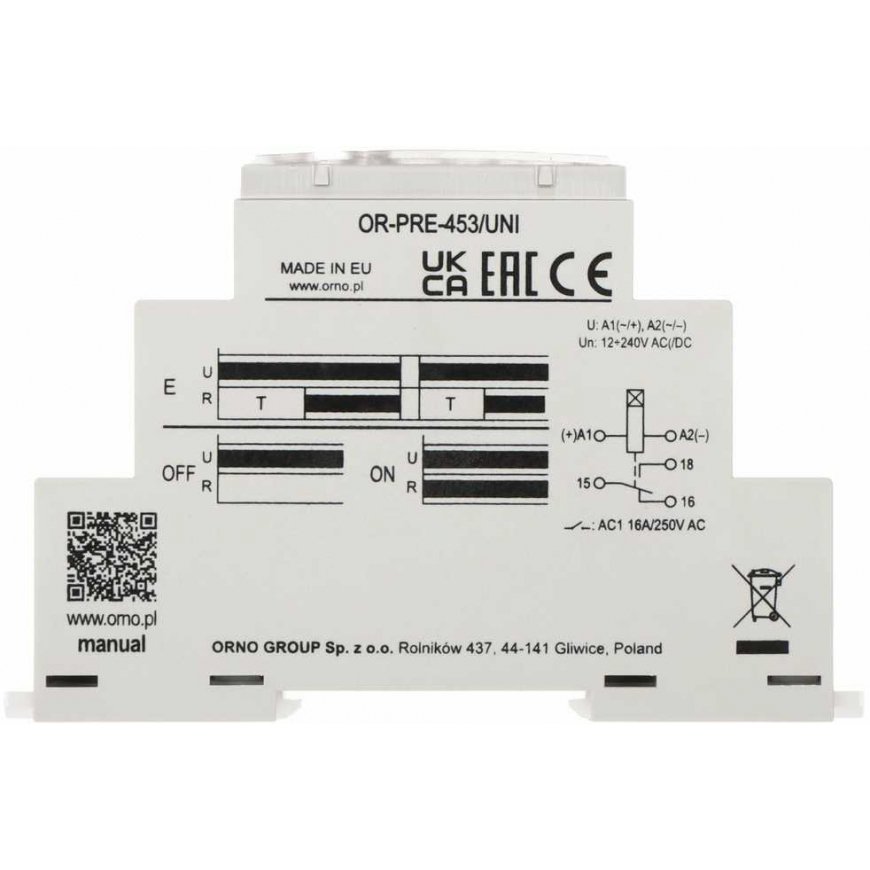

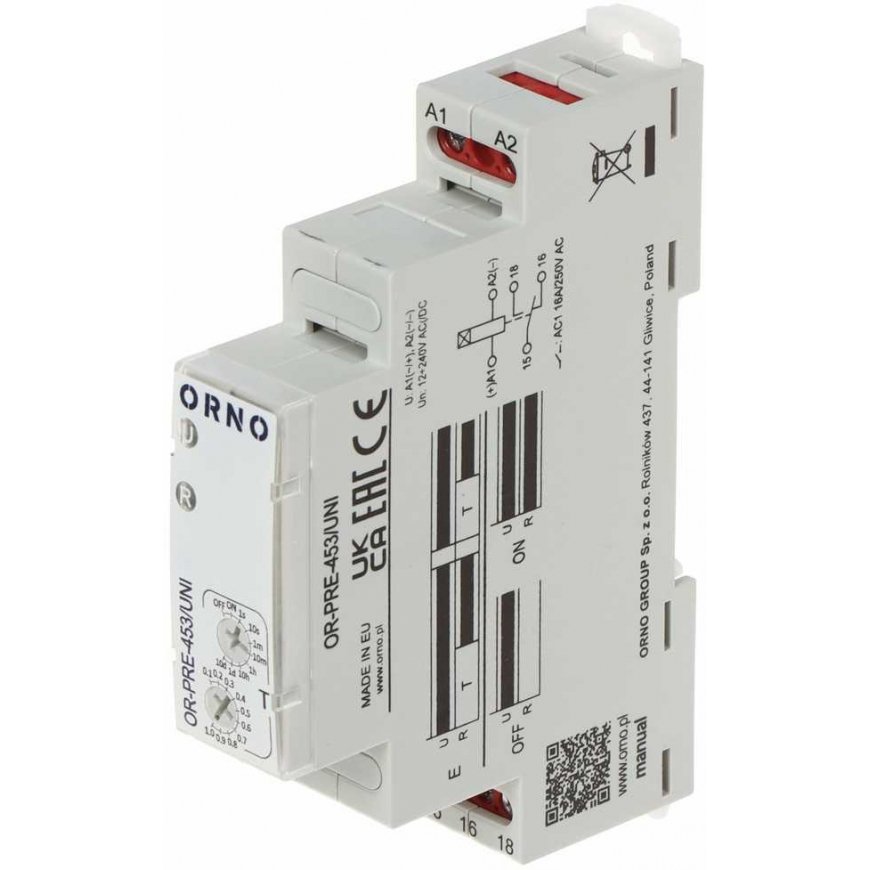

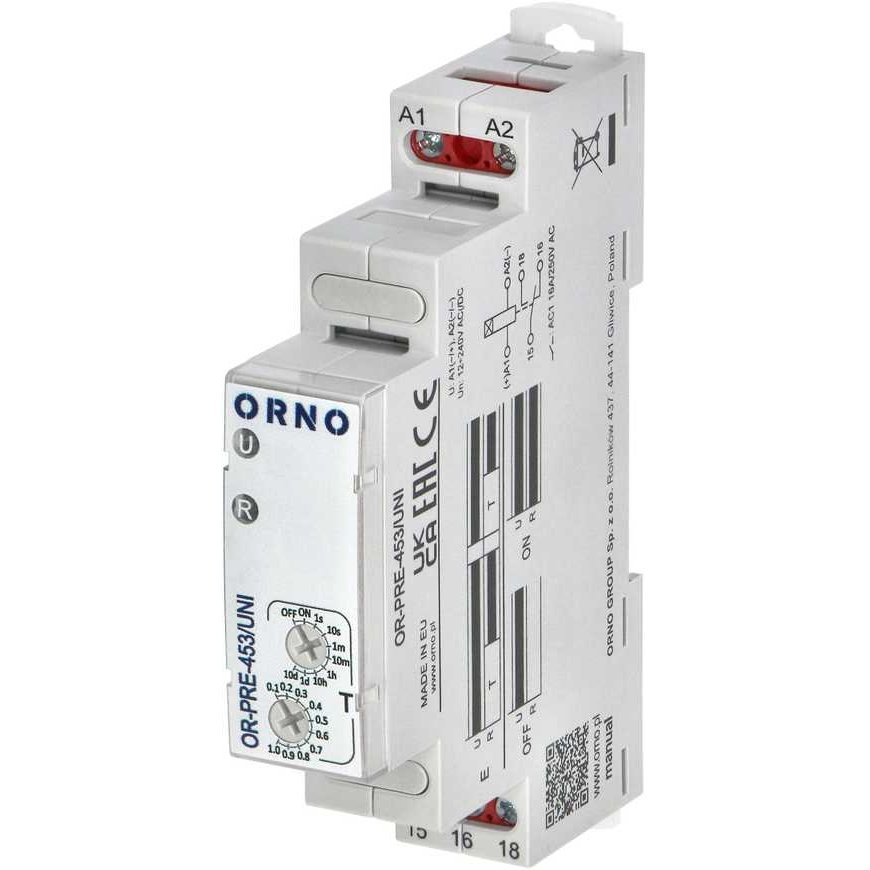

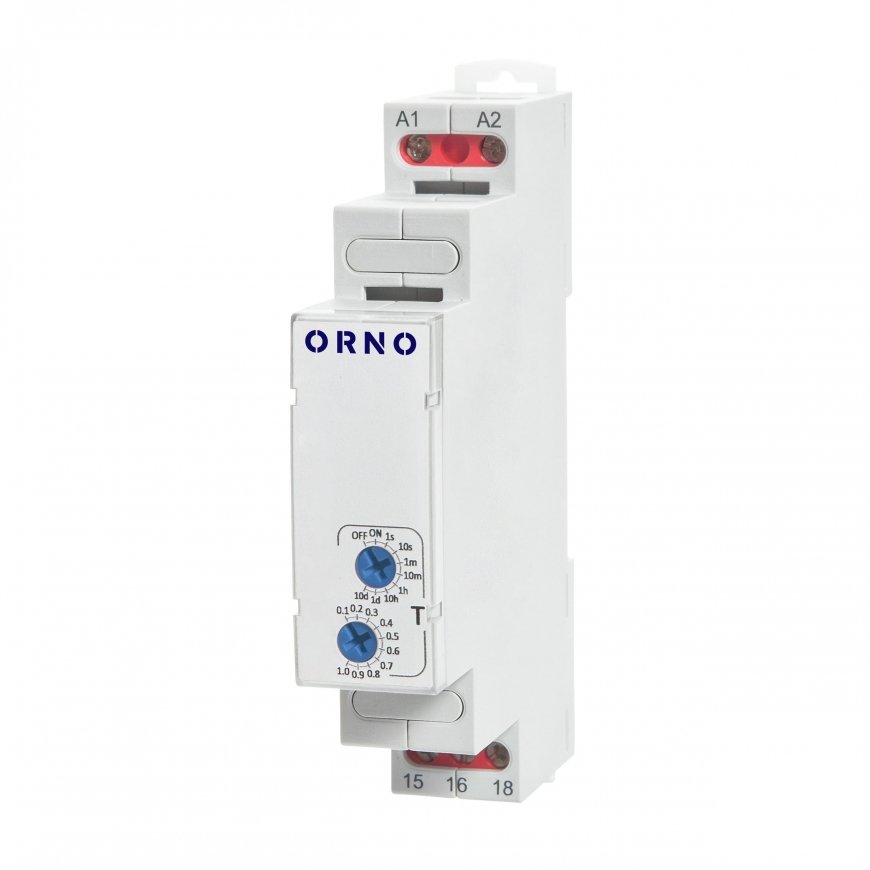

TIME RELAY MODULE OR-PRE-453/UNI ORNO
79,00 €
Kuumakse alates 2.93 €
2712227 OR-PRE-453/UNI
5904988904945
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
The time switch OR-PRE-453/UNI provides power to the equipment at a time set by the user.
Turning on the supply voltage causes the countdown to start immediately. After the set time has elapsed, the relay turns on.
| Number of relay outputs : | 1 |
| Feed : | 12 ... 230 V AC / DC |
| Rated power consumption : | ≤ 1.5 mA (max) |
| Maximum contact load : | 16 A 250 V AC 16 A 24 V DC |
| Output : | 1 x NO/NC |
| Main features : | Smooth switch-on time adjustment Time adjustment range: 1 s / 10 s / 1 m / 10 m / 1 h / 10 h / 1 day / 10 days LED indication mounting on DIN, TS-35 rail |
| Working temperature : | -20 °C ... 50 °C |
| Weight : | 0.064 kg |
| Dimensions : | 90 x 17 x 65 mm |
| Manufacturer / Brand : | ORN |
| Warranty : | 2 years |
