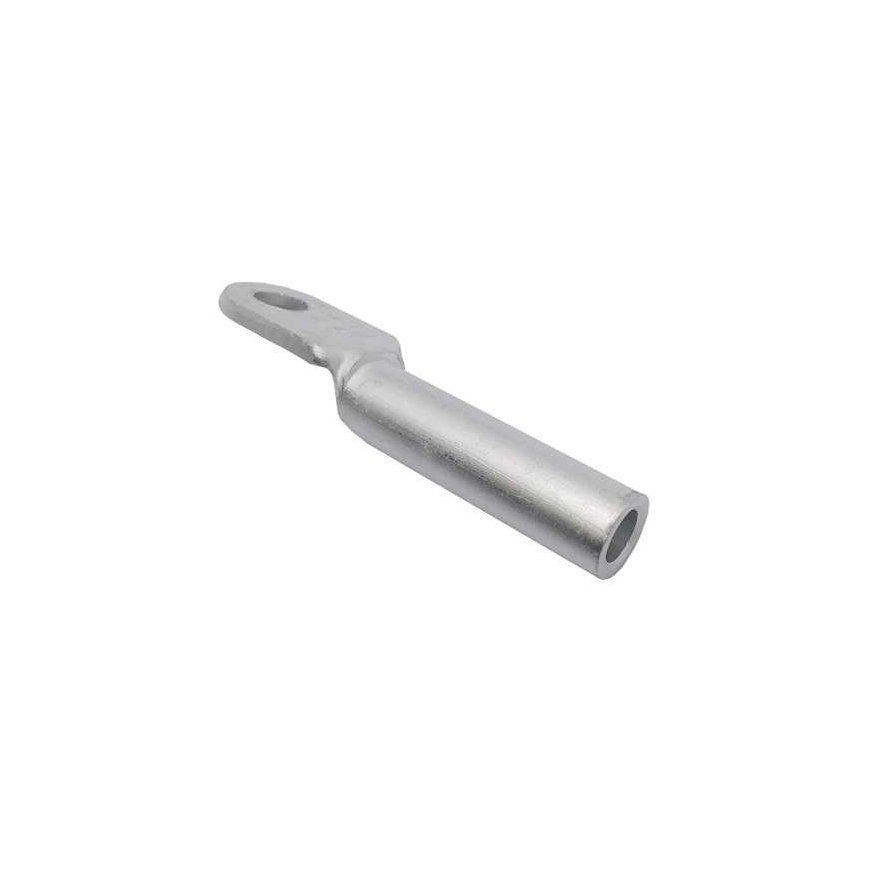

Hismart Pressed loop end, aluminum, for 50mm2 cable, 10 pcs.
14,31 €
2497522 NV822171
9990000822171
Tarneaeg 2-4 t.p.
Kauba vastu huvi?
Features:
Looped aluminum cable lug, crimped.
The solid body prevents moisture from entering.
Chemically treated to reduce contact resistance and corrosion.
Technical data:
Cable cross-sectional area: 50.0mm².
Material: aluminum >/=99.5%.
Surface treatment: no.
Isolated: no.
Connection angle: 180° (horizontal).
Tip length: 90mm.
Tip depth: 40mm.
With inspection cavity: no.
Inner diameter of the tip: 9.7mm.
Outer diameter of the tip: 16mm.
Loop shape: circle.
Loop inner diameter: 10.5mm.
Outer diameter of the loop: 23mm.
The set consists of: 10 pcs.
