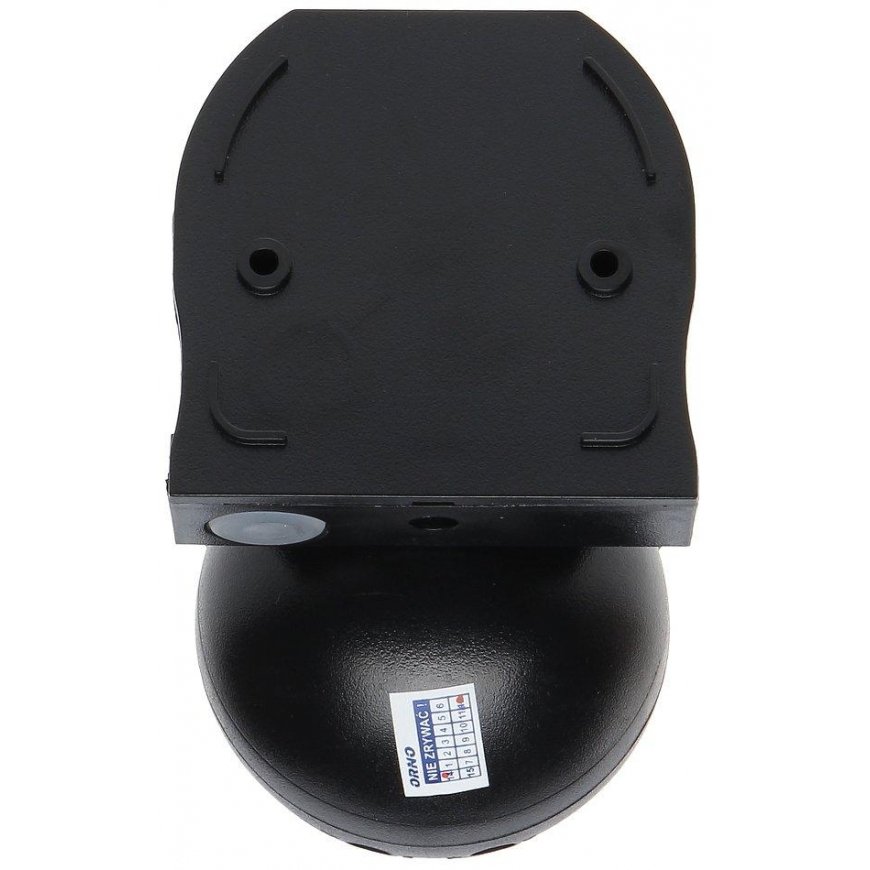

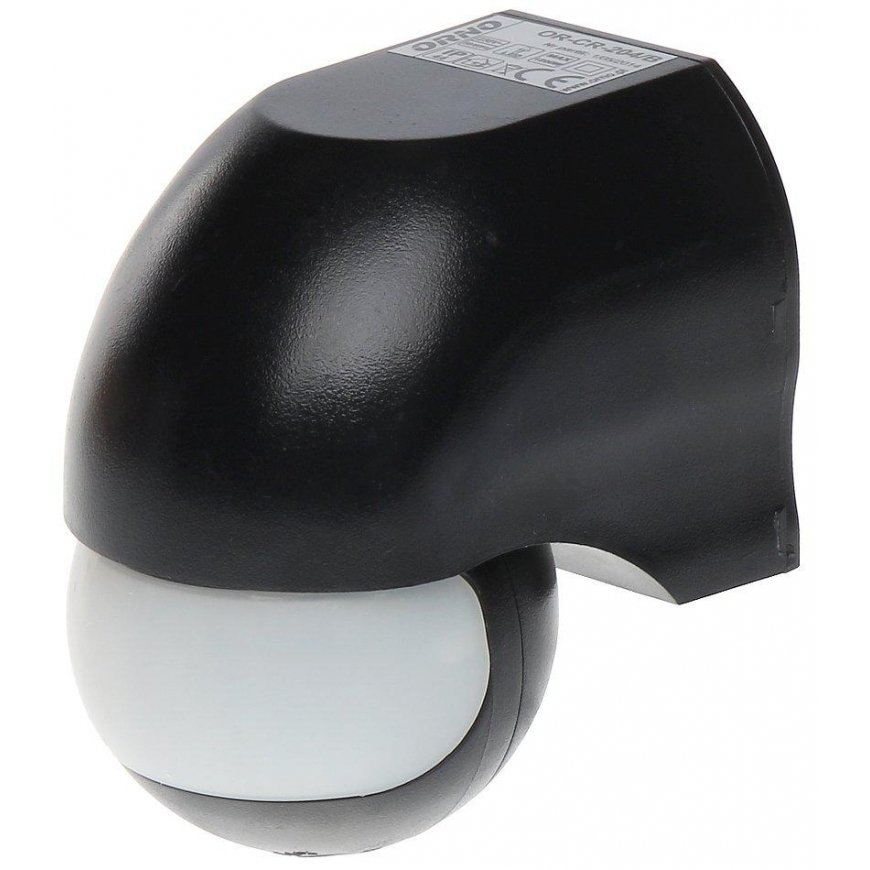

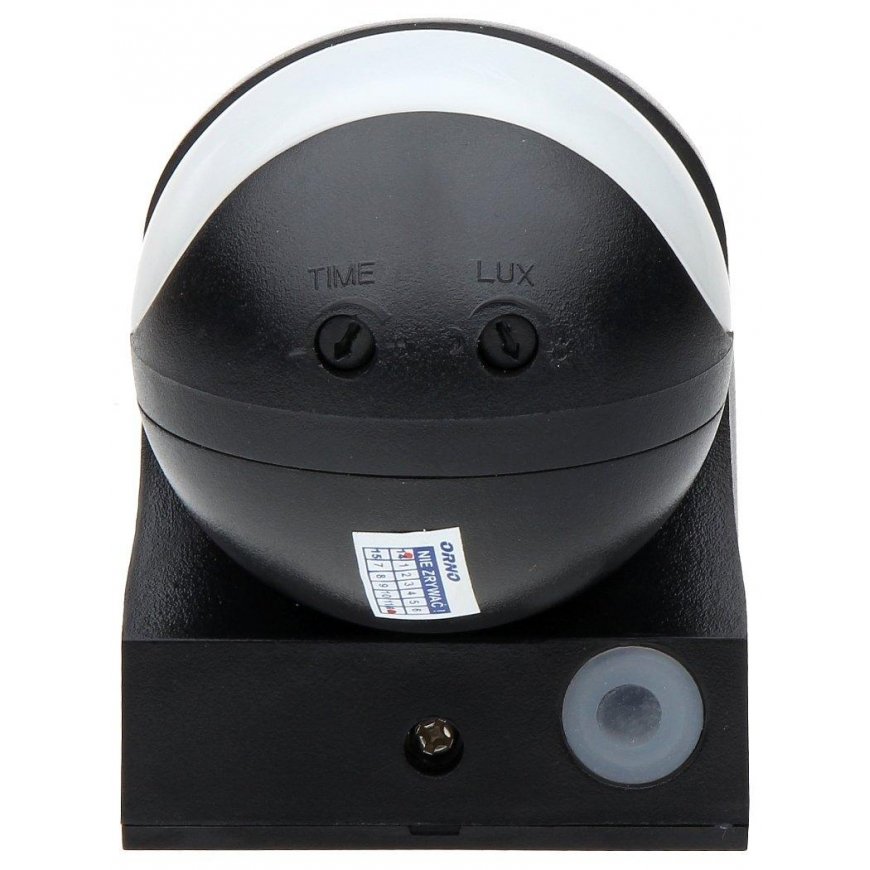

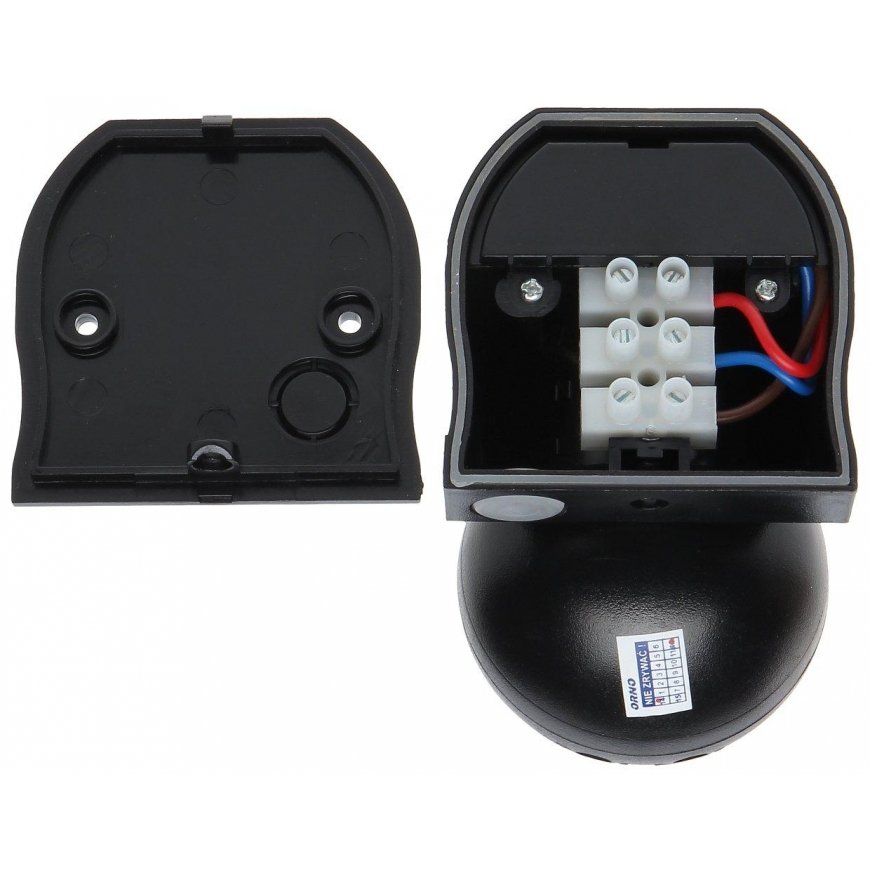

Orno MOTION SENSOR OR-CR-204/B AC 230V
2303000 OR-CR-204/B
5901752481060
Tarneaeg 1-14 t.p.
The detector is intended for automatic control of lighting (or other electrical devices) in the building upon detection of movement near its installation location.
The heart of the device is a passive IR sensor with a motion detection angle of about 180 degrees.
Motion is detected based on the principle of measuring the temperature change in the environment of the visibility sector assigned to the detector, caused by a person there.
When motion is detected by the PIR sensor, the lighting automatically turns on (or another electrical device controlled by the sensor) and remains on until the motion sensor detects presence (movement) in the field of vision.
If no outside presence is detected within the set time (set by the user), the lighting (or other electrical device) will be automatically turned off.
The detector is additionally equipped with a special photo-optical sensor, which, as an option, allows you to save energy without turning on the lighting, for example during the day.
| Sensor type : | Passive IR (PIR) |
| Detection angle : | 180 ° |
| Distance : | 12 m @ 24 °C |
| Usage : | For outdoor conditions |
| Sensitivity adjustment : | 3 ... 2000 Lux (manual adjustment) |
| Recommended installation height : | 1.8 ... 2.5 m above the floor (fixing to the wall) |
| Bracket adjustment : | 35 ° vertical 70 ° horizontally |
| Violation alarm time : | 10 s ... 7 minutes |
| Maximum output load : | 1200 W (resistive load) |
| Resistance to animals : | - |
| Color : | Black |
| Meals : | 220V ... 240V AC @ 50Hz |
| Weight : | 0.160 kg |
| Dimensions : | 84 x 91 x 63 mm |
| Manufacturer / Brand : | ORN |
| Warranty : | 2 years |
