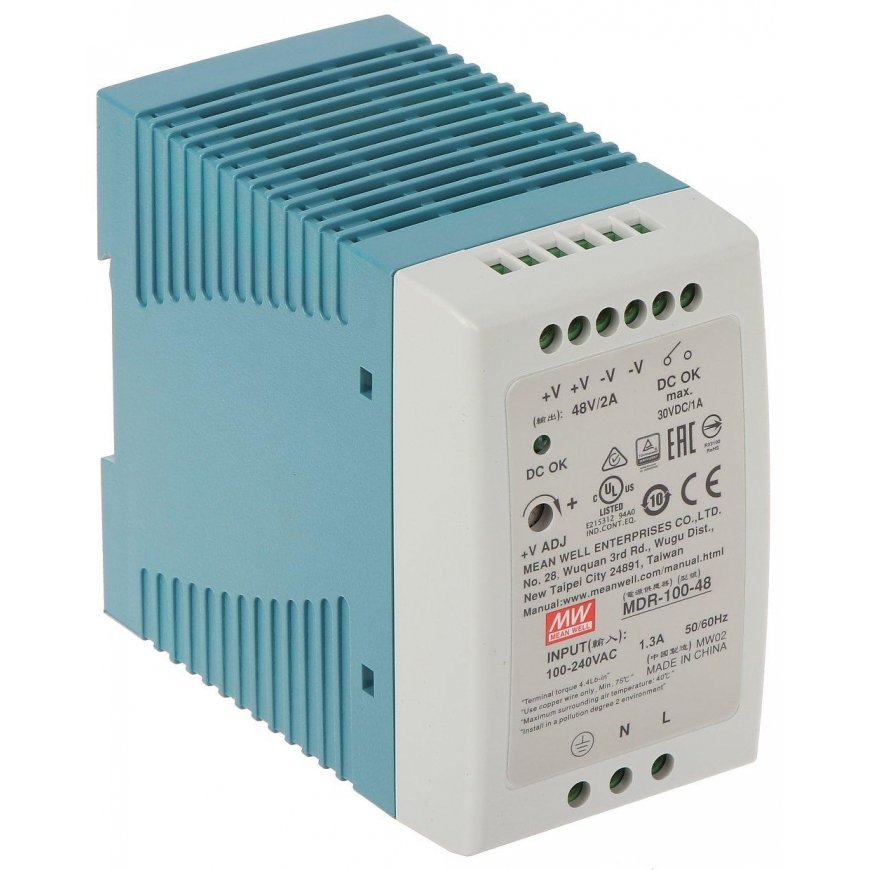

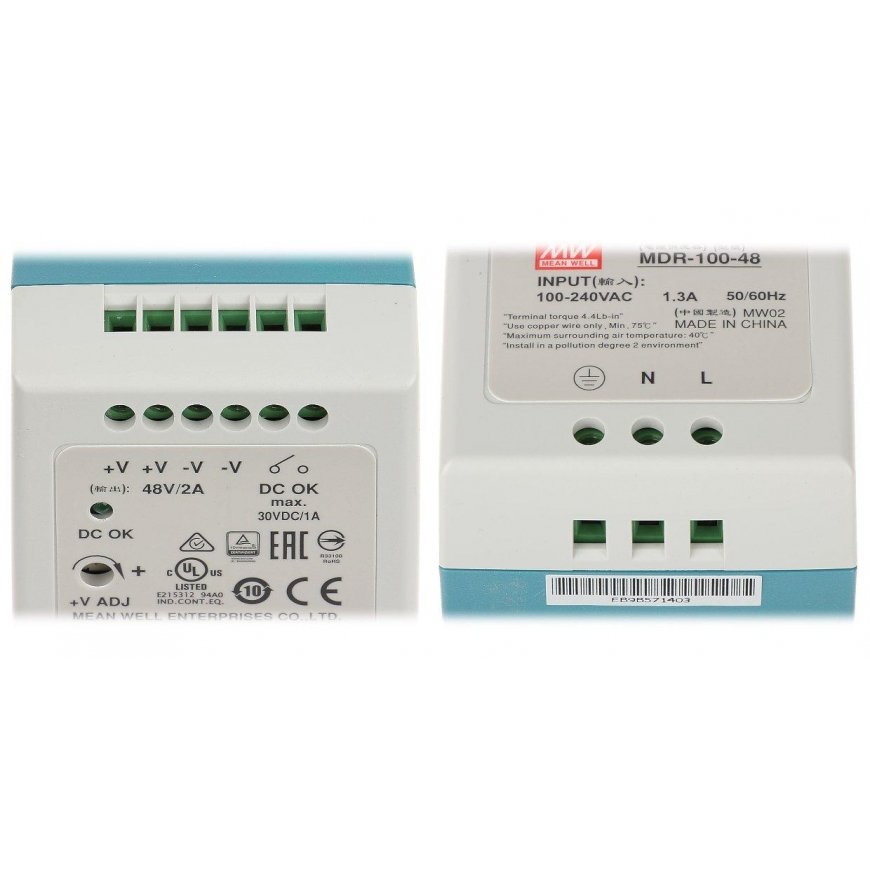

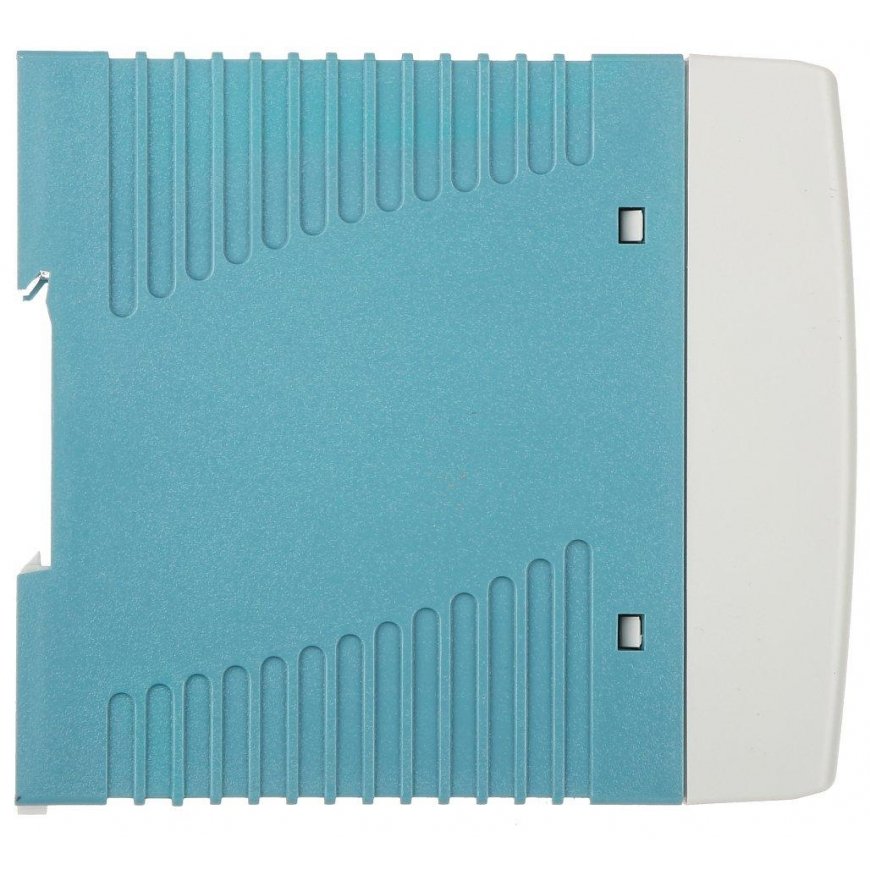

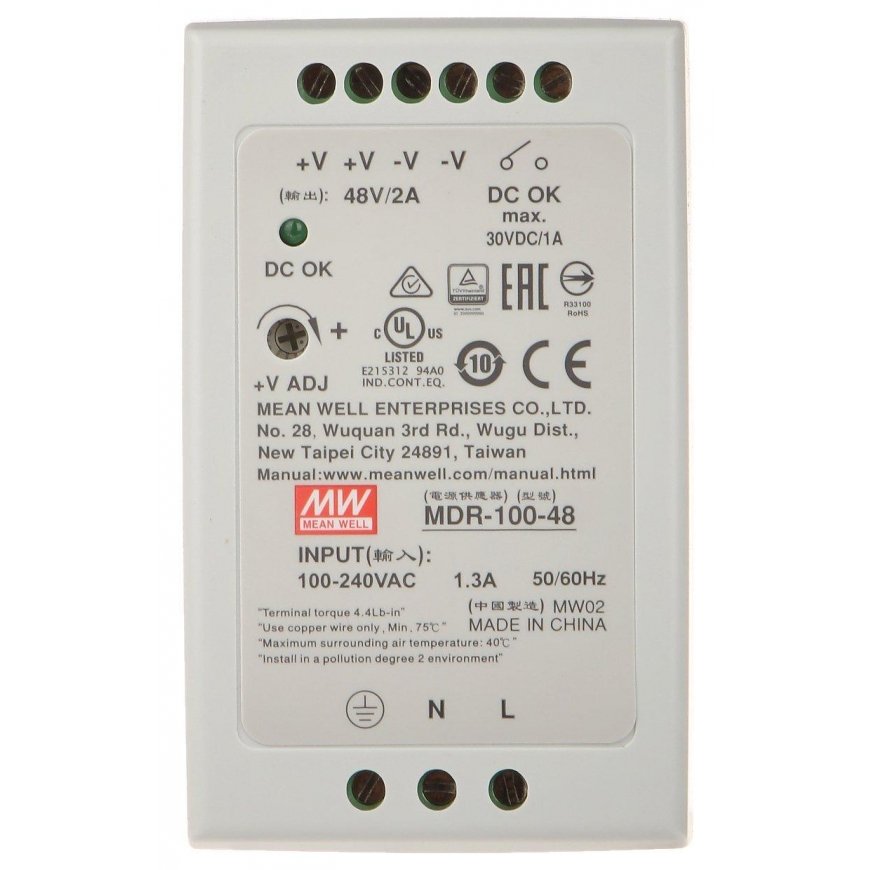

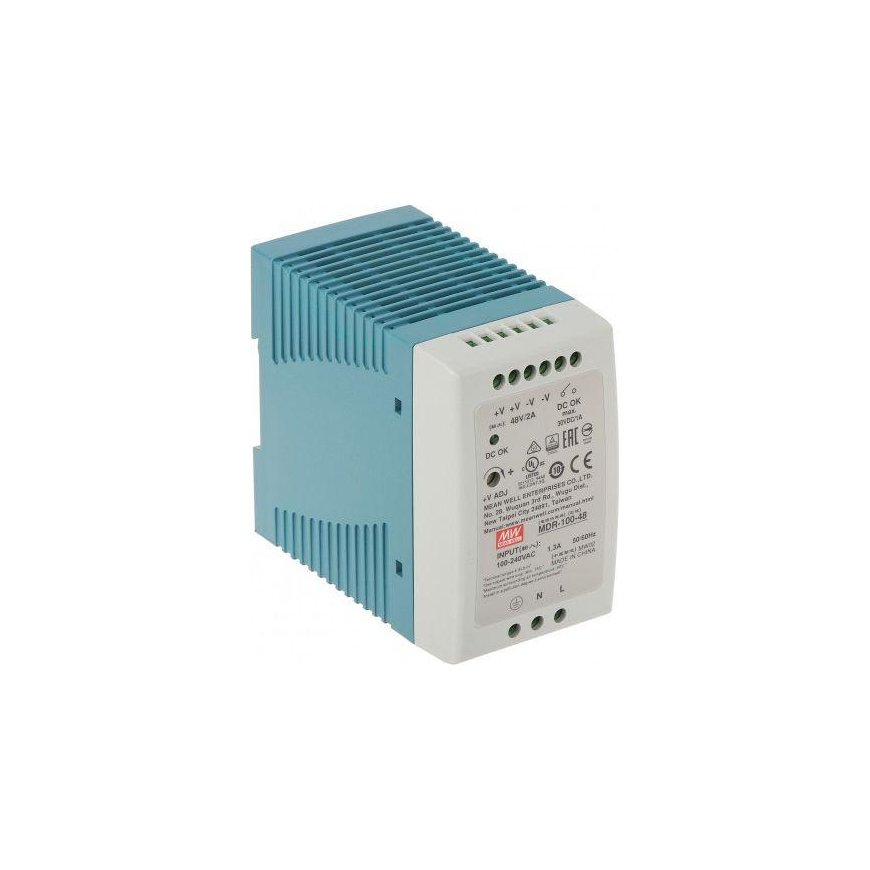

IMPULSE POWER SUPPLY MDR-100-48 MEAN WELL
79,00 €
Kuumakse alates 2.93 €
2284813 5901643194611
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
Impulse power supply, installed on TS35/7.5 or 15 DIN rail.
| Power supply type : | Impulsive |
| Supply voltage : | 85 ... 264 V AC / 120 ... 370 V DC |
| Output voltage : | 48 V DC |
| Output voltage regulation : | 48 ... 56 V |
| Voltage tolerance : | ± 1% |
| Power supply current capacity : | 2 A |
| Power supply : | 96 W |
| Number of outputs : | 2 pcs. |
| Efficiency : | 87% |
| Body Type : | DIN |
| MTBF (mean time between failures) : | min. 346000 hours |
| Vibration resistance : | IEC60068-2-6, 10 ... 500 Hz max. 2 G |
| Protective measures : | From short circuit From overvoltage Protection from overcurrent |
| Operating temperature / relative humidity : | -10 °C ... 60 °C / 20 % ... 90 % |
| Weight : | 0.4 kg |
| Dimensions : | 55 x 100 x 90 mm |
| Manufacturer / Brand : | MEAN WELL |
| Warranty : | 3 years |
