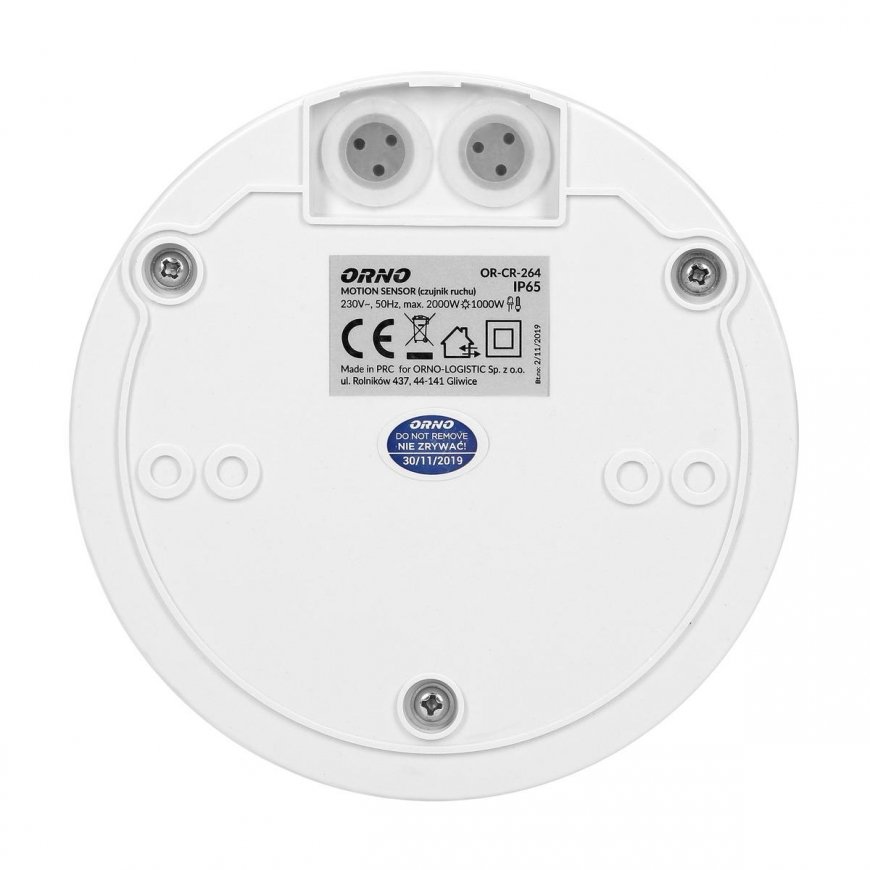

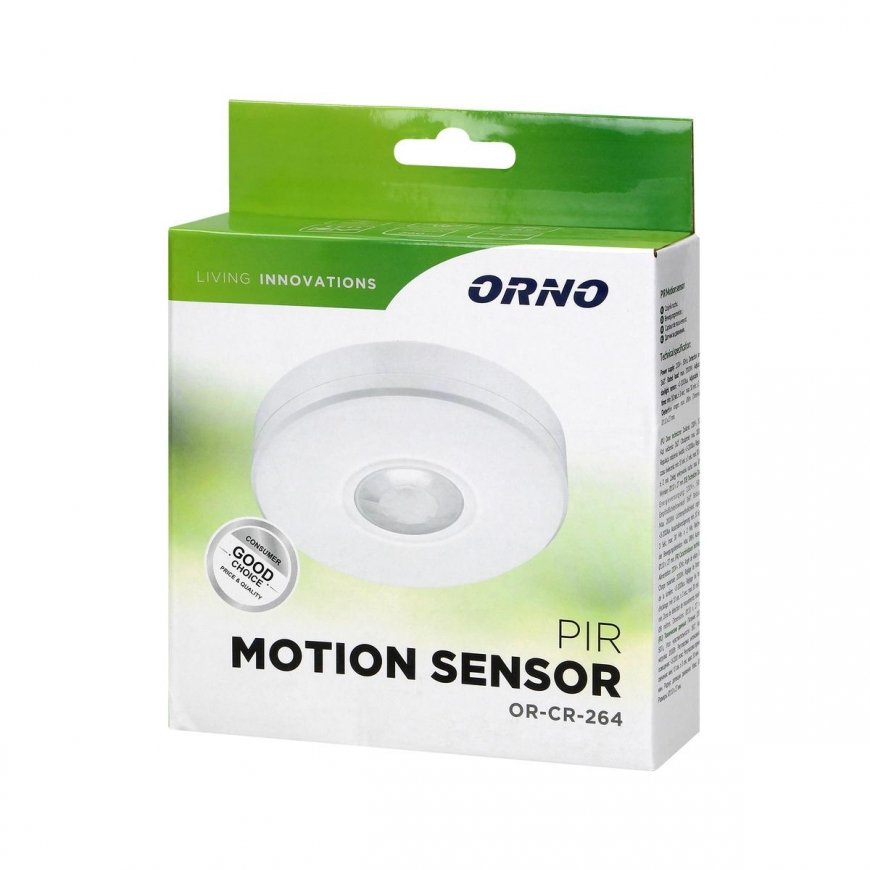

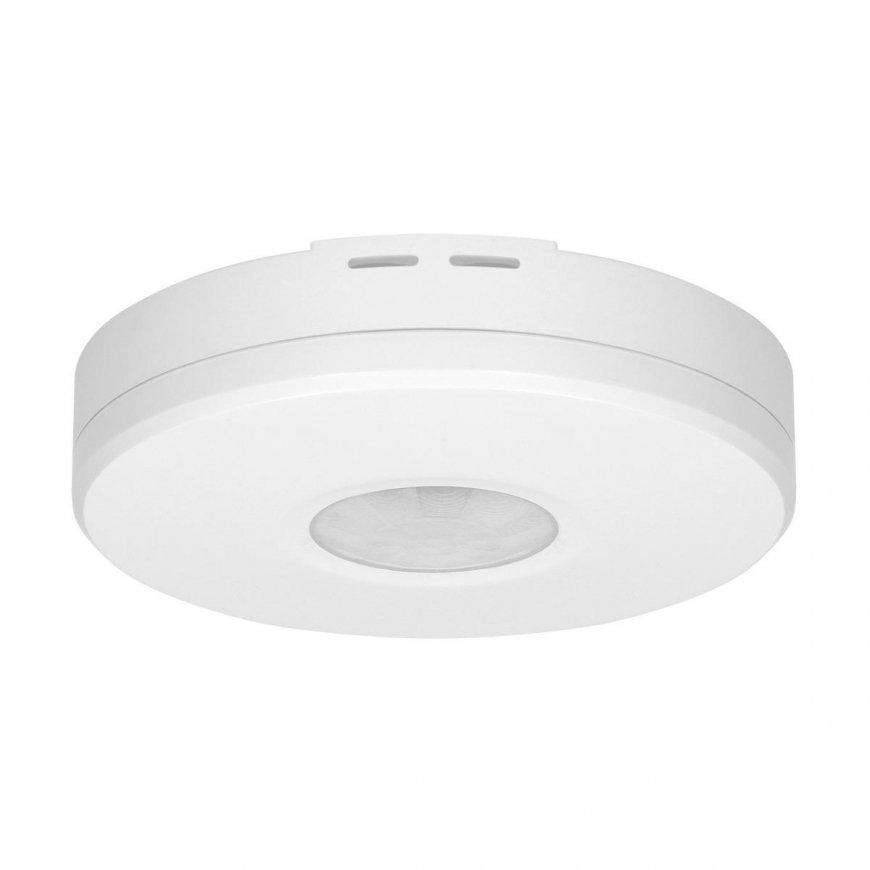

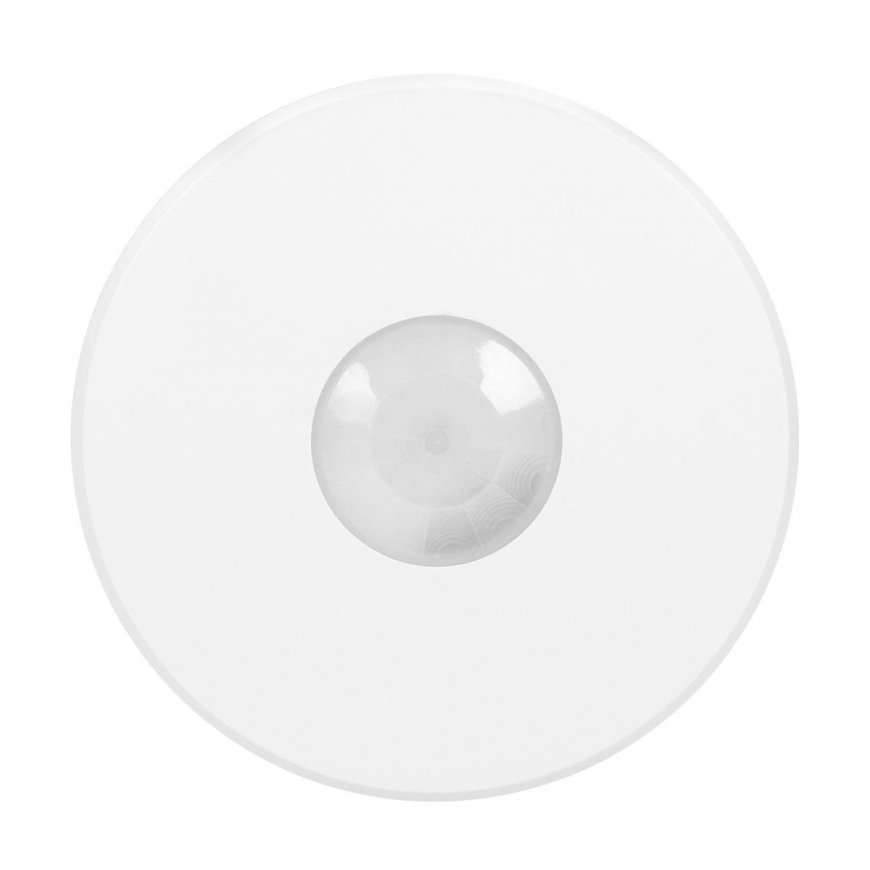

CEILING MOTION SENSOR OR-CR-264 AC 230V ORNO
2103797 OR-CR-264
5900378654780
Tarneaeg 1-14 t.p.
Passive infrared sensor for ceiling mounting.
The detector is intended for the automatic control of the building's lighting (or other electrical devices) upon detection of movement near its installation location.
The heart of the device is a passive IR sensor with a motion detection angle of about 360 degrees.
Movement is detected based on the principle of measuring the temperature change in the environment of the visibility sector assigned to the detector, caused by a person there.
When motion is detected by the PIR sensor, the lighting automatically turns on (or another electrical device controlled by the sensor) and remains on until the motion sensor detects presence (movement) in the field of vision.
If no outside presence is detected within the set time (set by the user), the lighting (or other electrical device) will be automatically turned off.
The detector is additionally equipped with a special photo-optical sensor, which, as an option, allows you to save energy without turning on the lighting, for example during the day.
| Sensor type : | Passive IR (PIR) |
| Detection angle : | 360 ° |
| Distance : | max. 8 years |
| Usage : | For indoor use |
| Sensitivity adjustment : | 3 ... 2000 Lux (manual adjustment) |
| Recommended installation height : | 2.2 ... 4 m (fixing to the ceiling) |
| Violation alarm time : | 10 s ... 15 minutes |
| Maximum output load : | 2000 W |
| Resistance to animals : | - |
| Power consumption : | 0.5W |
| Color : | White |
| Main features : | IP65 Cooperation with LED lighting |
| Meals : | 230V AC @ 50Hz |
| Weight : | 0.13 kg |
| Dimensions : | Ø 110 x 27 mm |
| Manufacturer / Brand : | ORN |
| Warranty : | 2 years |
