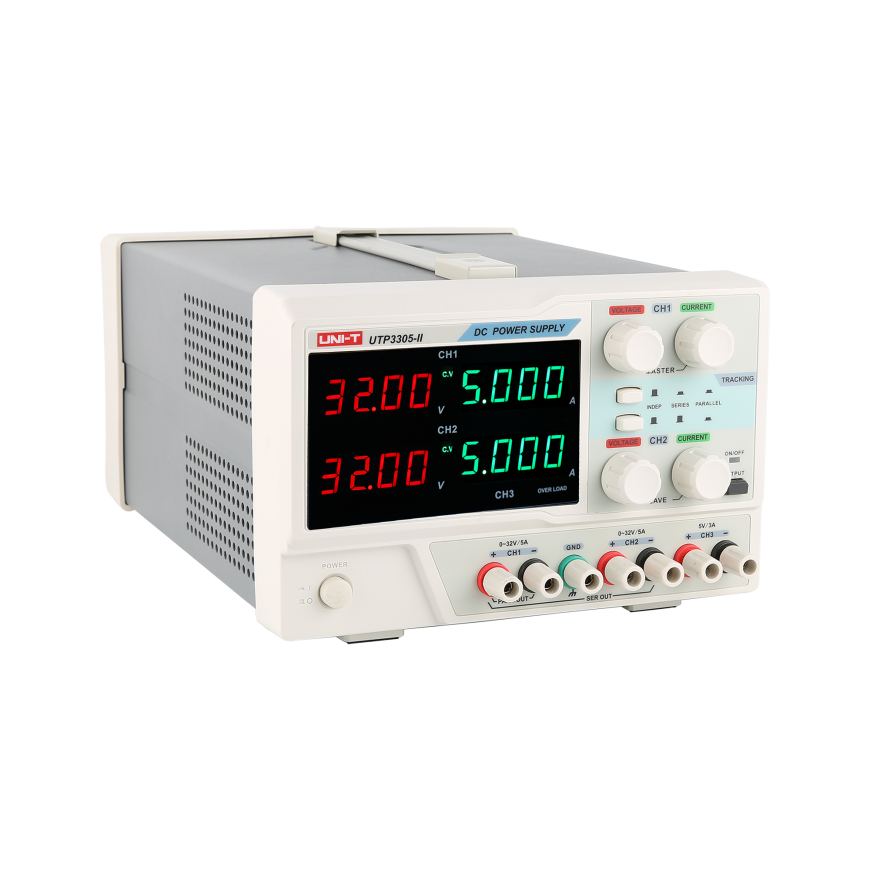

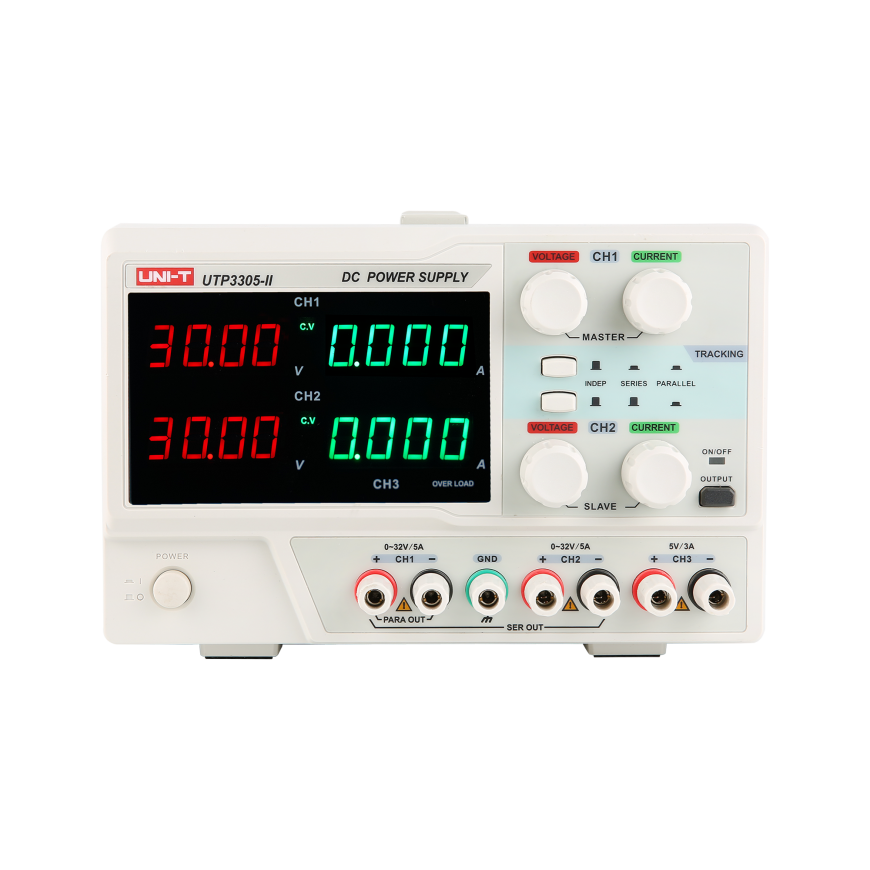

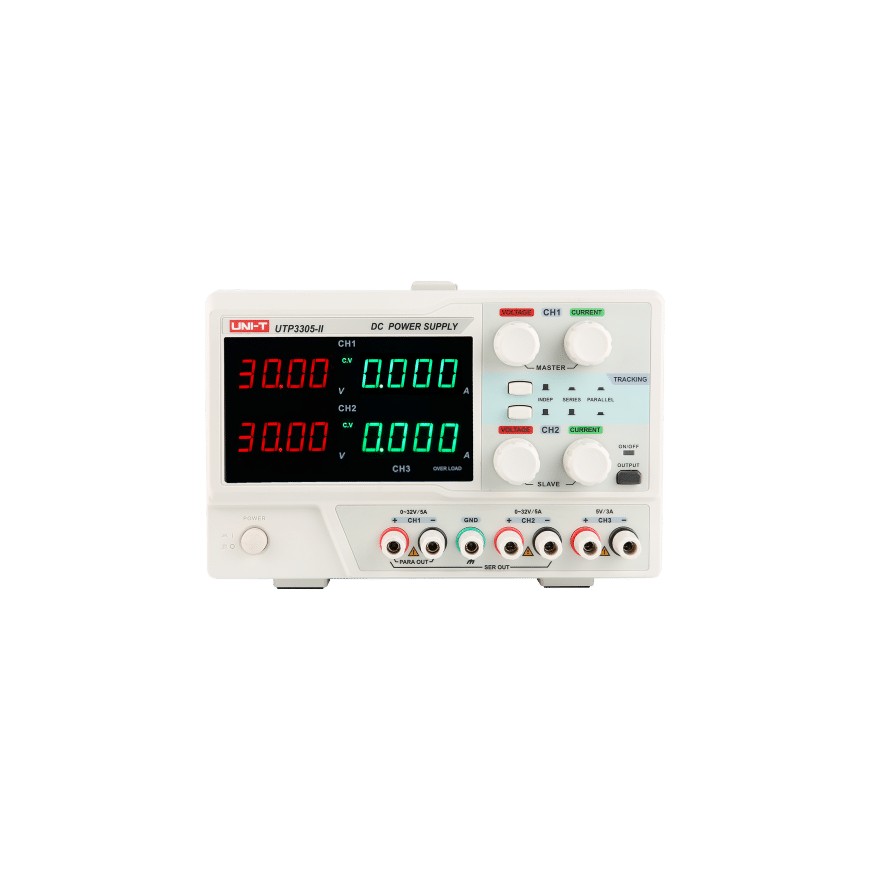

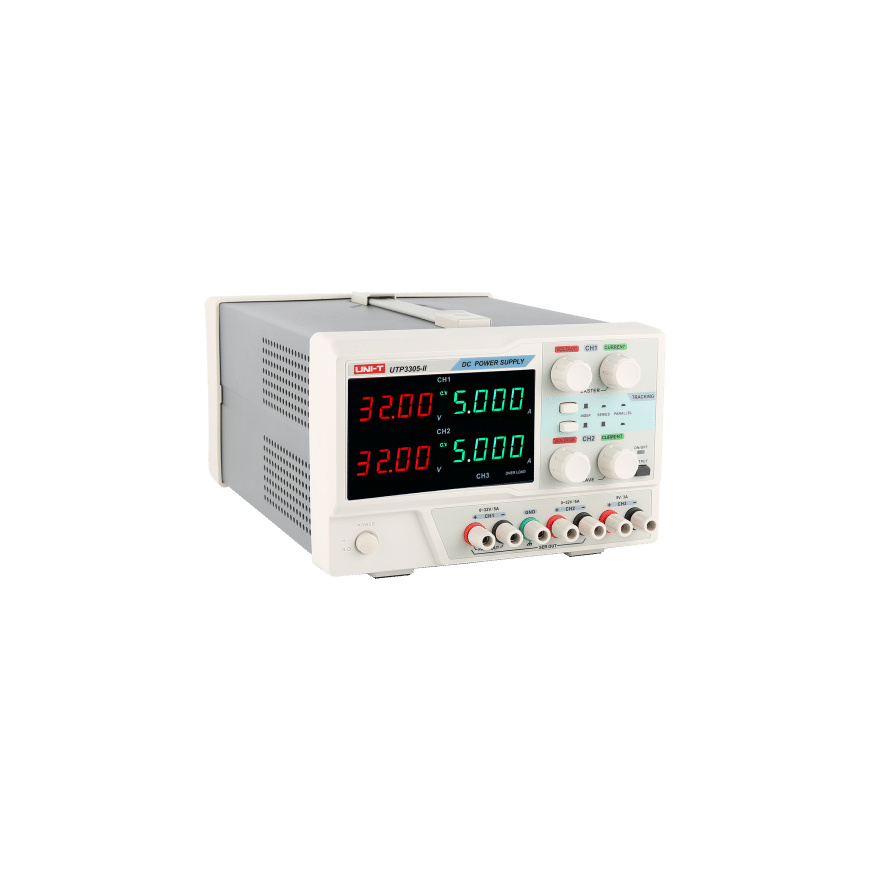

Laboratory power supply Uni-T UTP3305-II
279,00 €
Kuumakse alates 8.08 €
1825807 MIE0445
5901890074759
2026-07-29
Kauba vastu huvi?
Programmable laboratory power supply, allowing to adjust the voltage from 0V to 32V
Specification:
- Channel 1 / Channel 2
- Output voltage: 0~32V
- Output current: 0~5A
- Output power: 335W
- Stabilization:
- • Output voltage: <0.01% + 3 mV
- • Output current: <0.2% + 3 mA
- Regulation linearity:
- • Output voltage: <0.01% + 3 mV
- • Output current: <0.1% + 3 mA
- Resolution:
- • Output voltage: 10 mV
- • Output current: 1 mA
- Measurement accuracy (25oC ± 5oC):
- • Output voltage: <0.1% + 30 mV
- • Output current: <0.3% + 5 mA
- Voltage rise delay: = <100ms (10% of setpoint)
- Output voltage temperature coefficient: <= 150ppm
- Output temperature coefficient: <= 150ppm
- Channel 3 (auxiliary)
- Output voltage: 5V
- Output current: 3A

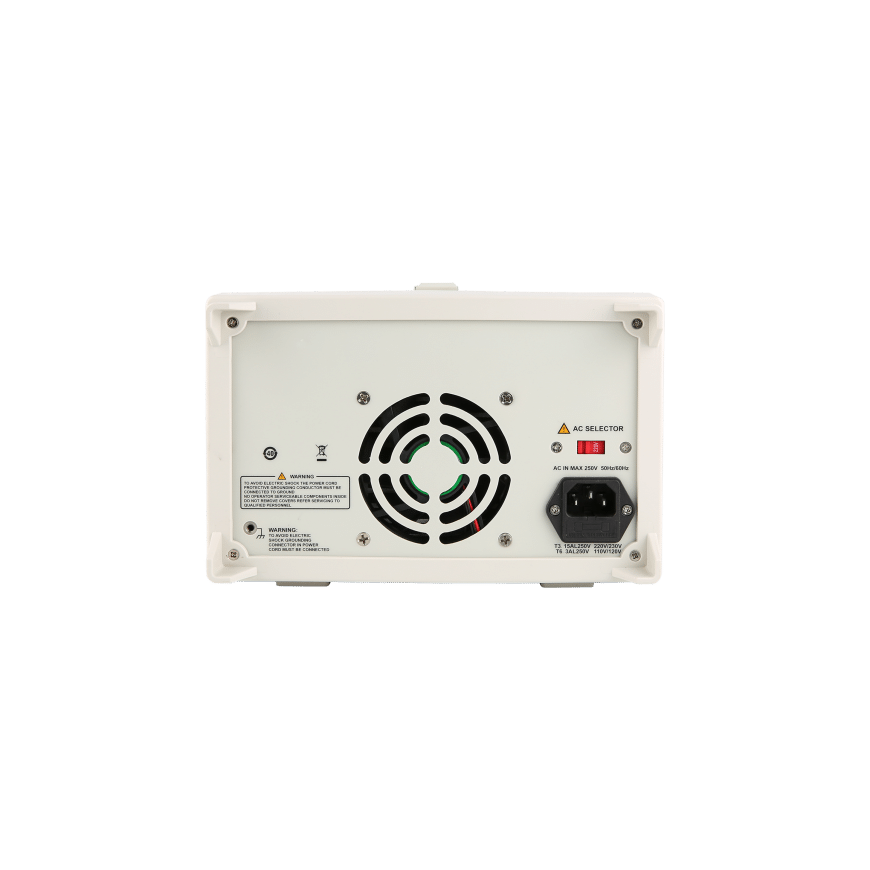

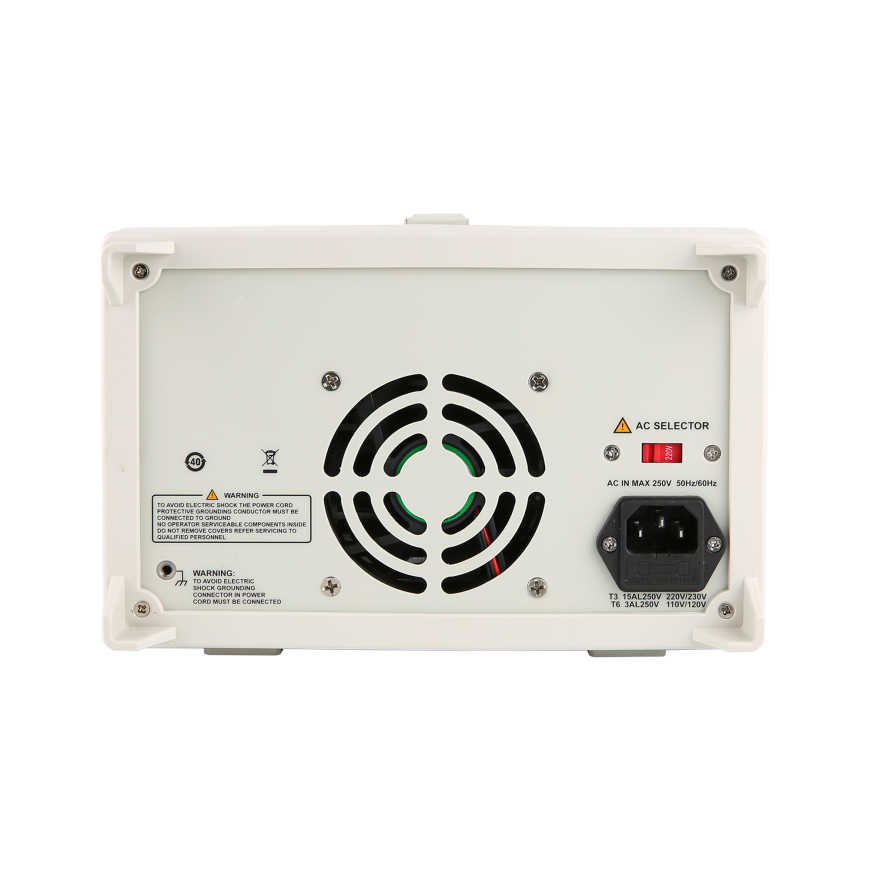

- Power supply: AC 100V / 120V / 220V / 230V
- Display: Four LED display
- Dimensions: 319x146x226mm
- Weight: 9.2kg
