Avaleht Shelly Relay "Pro 2PM" WLAN-i ja LAN-i lülitusajam Max. 25A BT

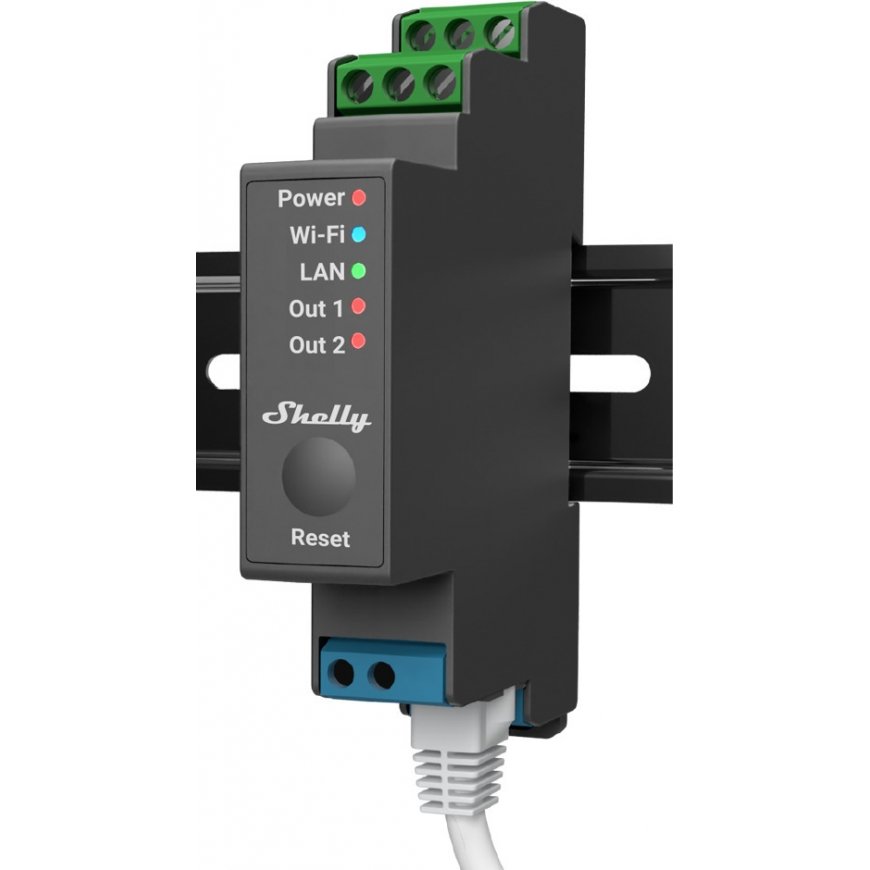

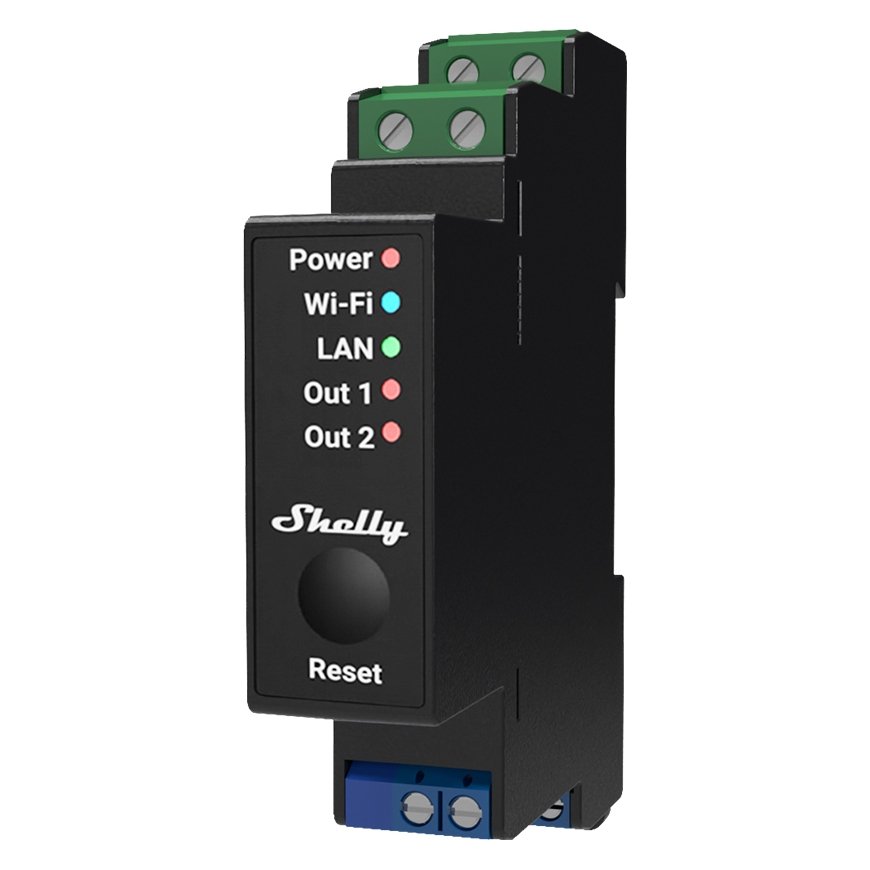

Shelly Pro 2PM is a 2-phase Wi-Fi relay equipped with energy consumption measurement, which supports a maximum load of 25 A (16 A / channel). The relay is installed directly on the DIN rail and you can use it to control e.g. lights, home electrical appliances, irrigation system, swimming pool system and heaters. Shelly Pro 2PM works either locally on a Wi-Fi network or it can be connected to a cloud service. By connecting the Shelly Pro 2PM to the internet via Wi-Fi, it enables the device to be controlled from anywhere. Through the built-in web interface, you can monitor and manage the device and adjust its settings.

Features:

• LAN, Wi-Fi and Bluetooth connections
• No need for a separate central unit
• LED light indicator
• Installation on a DIN rail
• Fire protection frame (V-0) with internal overheating protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud App - Android and iOS support
• Smartthings support

Technical features:

• Model: Shelly Pro 2PM
• Rated voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 25 A (16 A / channel)
• Power consumption: < 3 W
• Number of channels: 2
• Operating temperature: -20ºC ... +40ºC
• Power consumption measurement: yes
• Overheat protection: yes
• Overload protection: yes
• Works without a neutral wire: no
• MQTT and WSS support
• Bluetooth: yes
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Wi-Fi operating frequency: 2412 - 2484 MHz
• Wi-Fi transmission power: 13.34 dBm
• Wi-Fi radio signal strength: 1 mW
• Wi-Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
